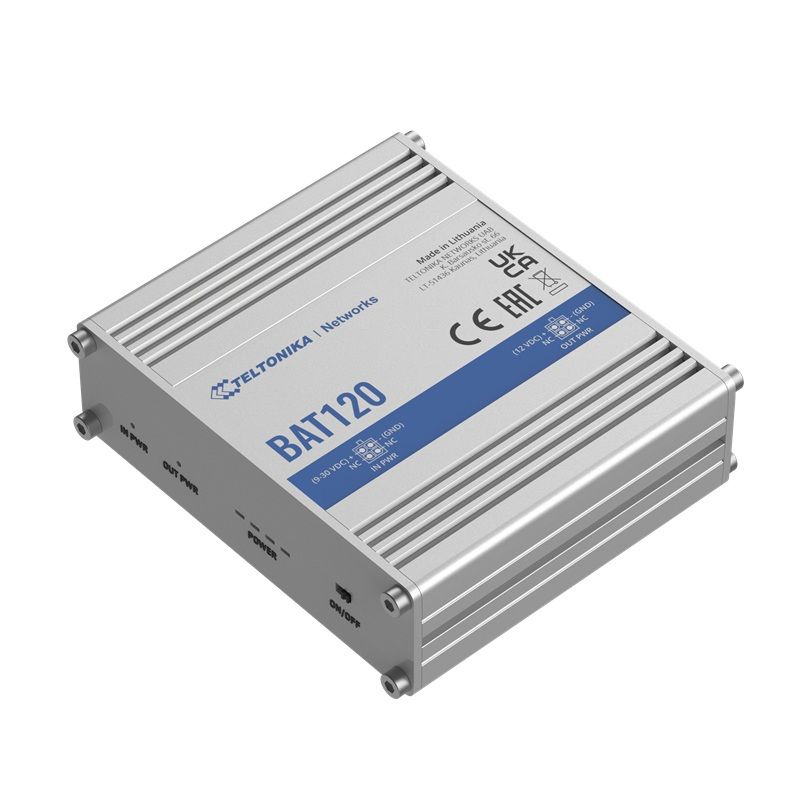

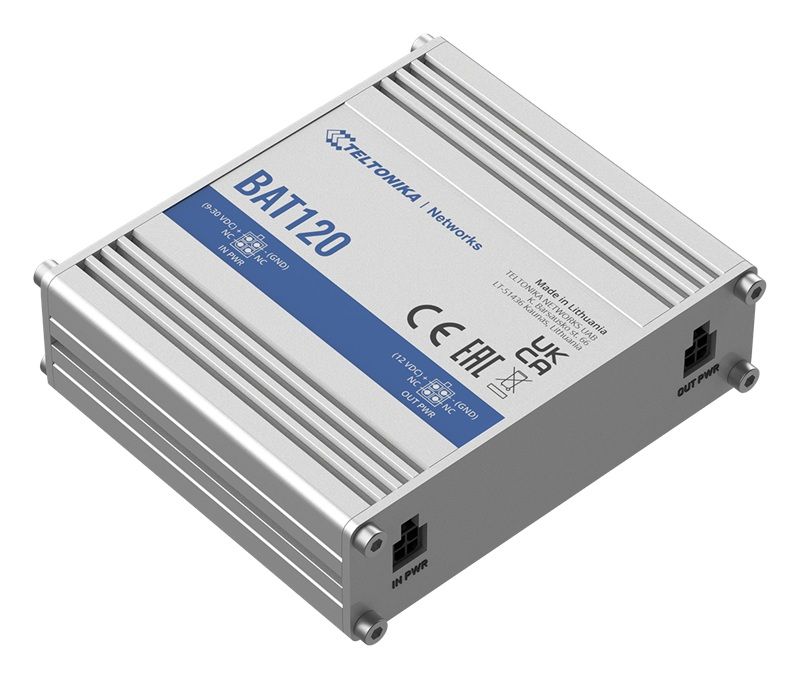

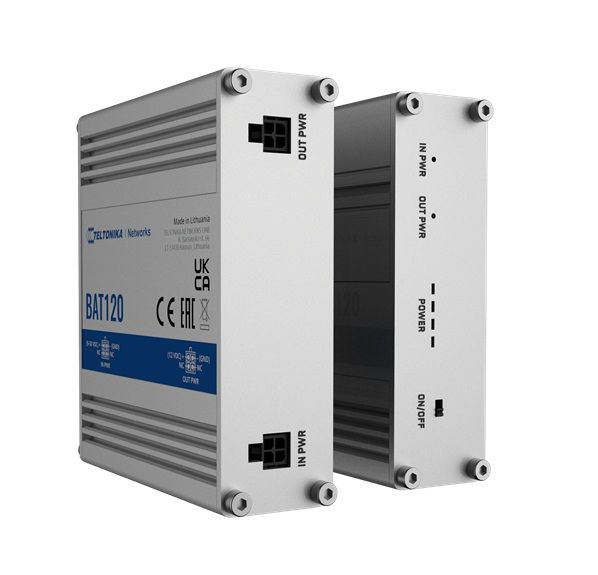

Teltonika BAT120 is a very compact and lightweight UPS (uninterruptible power supply). The BAT120 ensures that your Teltonika devices remain operational even during a power outage. Despite its very small size, the BAT120 backup power supply can keep Teltonika network devices running for up to 6 hours.

Features

• Compact size
• UPS for Teltonika products such as routers, gateways, etc.
• Option to mount on a DIN rail
• Powers Teltonika network devices for up to 6 hours
• Compatible models: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Specifications

• Battery capacity: 2300 mAh 17 Wh
• Output voltage (passthrough mode): 9 - 30 VDC
• Output voltage (battery mode): 12 VDC
• Max output current: 22 W/1.8 A
• Device battery charging current max.: 4 W/300 mA
• Input voltage: 9 - 30 VDC
• Protection (output): 3A overvoltage protection
• Protection (input): Reverse polarity, overvoltage
• Power connector: 4-pin industrial DC power connector
• Battery: 2 x 18650 Li-Ion
• Alarm: 1 x Active HIGH output, max. output 12 V, 2.5 mA
• LEDs: 1 x power in, 1 x power out, 4 x power status
• Aluminum enclosure
• Operating temperature: 0 °C ... 45 °C
• Dimensions: 100 x 30 x 85 mm
• Weight: 315 g
