Description

• TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount.
• Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.

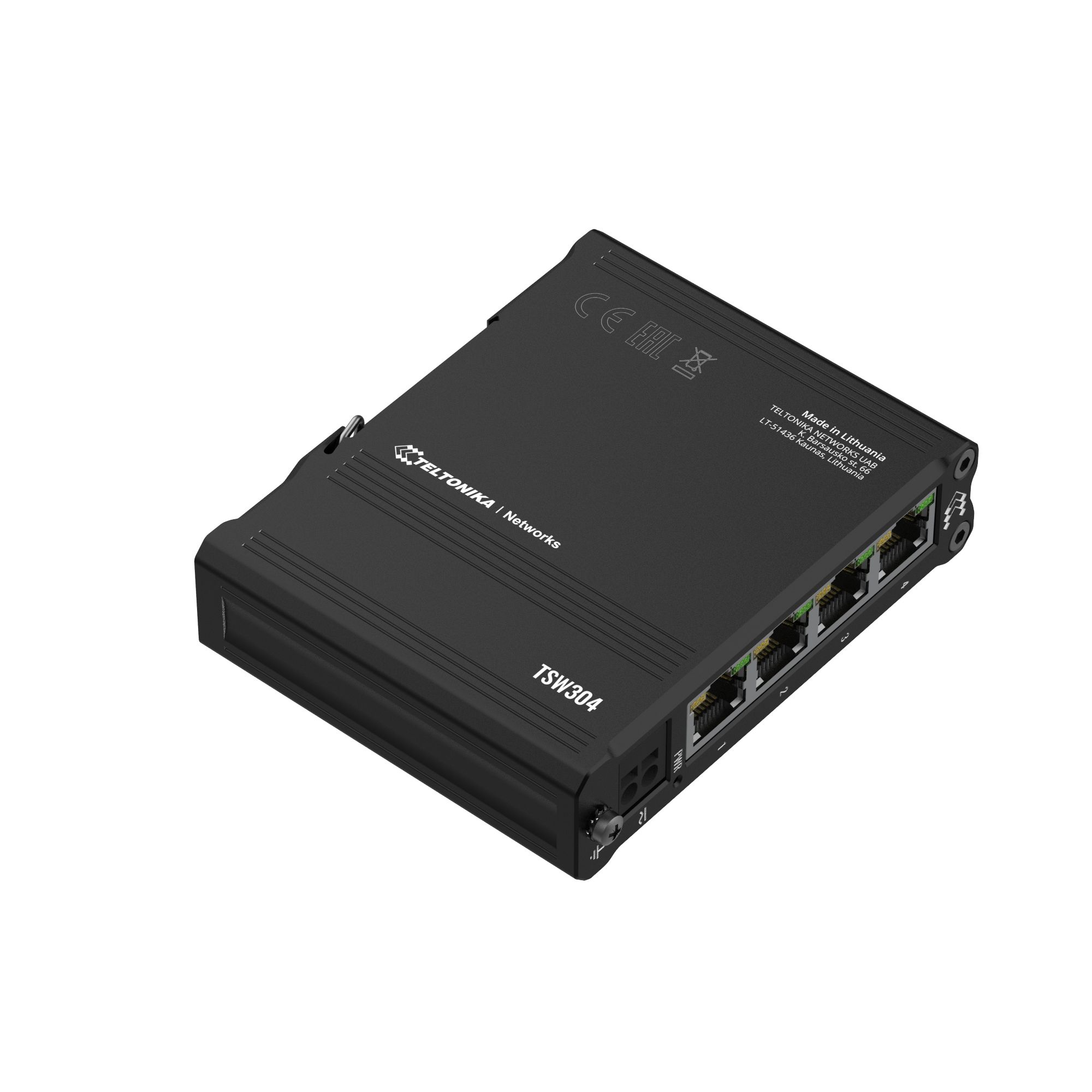

• Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
• 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput. 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).

Key features

• Compact size – The tiniest switch in the Teltonika networking portfolio

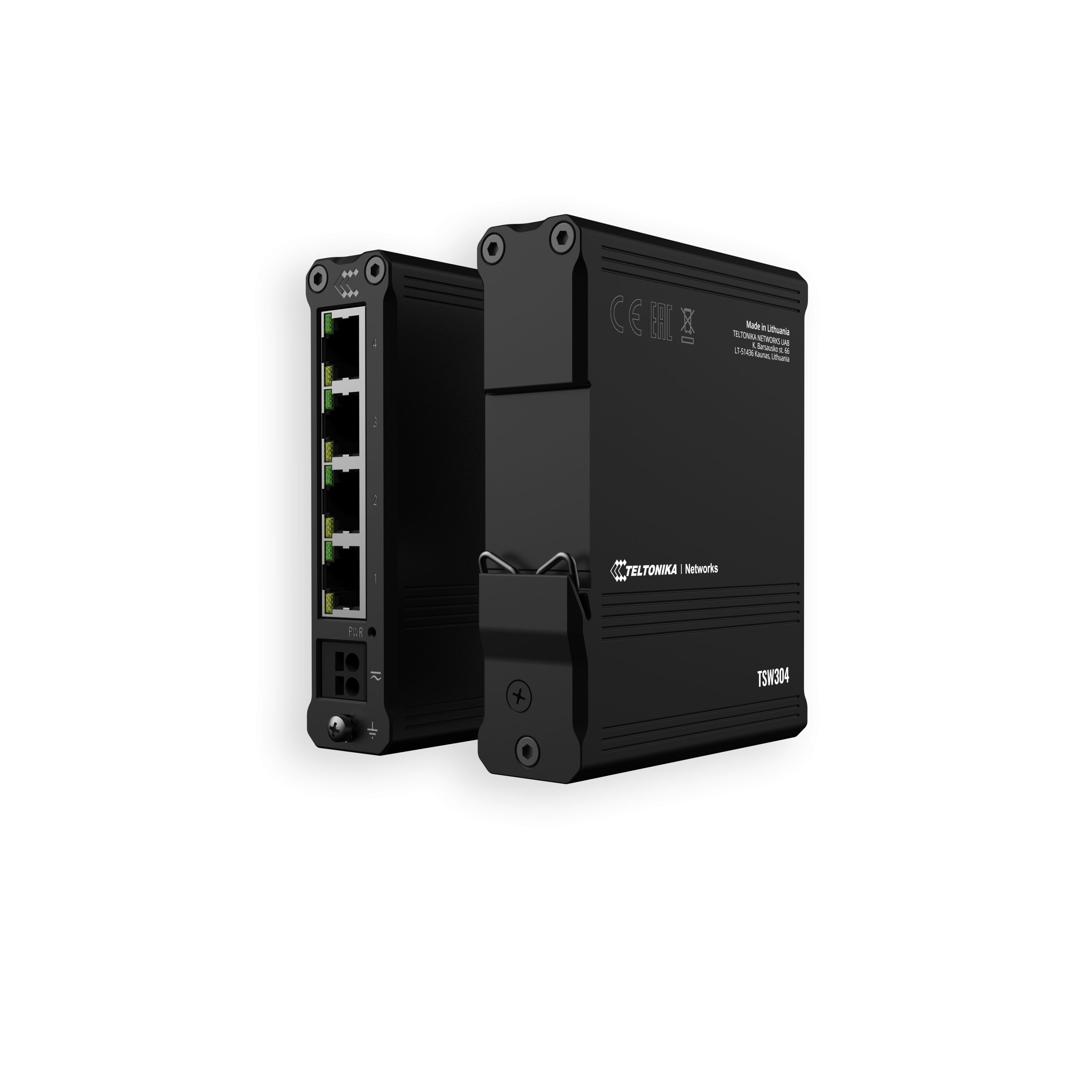

• Mounting – Integrated DIN rail enclosures and wall mount brackets
• 7-57 V – Extended range of supported power supply voltages
• Durability – Rugged aluminium housing

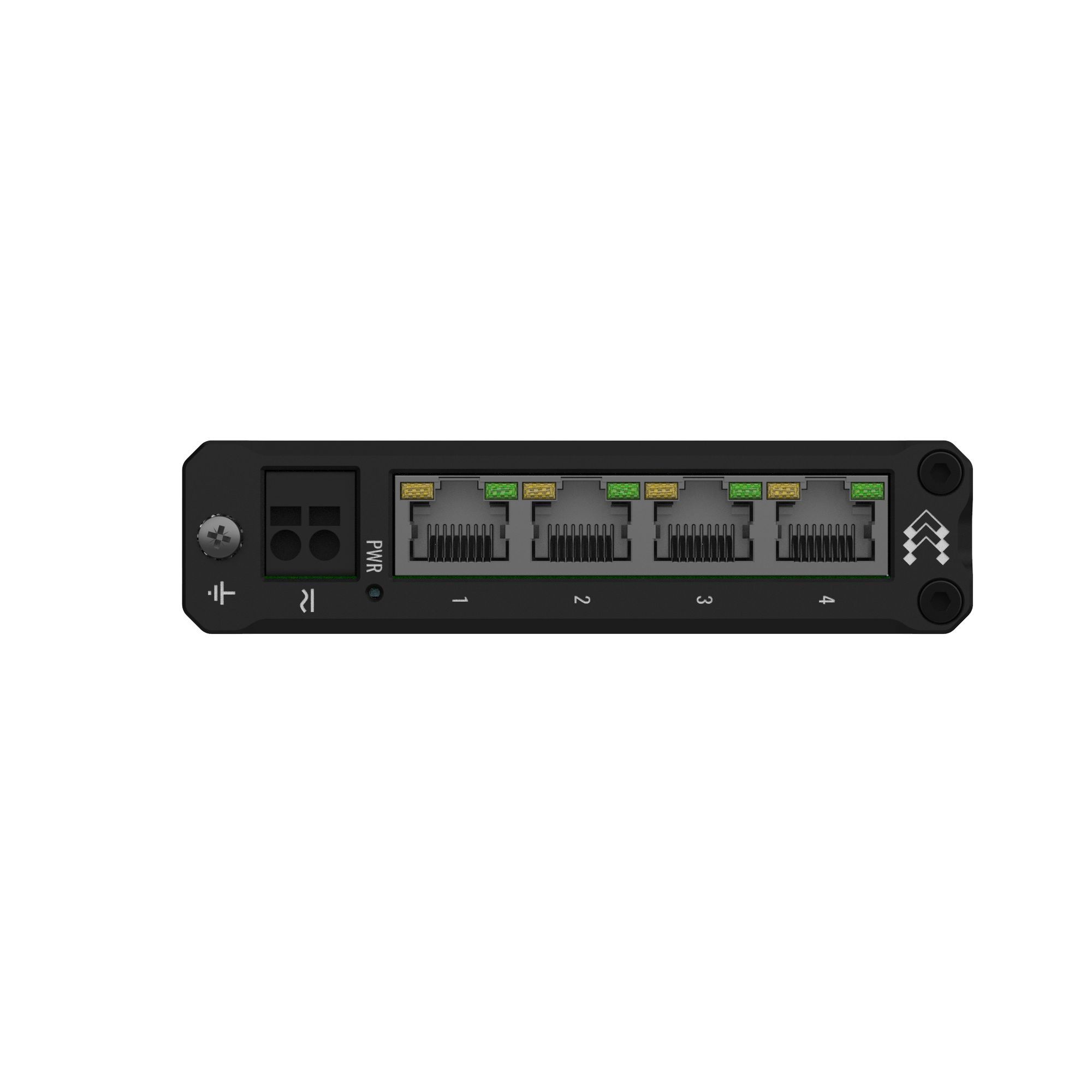

• Accessibility – Grounding, power connectors, and various interfaces located on the front panel
• Gigabit ETH – 4 x Gigabit Ethernet with speeds up to 1000 Mbps

Specifications

HARDWARE

• Powering option: 2-pin power socket, 7 - 57 VDC / 9 - 40 VAC
• Power consumption: Idle: < 0.26 W, Max: < 1.44 W
• Ethernet: 4 x 10/100/1000 Ethernet ports
• Status LEDs: 8 x Ethernet, 1 x Power
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
• Installation: DIN Rail mountable (no additional kit needed)

PERFORMANCE SPECIFICATIONS

• Bandwidth: 8 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Auto MDI/ MDI-X Cable Detection: Yes

POWER

• Connector: 4-pin industrial DC power socket, 2-pin industrial DC power socket
• Input voltage range: 7-57 VDC
• PoE (passive): Passive PoE:over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Passive PoE input on port No. 1
• Power consumption: Idle: 0.26 W / Max: 1.44 W

Standard package contains

• TSW110
• 9 W PSU
• QSG (Quick Start Guide)
• Packaging box

Links

• TSW304 product page
• TSW304 Wiki page
