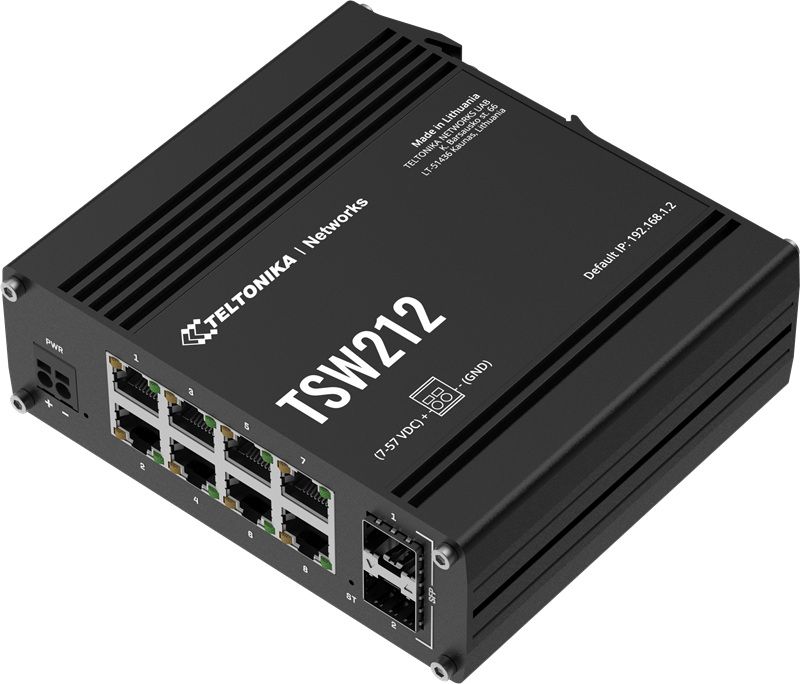

TSW212 is Teltonika Networks' L2 managed Ethernet switch with L3 additional features such as DHCPv6 client support and static IPv6 routing to improve network management. This switch supports multiple industrial protocols, such as EtherNet/IP, PROFINET and MRP. It has 8 Gigabit Ethernet ports and 2 SFP ports, providing a robust long-distance fiber connection. Housed in a durable aluminum case, the TSW212 withstands extreme temperatures and heavy vibration — and it can be easily mounted thanks to the integrated DIN rail bracket.

Features

• MANAGED SWITCH: L2 and L3 additional features for advanced management capabilities.
• PROFINET AND MORE: Supports Profinet for industrial automation alongside other protocols like EtherNet/IP and MRP.
• ETHERNET & SFP: 8 x Gigabit Ethernet ports and 2 x SFP ports for fiber connectivity.
• TSWOS: Teltonika Networks' operating system for switches, intuitively designed for endless configurations.

Specifications

HARDWARE

• RAM: 128MB, DDR3
• Flash storage: 16MB serial flash
• Powering options: 2-pin industrial DC power socket, 7 - 57 VDC
• Power consumption: Idle: < 2.5 W / Max: 6 W

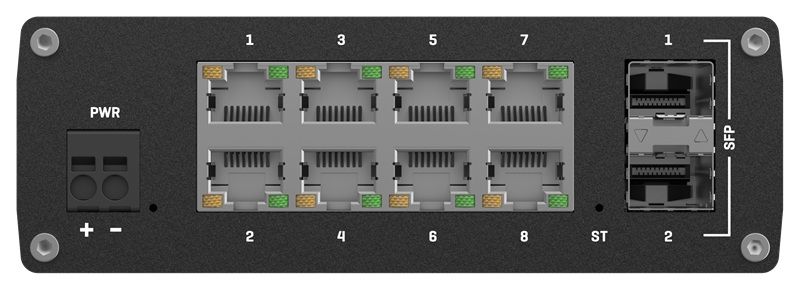

• Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x LAN status LEDs, 2 x SFP status LEDs
• Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
• SFP: 2 x SFP ports
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C
• Dimensions: (W x H x D) 132 x 44.2 x 122.2 mm
• Weight: 615 g

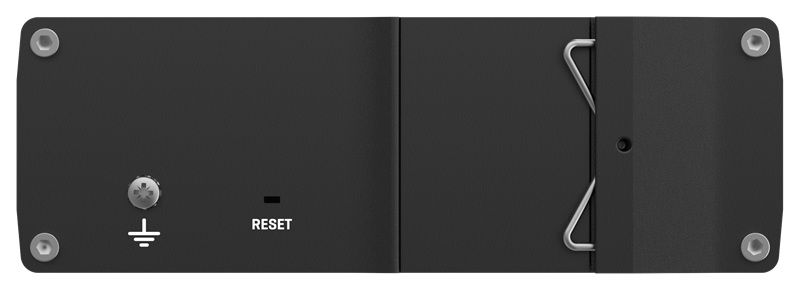

• Installation: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

PERFORMANCE SPECIFICATIONS

• Bandwidth: (Non-blocking) 20 Gbps
• Packet buffer: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10000 bytes

SERVICES

• Supported services: EtherNet/IP, Profinet (class B), SNMP, V2, V3, LLDP

NETWORK

• MRP: MRP client role, MRP manager role
• L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP
• DHCP: DHCP server, DHCP client
• Port Settings: Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
• L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

• QOS: Port priority, DSCP priority, 802.1p priority, TOS
• Scheduling method: SP/WFQ/WRR
• Bandwidth control Rate limiting, storm control

Package contents

• TSW212
• QSG (Quick Start Guide)
• Packaging box
