Description

• The TSW210 is an unmanaged industrial switch for centralizing your resources.

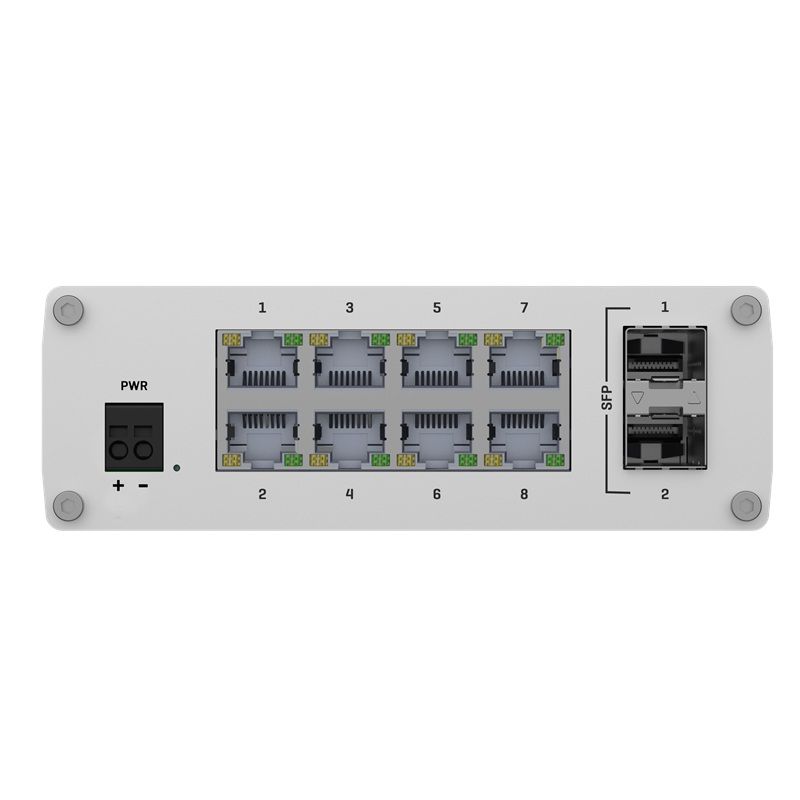

• Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.

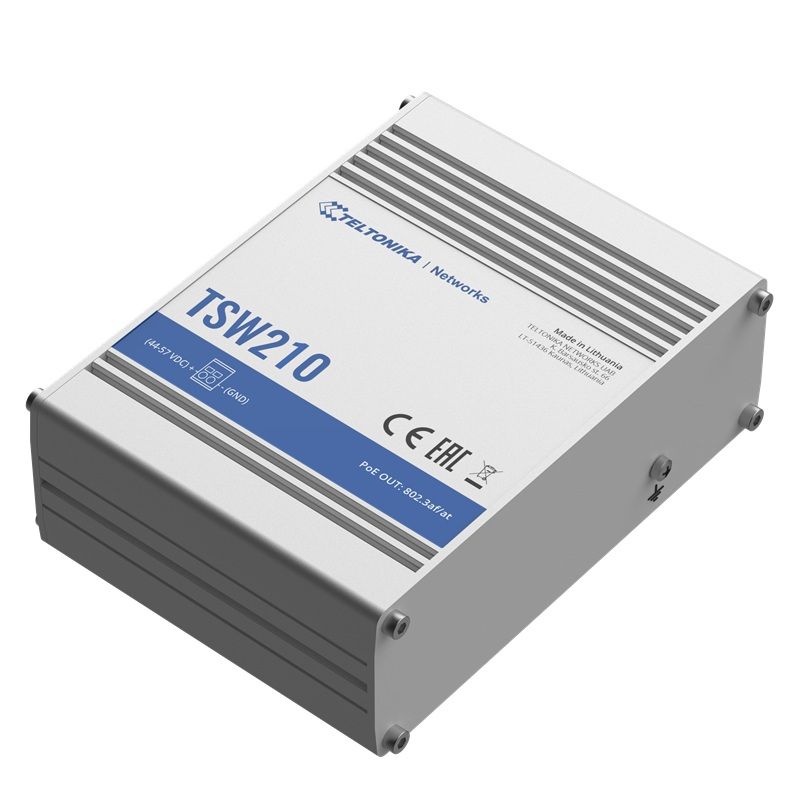

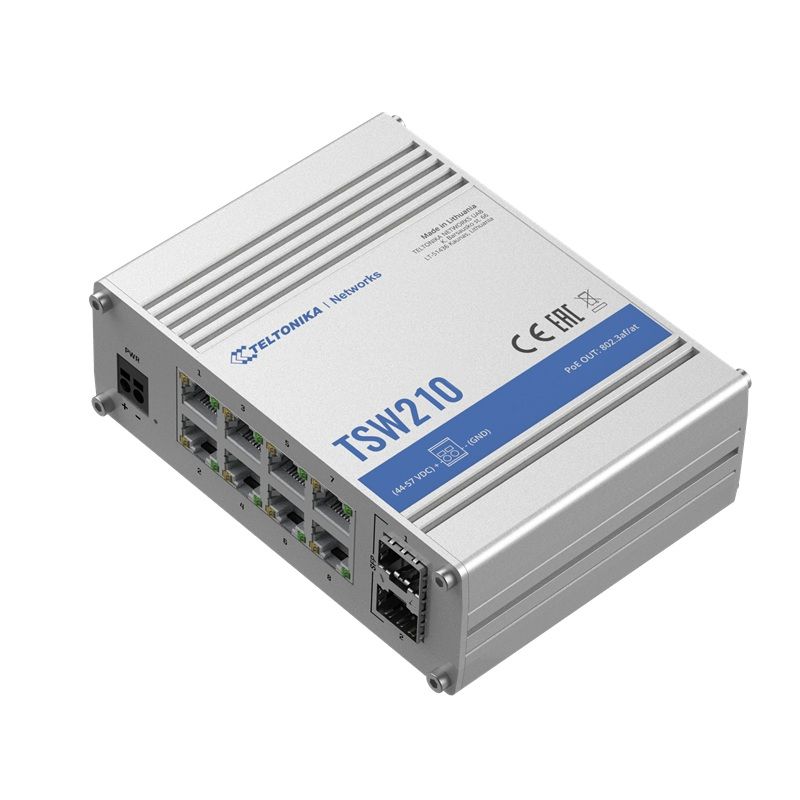

• Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.
• 2-pin industrial DC power socket with an input voltage range of 7-57 VDC

Key features

• ETHERNET - 8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
• PLUG AND PLAY - No additional configuration needed
• MOUNTING - DIN rail and surface mounting options
• SFP - 2 x SFP ports for long-range fiber-optic communication

Specifications

HARDWARE

• Power connector: 2-pin industrial DC power socket
• Input voltage range: 7-57 VDC Power consumption Idle: 1.03 W, Max: 3.71W
• Ethernet: 8 x 10/100/1000 Mbps Ethernet ports
• SFP: 2 x SFP ports for Optical interfaces
• Status LEDs: 16 x Ethernet, 1 x Power, 2 x SFP activity
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminum housing with wall or DIN rail mounting options and grounding capability
• Dimensions: 132 x 44.2 x 95.1 mm
• Weight: 500 g Installation Desktop, wall or DIN rail mountable (additional kit needed)

PERFORMANCE SPECIFICATIONS

• Bandwidth: 20 Gbps
• Packet buffer: 128KB
• MAC address table size: 2K entries
• Auto MDI/MDI-X Cable Detection: Yes

POWER

• Connector: 4-pin industrial DC power socket, 2-pin industrial DC power socket
• Input voltage range: 7-57 VDC
• Power consumption: Idle: ~1.03 W / Max: 3.71 W

Standard package contains

• TSW210
• QSG (Quick Start Guide)
• Packaging box
