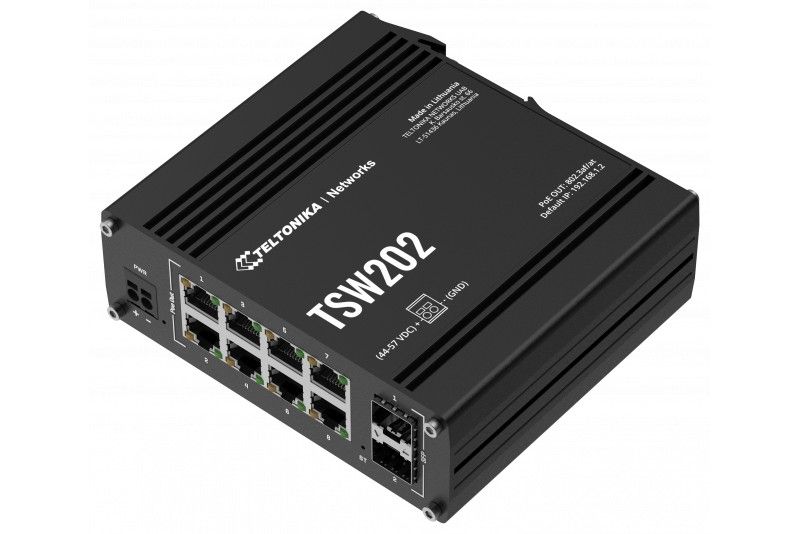

Teltonika Networks' TSW202 is the company’s first managed PoE+ switch, designed to provide comprehensive network management features and centralized power distribution. This switch not only enables flexible solution management and power delivery, but also enhances M2M communication by supporting several industrial protocols such as EtherNet/IP, Profinet and MRP. The TSW202 switch is equipped with two SFP ports for long-range fiber connectivity and eight gigabit Ethernet ports, each capable of delivering 30 watts.

Features

• MANAGED SWITCH: L2 with additional features and L3 for enhanced management and control
• POE+ AND SFP PORTS: 8-port PoE+ switch with 2 x SFP ports for fiber communication
• PROFINET AND OTHERS: Supports Profinet for industrial data handling alongside other protocols such as EtherNet/IP and MRP
• TSWOS: Teltonika Networks’ own switch operating system, intuitively designed for endless configurations

Specifications

HARDWARE

• RAM: 128MB, DDR3
• Flash storage: 16MB serial flash
• Powering options: 2-pin industrial DC power socket, 7 - 57 VDC
• Input voltage range for PoE: 44 - 57 VDC
• Power consumption: Idle: < 3 W / Max: 8 W / PoE Max: 240 W
• PoE standard: 802.3af and 802.3at (Max 30 W per port, total power budget 240 W)
• Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x LAN status LEDs, 2 x SFP status LEDs

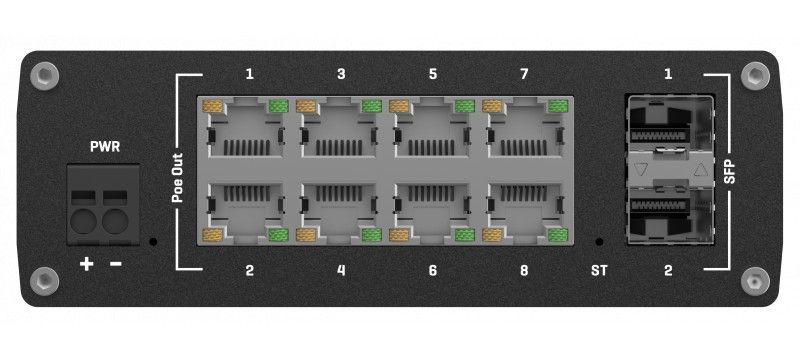

• Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps, PoE ports: Port 1 – 8
• SFP: 2 x SFP ports
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C
• Dimensions: (W x H x D) 132 x 44.2 x 122.2 mm
• Weight: 610 g

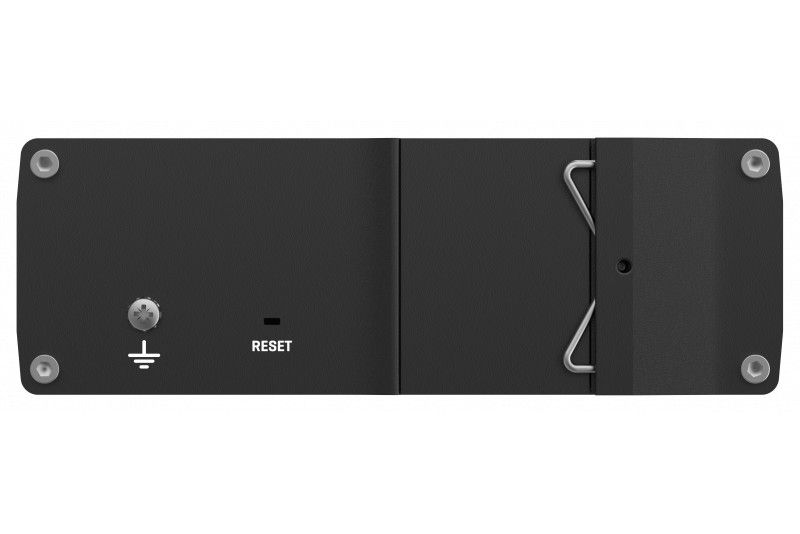

• Installation: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

PERFORMANCE SPECIFICATIONS

• Bandwidth: (Non-blocking) 20 Gbps
• Packet buffer: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10000 bytes

SERVICES

• Supported services: EtherNet/IP, Profinet (class B), SNMP, V2, V3, LLDP

NETWORK

• MRP: MRP client role, MRP manager role
• L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP
• DHCP: DHCP server, DHCP client
• Port Settings: Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
• L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

• QOS: Port priority, DSCP priority, 802.1p priority, TOS
• Scheduling method: SP/WFQ/WRR
• Bandwidth control Rate limiting, storm control

Delivery

• TSW202
• QSG (Quick Start Guide)
• Packaging box
