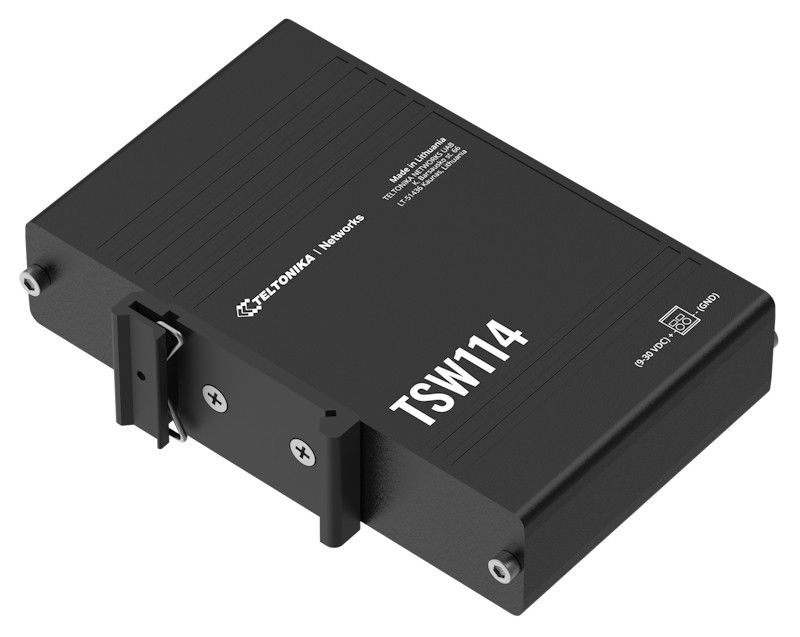

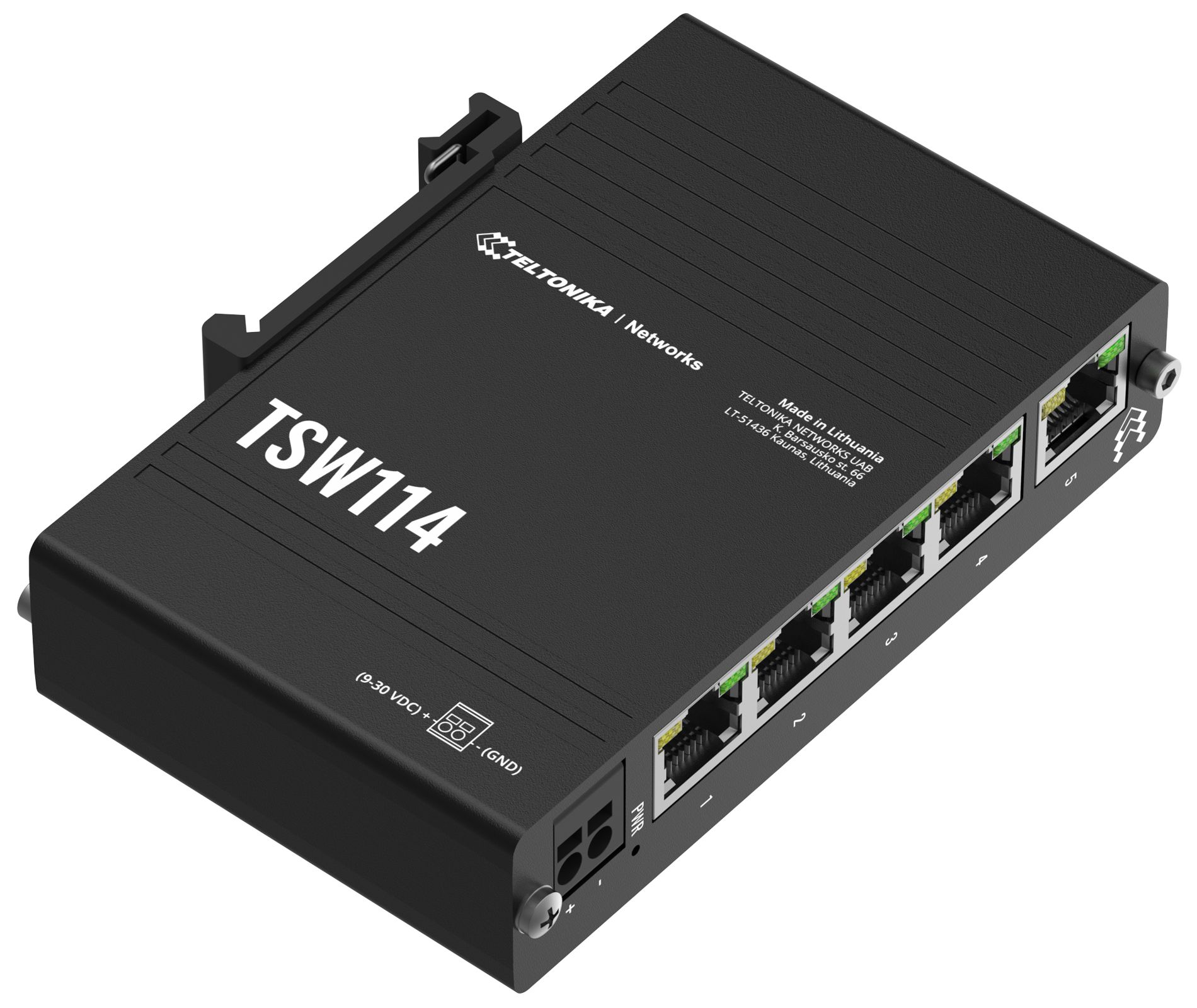

TSW114 is an affordable way to simplify connectivity, as its plug and play nature and 5 x Gigabit Ethernet ports provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket, which enables easy installation in many industrial environments - especially control cabinets.

Features

• EASY INSTALLATION: Integrated DIN rail bracket and front-facing ports.
• GIGABIT ETHERNET: 5 x Gigabit Ethernet ports with speeds up to 1000 Mbit/s.
• COMPACT AND DURABLE: Durable anodized aluminum housing that fits in a pocket.
• PLUG AND PLAY: No additional configuration required.

Specifications

HARDWARE

• Powering supply: 2-pin industrial DC power socket, 9-30 VDC
• Power consumption: Idle: < 0.3 W / Max: 2.3 W
• Status LEDs: 1 x Power LED, 10 x LAN status LEDs

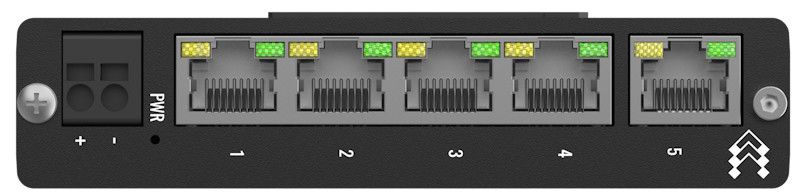

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C
• Housing: Anodized aluminum housing and panels
• Dimensions: 113.1 x 27.4 x 80.5 mm
• Weight: 174 g
• Installation: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

PERFORMANCE SPECIFICATIONS

• Bandwidth: (Non-blocking) 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Jumbo frame support: 9216 bytes

Package contents

• TSW114
• QSG (Quick Start Guide)
• Packaging box
