Description

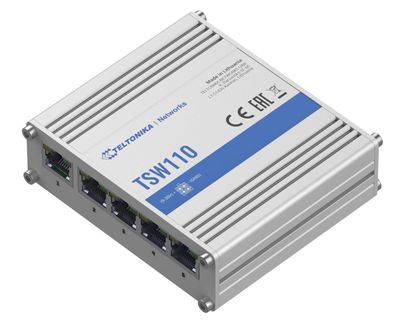

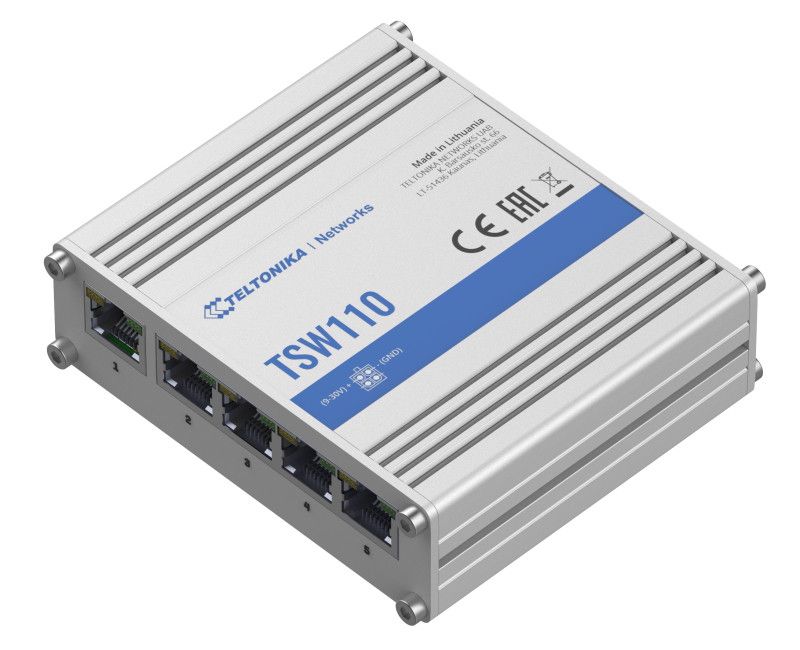

• TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.
• Possible to power up through the first LAN port.
• It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
• It offers a wide range of supported power supply voltages (9-30 V).
• Ideal for professional high bandwidth applications to provide reliable data connection.

Key features

• PLUG-N-PLAY - No additional configuration needed
• DURABILITY - Rugged aluminium housing
• MOUNTING - DIN rail and surface mounting options
• STATUS LEDS - 1 x Power, 10 x Ethernet
• 9-30 V - Wide range of supported power supply voltages
• GIGABIT ETH - 5 x Gigabit Ethernet with speeds up to 1000 Mbps

Specifications

HARDWARE

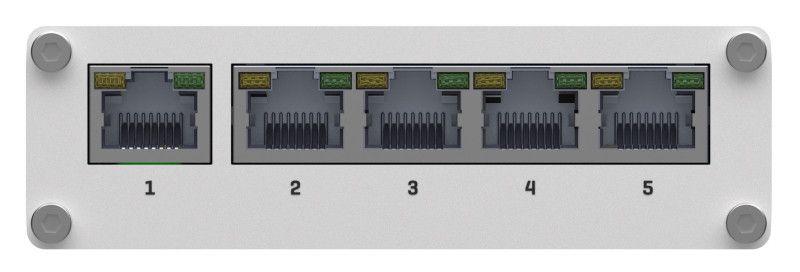

• Ethernet: 5 x LAN ports 10/100/1000 Mbps

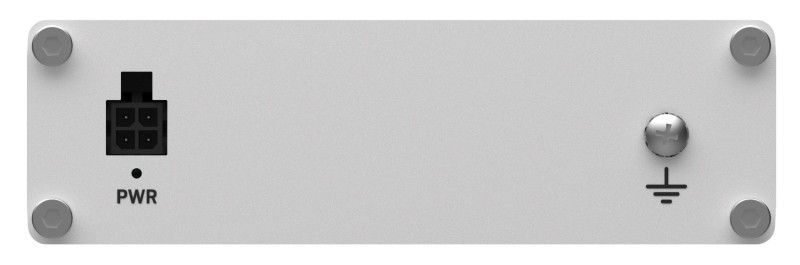

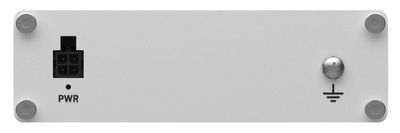

• Power supply: 9 - 30 V, 4 pin DC connector
• Power consumption: idle: < 0.4 W, max: < 1.8 W
• PoE input (passive): Passive PoE over 4,5 (power) and 7,8 (ground) pins. Possibility to power up through first LAN port,
• not compatible with IEEE802.3af and 802.3at standards
• Connectors: 1 x 4 pin DC, 5 x Ethernet
• Status LEDs: 1 x Power, 10 x Ethernet
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C

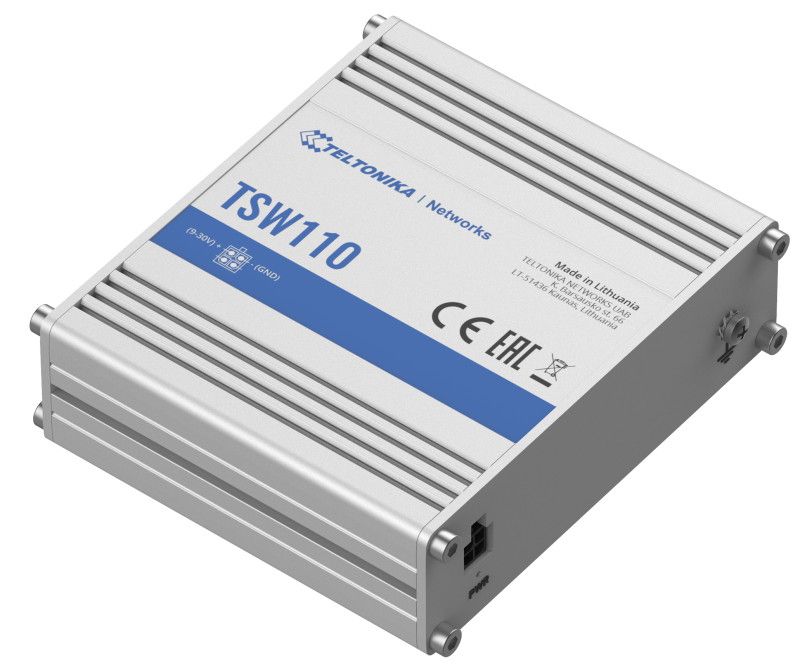

• Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
• Dimensions: 100 x 30 x 85 mm
• Weight: 227 g
• Installation: Desktop, wall or DIN Rail mountable (additional kit needed)

PERFORMANCE SPECIFICATIONS

• Bandwidth: 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Auto MDI/MDI-X Cable Detection: Yes

Standard package contains

• TSW110
• 9 W PSU
• QSG (Quick Start Guide)
• Packaging box
