Description

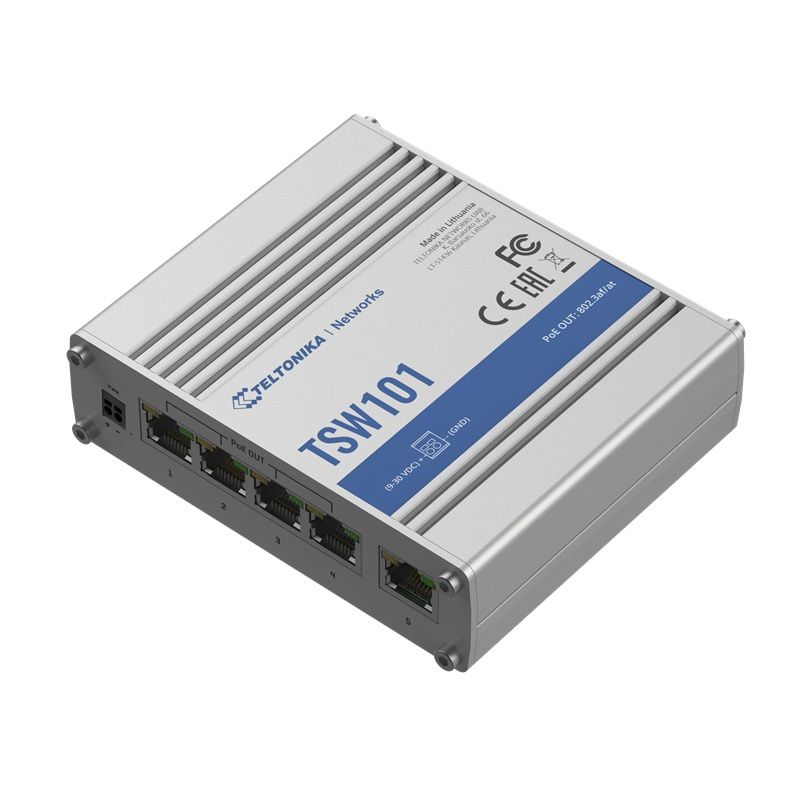

• TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.
• Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards.
• A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.
• Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts.
• 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
• Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.

Key features

• PLUG AND PLAY - No configuration needed
• POE+ - 4 x PoE+ ports with 802.3af and 802.3at support
• GIGABIT ETHERNET - 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
• INDUSTRIAL DESIGN - Rugged aluminum housing

Specifications

HARDWARE

• Powering option: 2-pin power DC socket, 9-30 VDC
• Power consumption: 0.64 W / Max: 2.31 W / PoE Max: 112.58 W
• PoE standart: 802.3af/at (max 30 W per port, total power budget 60W)

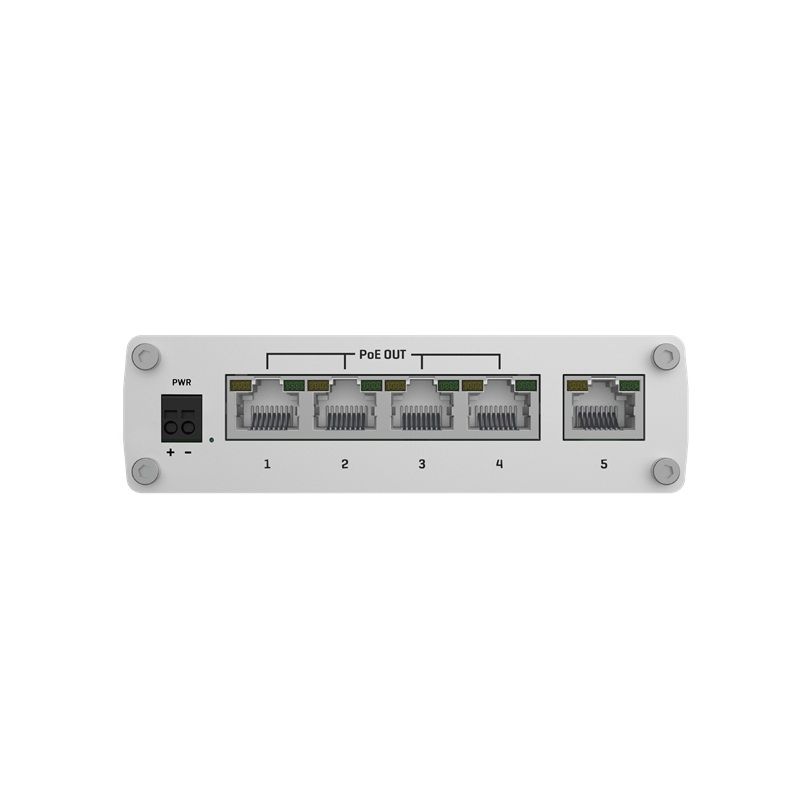

• Ethernet: 5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink
• Status LEDs: 10 x Ethernet, 1 x Power
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C

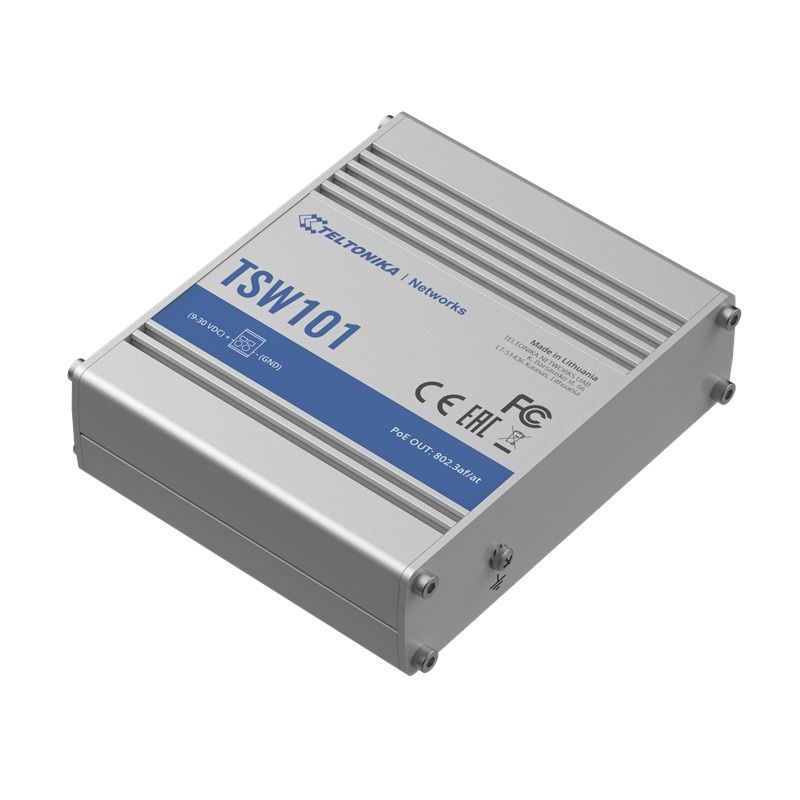

• Housing: Aluminum housing with wall or DIN rail mounting option and grounding capability
• Dimensions: 115 x 32 x 95 mm
• Weight: 354 g

PERFORMANCE SPECIFICATIONS

• Bandwidth: 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Auto MDI/ MDI-X Cable Detection: Yes

POWER

• Connector: 2-pin industrial DC power socket
• Input voltage range: 9-30 VDC
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, 9-30 VDC
• Power consumption: Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W

Standard package contains

• TSW101
• QSG (Quick Start Guide)
• Packaging box
