Description

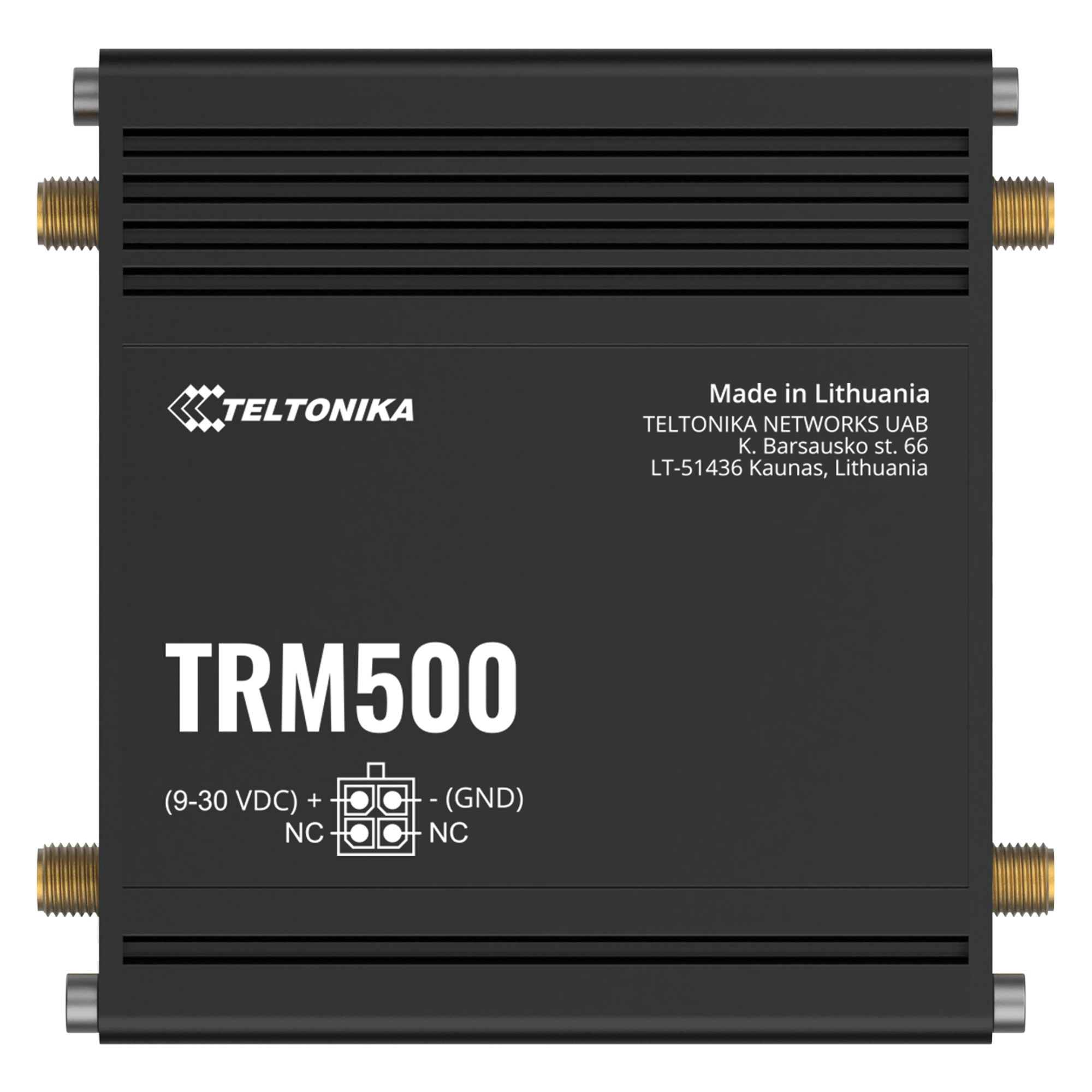

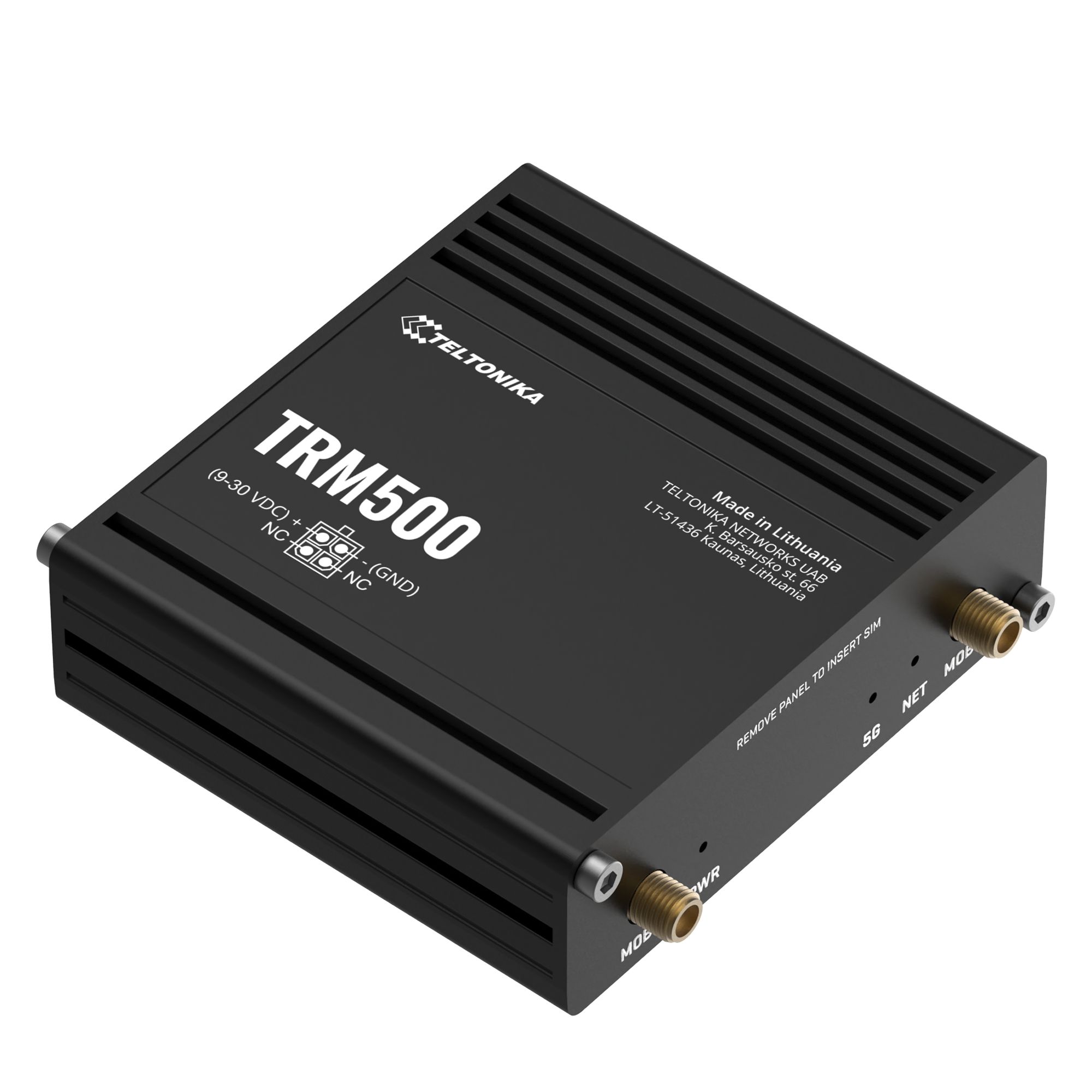

The TRM500 is a compact and lightweight 5G modem that delivers very fast mobile connectivity, up to 3.4 Gbps. This industrial-grade 5G modem is backward compatible with 4G (Cat 19) and 3G networks. It includes four SMA antennas for improved connectivity, a DIN-rail mounting option and a USB Type-C connector that enables simultaneous data transfer and power supply.

Key features

• 5G - Up to 3.4 Gbps data rate
• Backward compatible with 4G (Cat 19) and 3G networks.
• USB-C connector
• Compact size, easy installation

Hardware

• Mobile: 5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/550 Mbps UL (2x2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

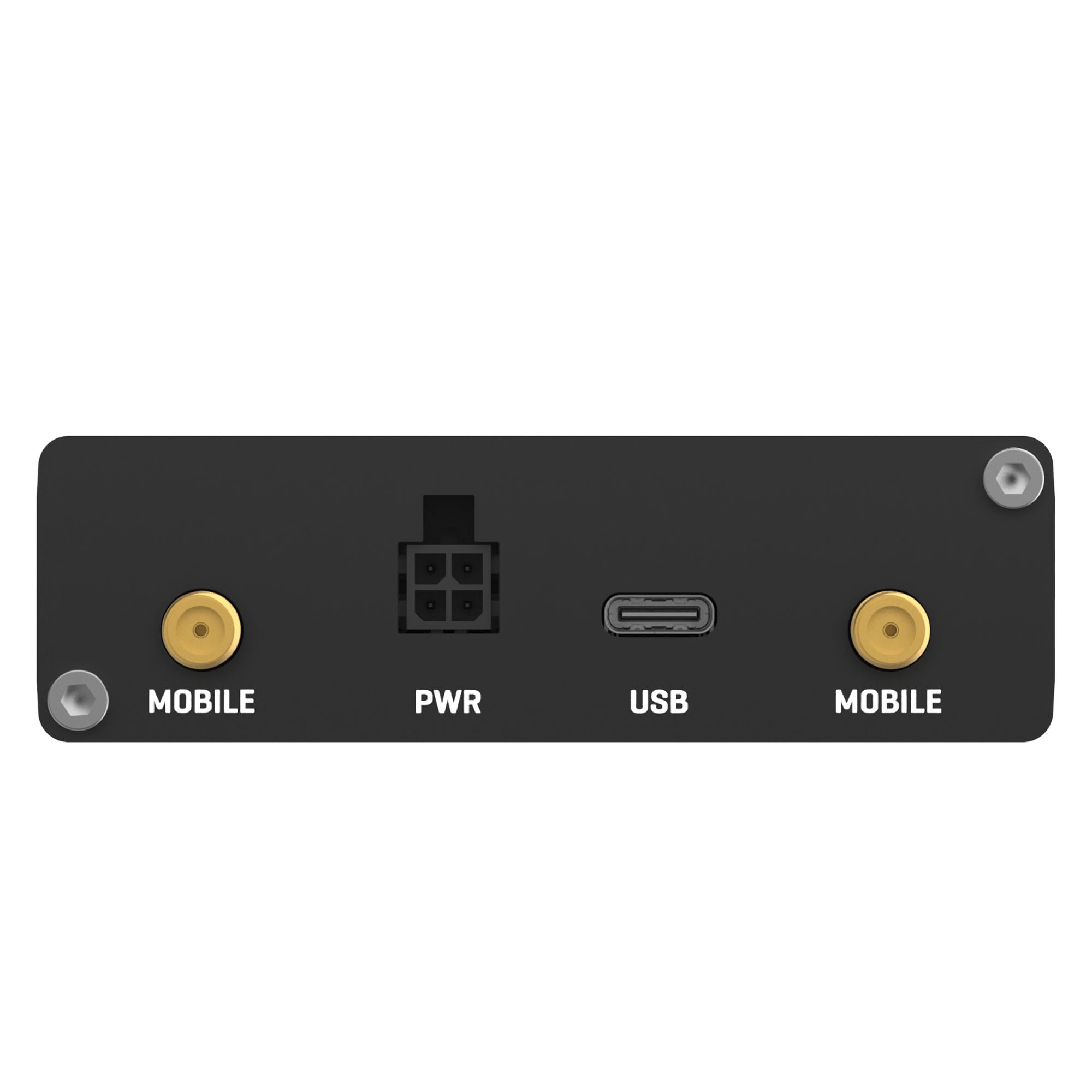

• Power options: 1 x 4-pin power connector, 1 x USB Type-C (USB host must provide 5V @ 3A power for the device to be powered via the USB Type-C port)
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V / 3 V
• Antenna connectors: 4 x SMA for mobile connections

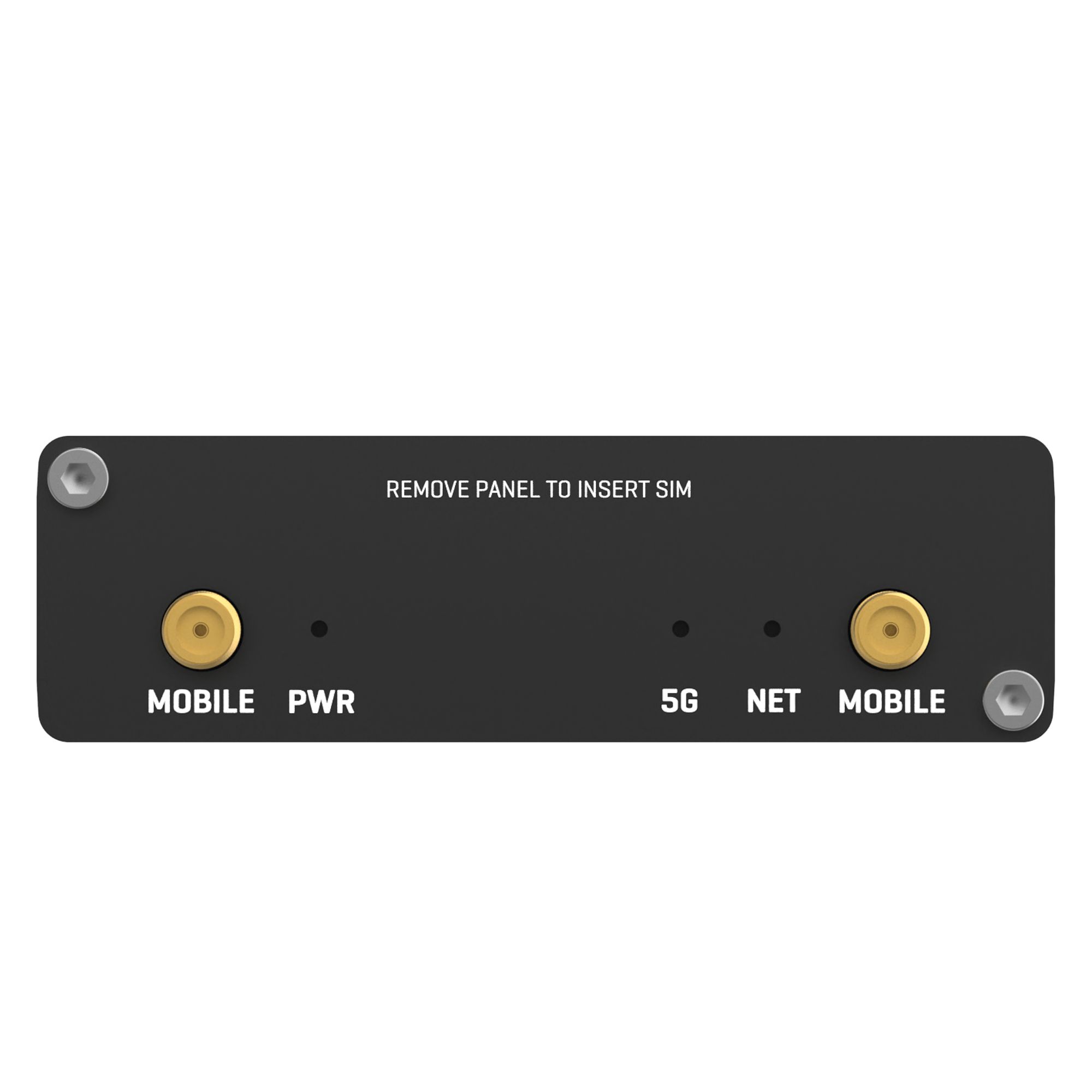

• Status LEDs: 1 x Power LED, 1 x 5G LED, 1 x Network LED
• Other: 1 x Virtual network interface via USB Type-C (for power and network data)
• Operating temperature: -40 °C - 75 °C
• Enclosure: Anodized aluminum housing and panels
• Dimensions: (L x H x W) 83 x 25 x 85.4 mm
• Weight: 94.5 g

Software

• Management software: Windows Connection Manager, Modem Manager (Linux)
• USB serial port driver: Windows 7/8/8.1/10/11, Linux 2.6~6.3, Android 4.x ~ 13
• GNSS driver: Android 4.x ~ 13
• RIL driver: Android 4.x ~ 13
• NDIS driver: Windows 7/8/8.1/10/11
• MBIM driver: Windows 8/8.1/10/11, Linux 3.18~6.3
• Gobinet driver: Linux 2.6/3.x/4.1~4.14
• QMI_WWAN driver: Linux 3.4~6.3

Package includes

• TRM500
• 9 W power adapter
• 4x 5G mobile antenna (pivot, SMA male)
• 1x hex key
• SIM adapter set
• QSG (Quick Start Guide)
• USB Type-C cable (0.8 m)
• Packaging box
