Description

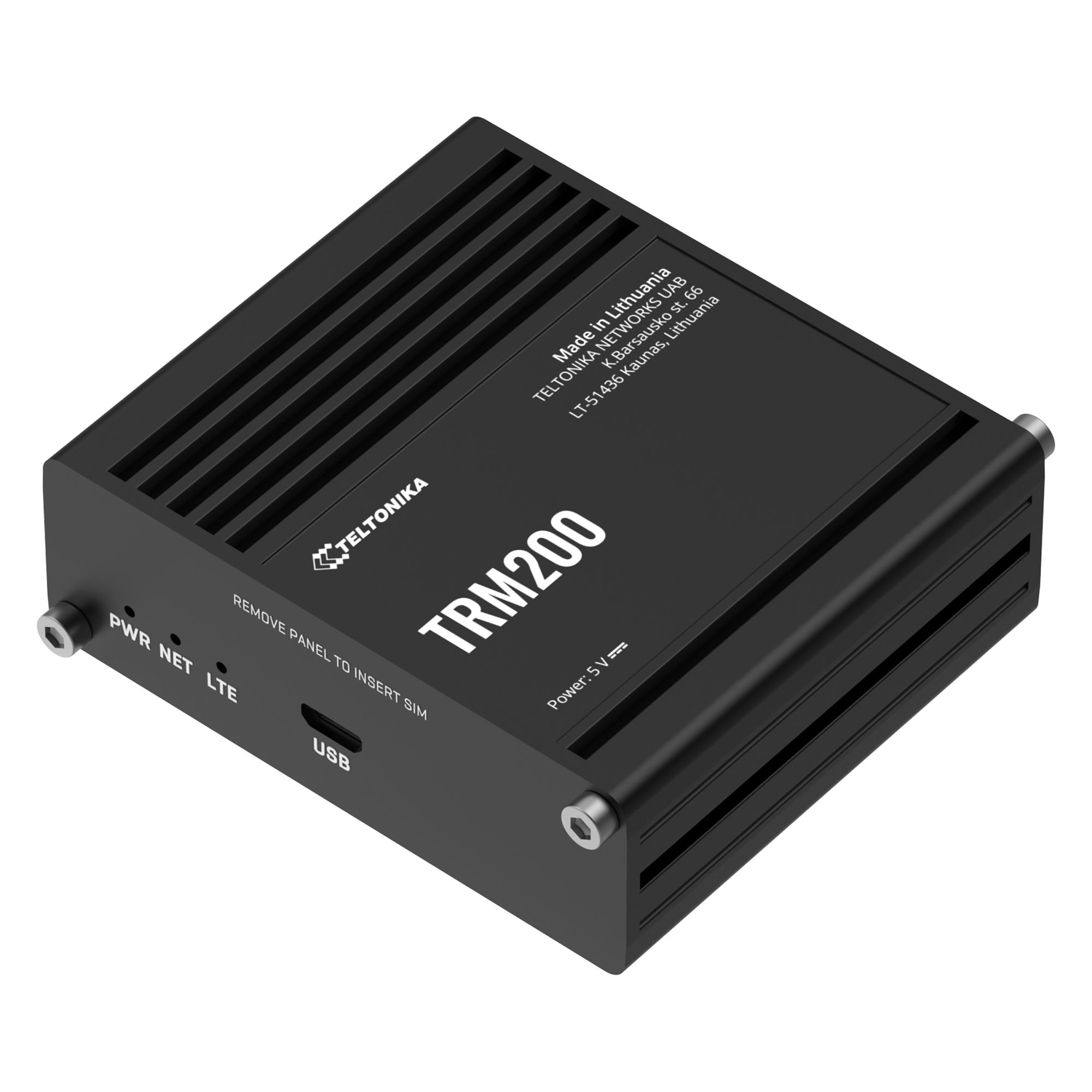

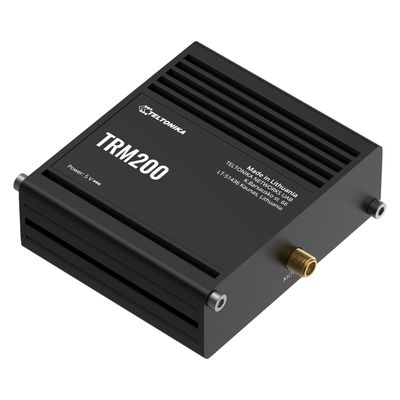

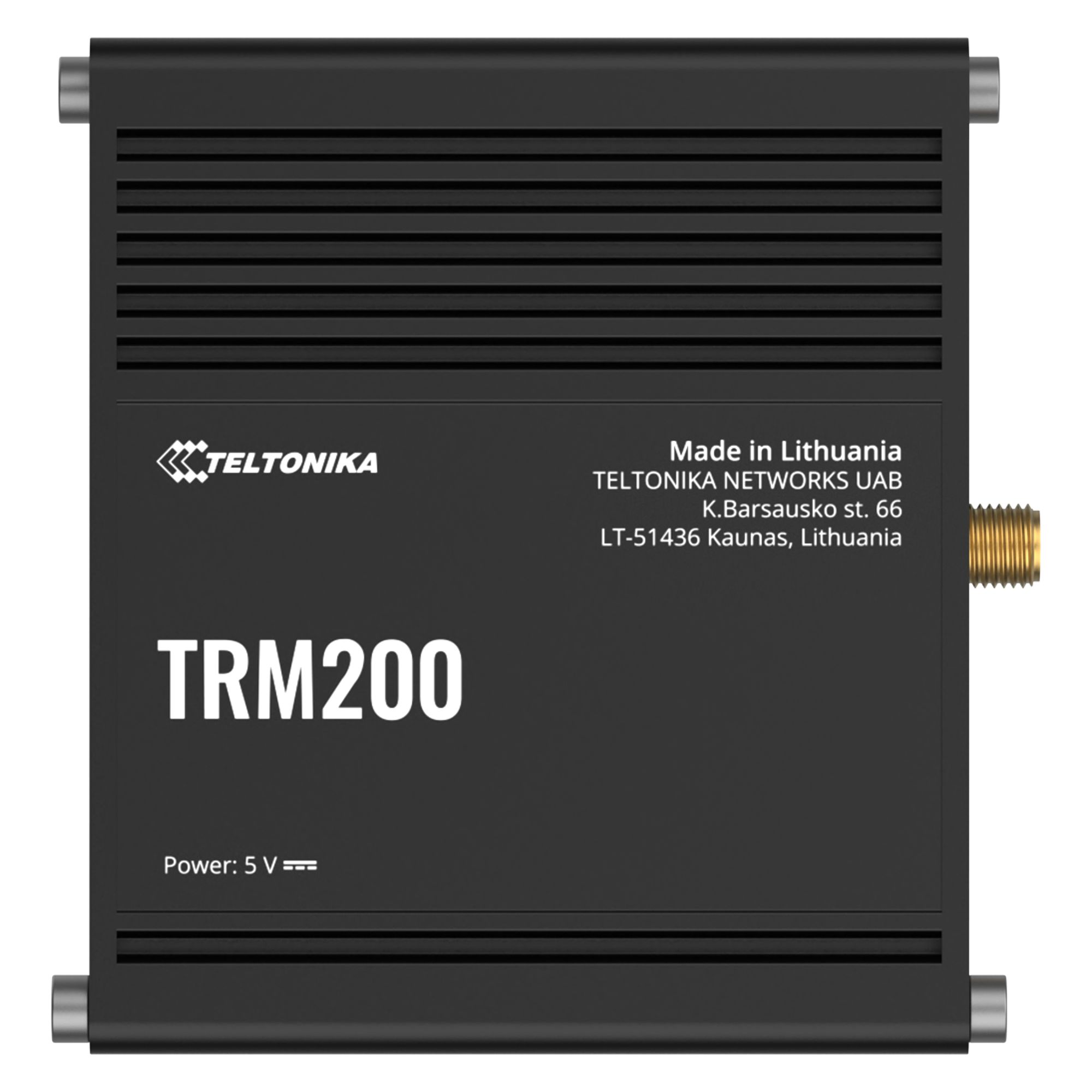

TRM200 is an LTE Cat 4 modem designed for industrial use, offering a reliable 4G connection and full backward compatibility with 3G and 2G networks, ensuring seamless operation in a variety of environments. This rugged modem features a micro-USB port and an external antenna, providing a cost-effective solution for upgrading existing industrial equipment to be LTE-capable.

Key features

• Compact size, easy installation
• Power and data via micro-USB
• 4G Cat 4, 3G, 2G
• Improved network reliability

Hardware

• Cellular network: 4G – Cat 4 up to 75 DL/50 UL Mbps, 3G – Up to 42 DL/5.76 UL Mbps, 2G – Up to 236.8 DL/236.8 UL kbps
• Power options: MicroUSB, 5 VDC
• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

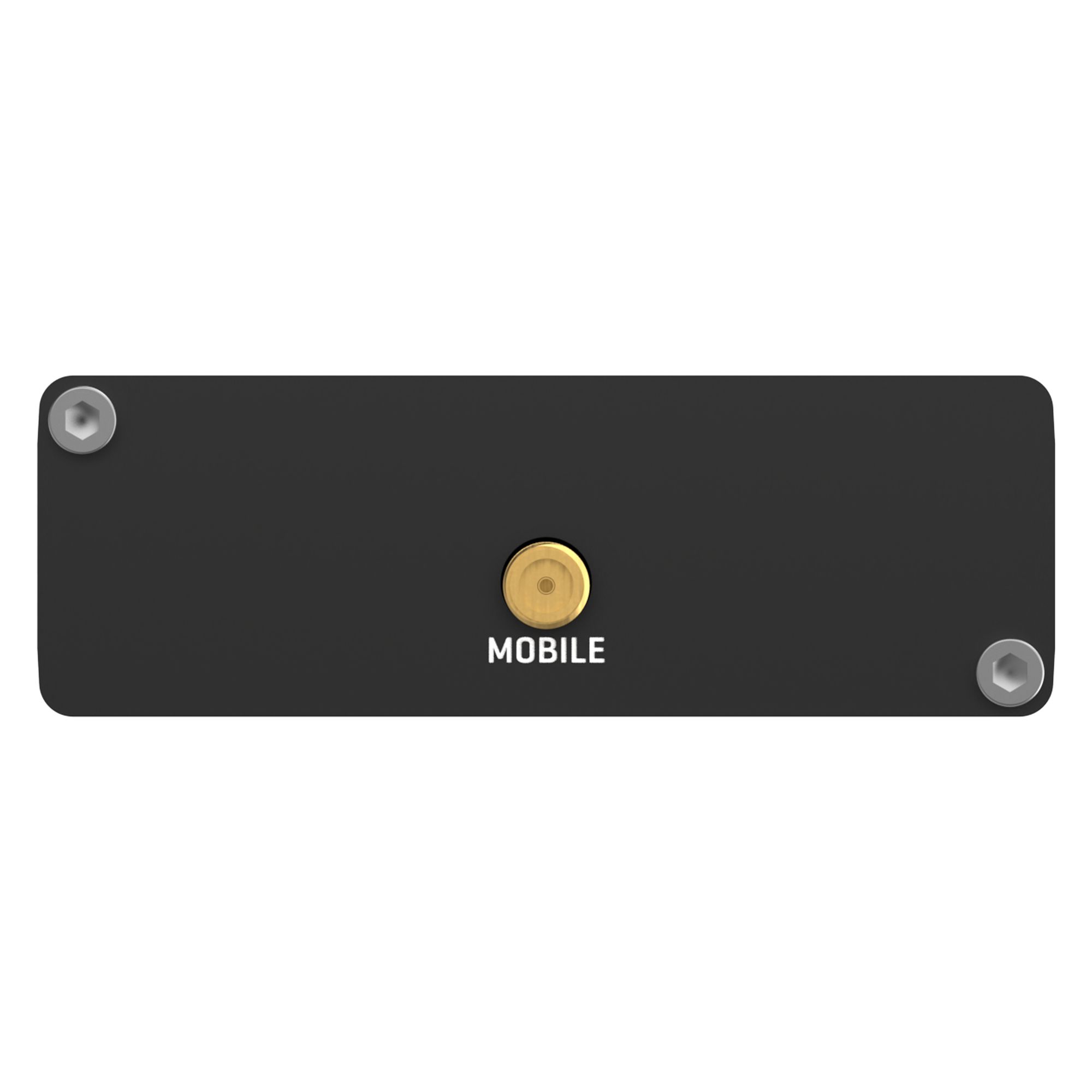

• Antenna connectors: 1 x SMA for cellular network

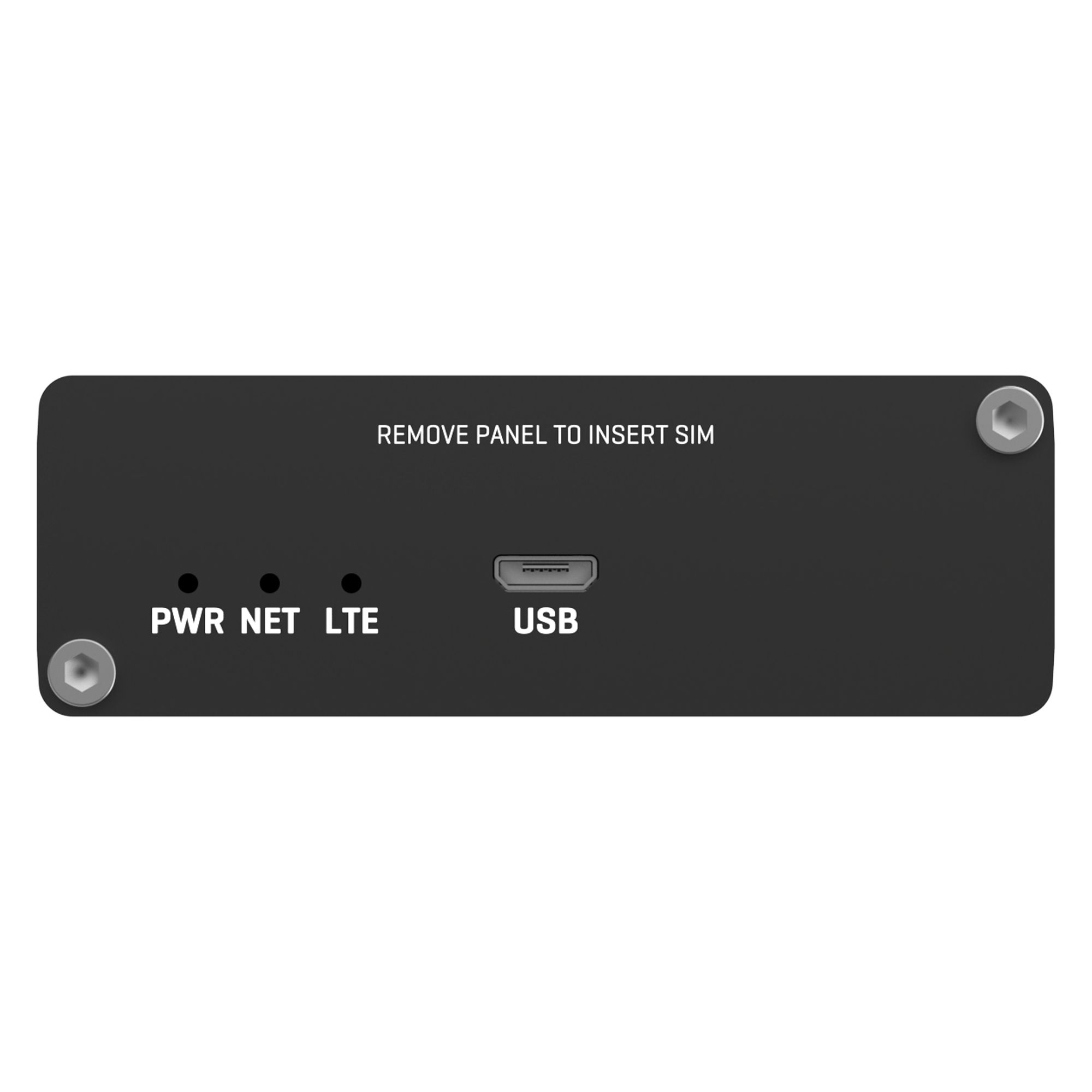

• LEDs: 1 x Power LED, 1 x Network LED, 1 x Cellular LED
• Operating temperature: -40 °C - 75 °C
• Enclosure: Anodized aluminum case and panels
• Dimensions (L x H x D): 74.5 x 25 x 64.5 mm
• Weight: 274 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• USB serial driver: Windows 7/8/8.1/10/11, Linux 2.6~6.3, Android 4.x ~ 13
• NDIS driver: Windows 7/8/8.1/10

Package contents

• TRM200
• 1 x Cellular antenna (swivel, SMA male)
• Micro-USB cable (0.8 m)
• 1 x Hex key
• QSG (Quick Start Guide)
• Packaging box
