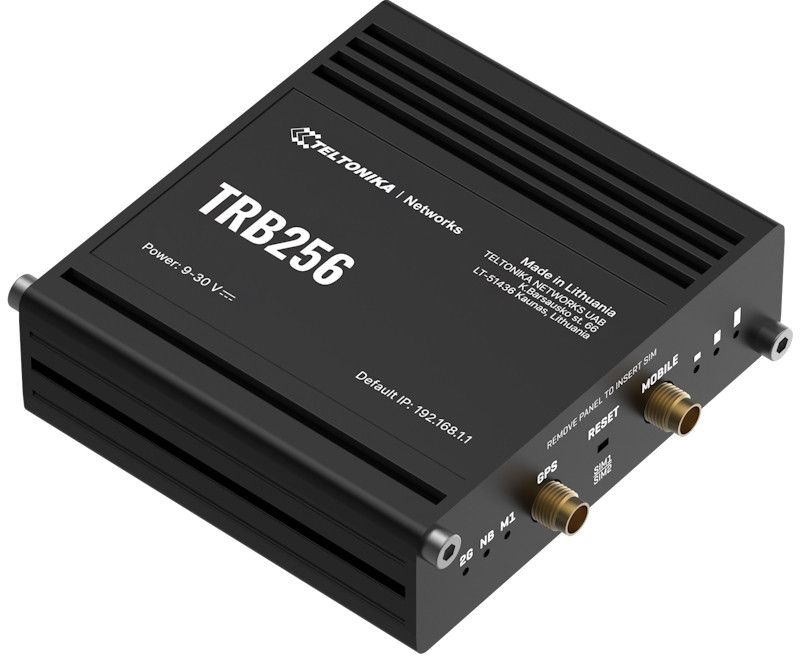

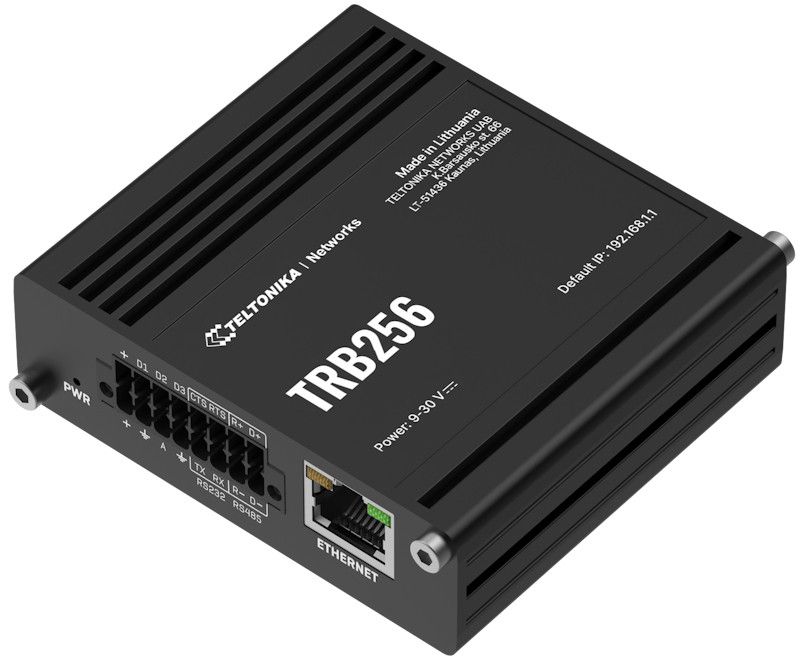

TRB256 is an industrial 4G LTE NB-IoT gateway designed for use in a wide range of IoT solutions. The device is equipped with multiple WAN interfaces, such as I/O, RS232, RS485 and an Ethernet port. Additionally, it has a dual-SIM function to ensure connection continuity. This industrial-grade gateway also supports the 450 MHz frequency band, which provides better LTE signal penetration compared to common frequencies, making the device an excellent choice for many different M2M applications.

Features

• CONNECTION: 4G/LTE Cat M1/Cat NB1, NB2/EGPRS
• 450 MHZ FREQUENCY BAND: Greater LTE signal coverage and better connection reach
• DUAL SIM: Automatic switch to backup connection, backup WAN and other switching scenarios
• INTERFACES: Ethernet, digital I/O, and serial interfaces (RS232, RS485) with 16-pin connector

Specifications

HARDWARE

• Mobile: LTE Cat M1/Cat NB1, NB2/EGPRS (simultaneous operation of cellular and GNSS connectivity is not supported)
• CPU: Mediatek, 580 Mhz, MIPS 24KEc
• Storage: 128 MB
• Memory: 16 MB
• Powering options: 16-pin terminal, 9-30 VDC
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, double stacked SIM tray

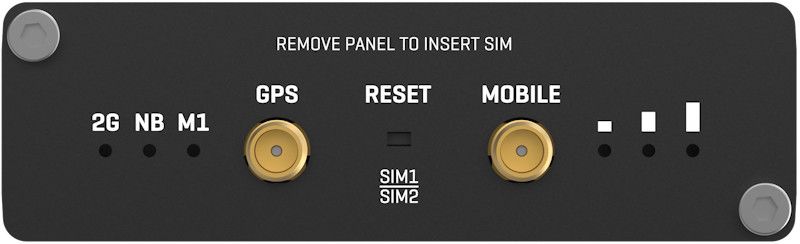

• Antenna connectors: 1 x SMA connector for Mobile, 1 x SMA connector for GNSS Ethernet 1 x RJ45 port, 10/100 Mbps
• GNSS: GPS, GLONASS, BeiDou, Galileo, and QZSS (simultaneous operation of GNSS and cellular connectivity is not supported)

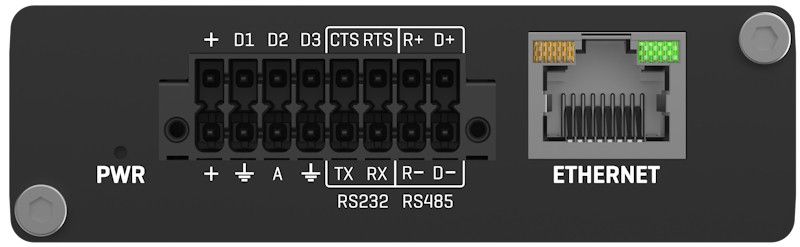

• Inputs/Outputs: 3 x Configurable digital I/O in 16-pin terminal block Serial 1 x RS232, 1 x RS485
• Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing
• Dimensions (W x H x D): 83 x 25 x 74.2 mm
• Weight: 165 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits, Bridge, Passthrough
• Network features: Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DDNS, Network backup, SSHFS
• Monitoring and Management: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/ external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
• GNSS: GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing

Package contents

• TRB256 gateway
• 16-pin terminal block
• 1x hex key
• QSG (Quick Start Guide)
• Packaging box
