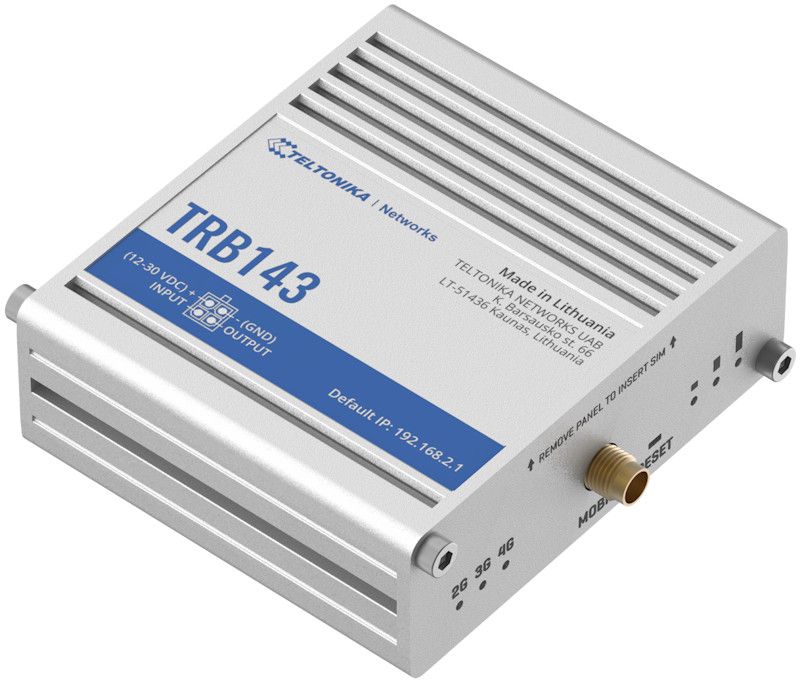

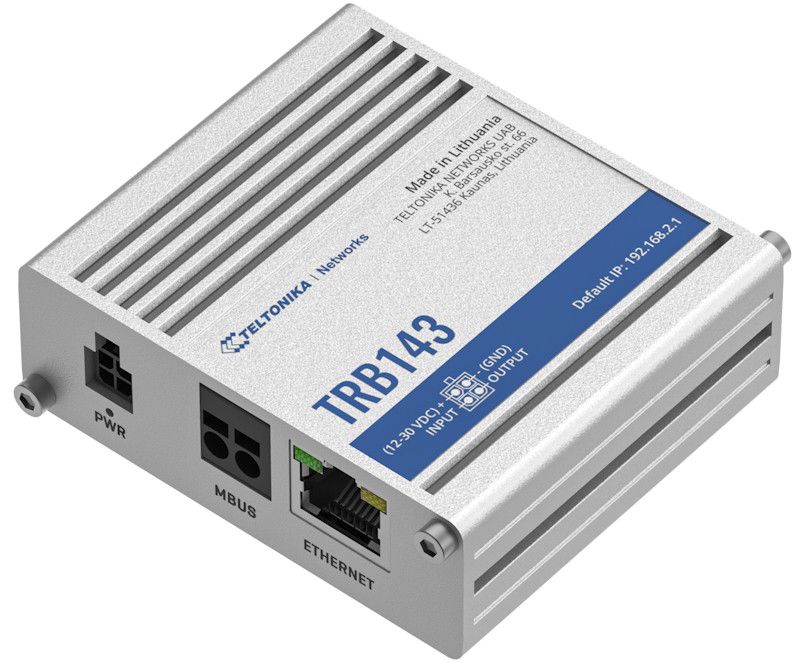

The TRB143 industrial gateway is designed with an integrated M-Bus interface specifically for telemetry and device monitoring applications. It features cellular and wired connectivity, one Gigabit Ethernet port and a couple of digital inputs/outputs, making it suitable for various environmental monitoring scenarios.

Features

• M-BUS INTERFACE: Supports up to 250 slave devices
• CONNECTIONS: 4G/LTE (Cat 4), 3G, 2G
• DURABILITY: Rugged aluminum enclosure
• COMPACT SIZE: easy to install

Specifications

HARDWARE

• 4G LTE Cat 4
• Ethernet: 1 x RJ45 (10/100/1000mbps)
• M-Bus: 1
• Mini-SIM: 1

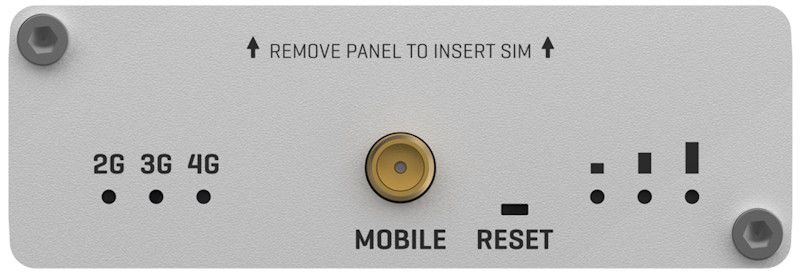

• Antenna: 1 x SMA-female for LTE
• LEDs: power, network strength, LAN and data modes
• Processor: ARM Cortex-A7 1.3 GHz CPU
• Memory: 256 MB (160 MB free space) Flash 512 MB (200 MB free space)

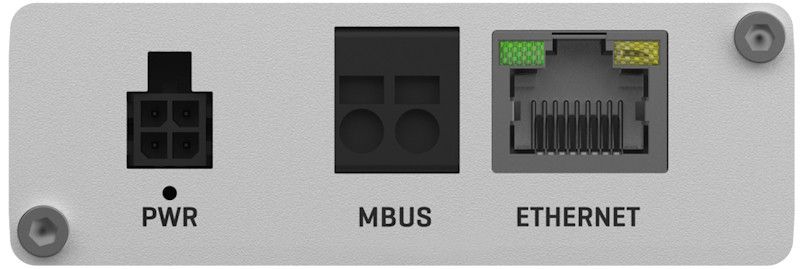

• Power connector: 4-pin industrial DC power connector
• The structure is made of aluminum, DIN rail mounting place
• IP30 rating
• Operating voltage: 12-30 VDC
• Operating temperature: -40 °C … 75 °C
• Dimensions: 74.5 mm x 25 mm x 73 mm
• Weight: 145 g

SOFTWARE

• Operating system: rutOS (OpenWrt based on the Linux operating system)

Package contents

• TRB143 gateway
• 18 W PSU
• 1x Mobile antenna (magnetic mount, SMA male, 3 m cable)
• 1x hex key
• 1x LAN cable
• QSG (quick start guide)
• Packaging box
