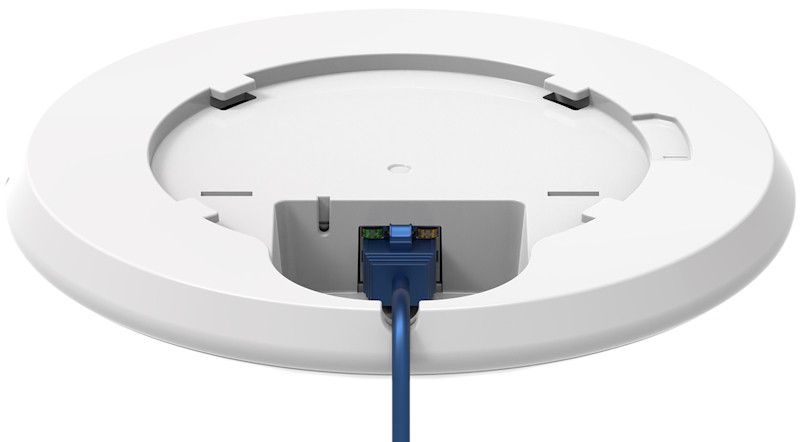

TAP100 is the first Teltonika Networks access point that is ideal for extending Wi‑Fi coverage in small business and retail spaces. This PoE-IN access point can be powered by active PoE devices via the RJ45 port, and it is designed with simplicity and easy installation in mind.

Features

• PoE-IN: power from active PoE devices via the RJ45 port
• STYLISH DESIGN: UV-stabilized plastic enclosure that blends into its surroundings
• EASY INSTALLATION: Integrated bracket for easy ceiling mounting
• RMS MANAGEMENT: Free license for RMS Management service for 24 months

Specs

HARDWARE

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• Flash storage: 16 MB, SPI Flash
• RAM: RAM 64 MB, DDR2
• Powering options: RJ45, PoE, 44.0 – 57.0 V
• PoE standards: 802.3af PoE Class 1
• Antennas: 2 x Internal for 2.4 GHz
• Antennas specifications: 2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
• Ethernet: 1 x RJ45 port, 10/100 Mbps
• Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4)
• Status LEDs: 1 x Power LED (can be turned off from web-UI)
• Operating temperature: -40 °C to 75 °C
• Housing: UV stabilized plastic, AP Mounting Bracket (for ceiling mount)
• Dimensions: Ø 158 mm x 30 mm
• Weight: 190 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH, DHCP client, SMNP
• Monitoring and Management: WEB UI, FOTA, SSH, SNMP, JSON-RPC, RMS
• Security: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block, VLAN

Delivery

• Access point TAP100
• QSG (quick start guide in English)
• Wi‑Fi sticker
• Product packaging
• 18W EU PoE Injector

Links

• TAP100 product page
• TAP100 Wiki page

Video
