Description

SWM282 is a high-capacity L2 managed switch with enhanced L3 features for easy and efficient network management. The device includes 24 PoE+ ports delivering up to 30 W per port (300 W total power budget), and 4 SFP ports for flexible fiber connections. With support for PROFINET and other industrial protocols, the switch is well suited for enterprise networks and IIoT solutions.

Key features

• PoE+
  Power and data delivery via 24 PoE+ ports, up to 30 W per port
• L2+
  Advanced routing protocols and VLAN segmentation
• Cloud management
  Supplied with 2 years of RMS management
• Protocols
  Profinet, MRP and EtherNet/IP for versatile industrial environments

Hardware

• RAM: 128 MB, DDR3
• Flash memory: 16 MB serial flash

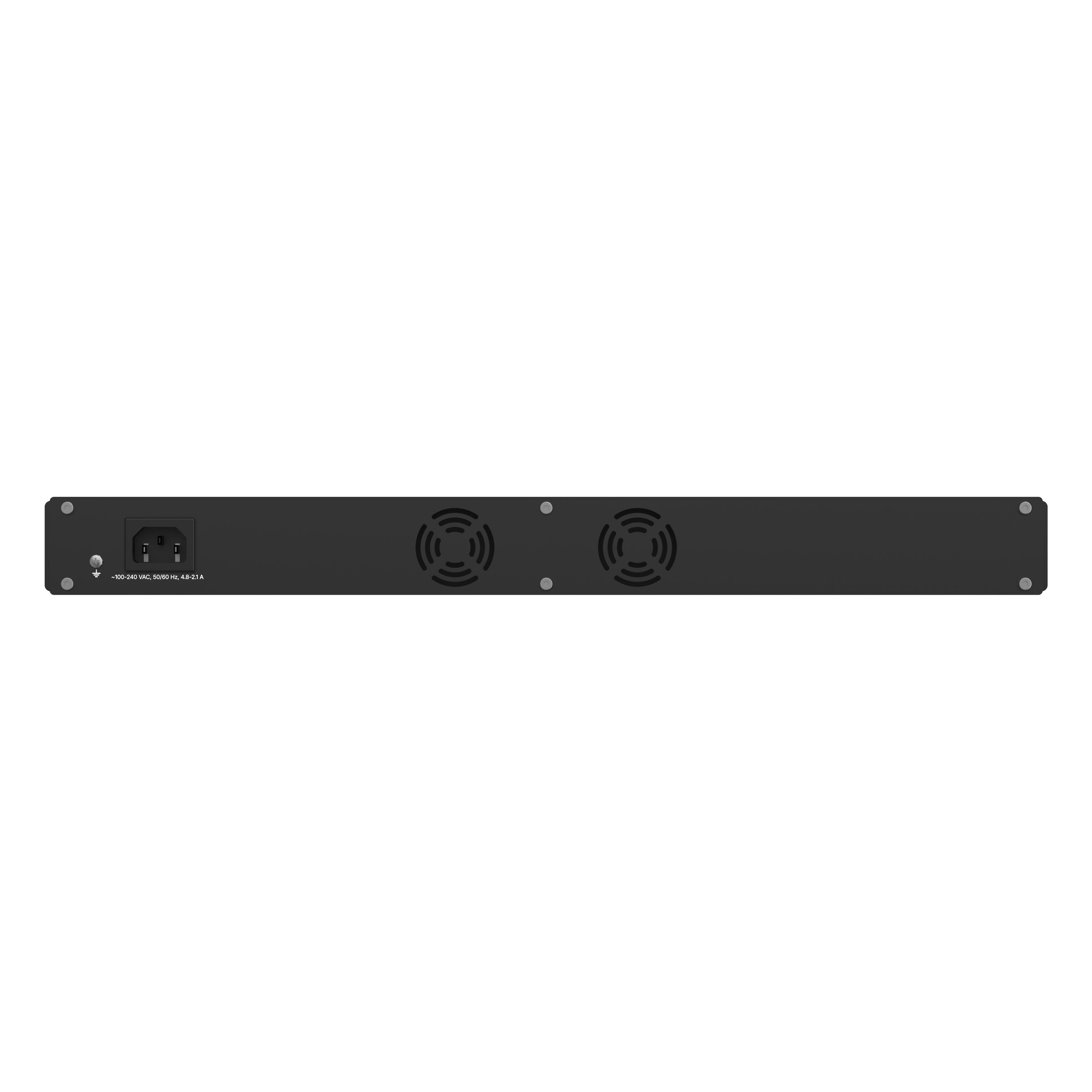

• Power connector: C14 connector
• Input voltage range: 100–240 VAC, 50/60 Hz

Performance

• Throughput (non-blocking): 56 Gbps
• Buffer memory: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10 000 bytes
• PoE input voltage: 44–57 VDC
• Power consumption: Idle 9 W / Max 330 W / PoE Max 300 W

Ports

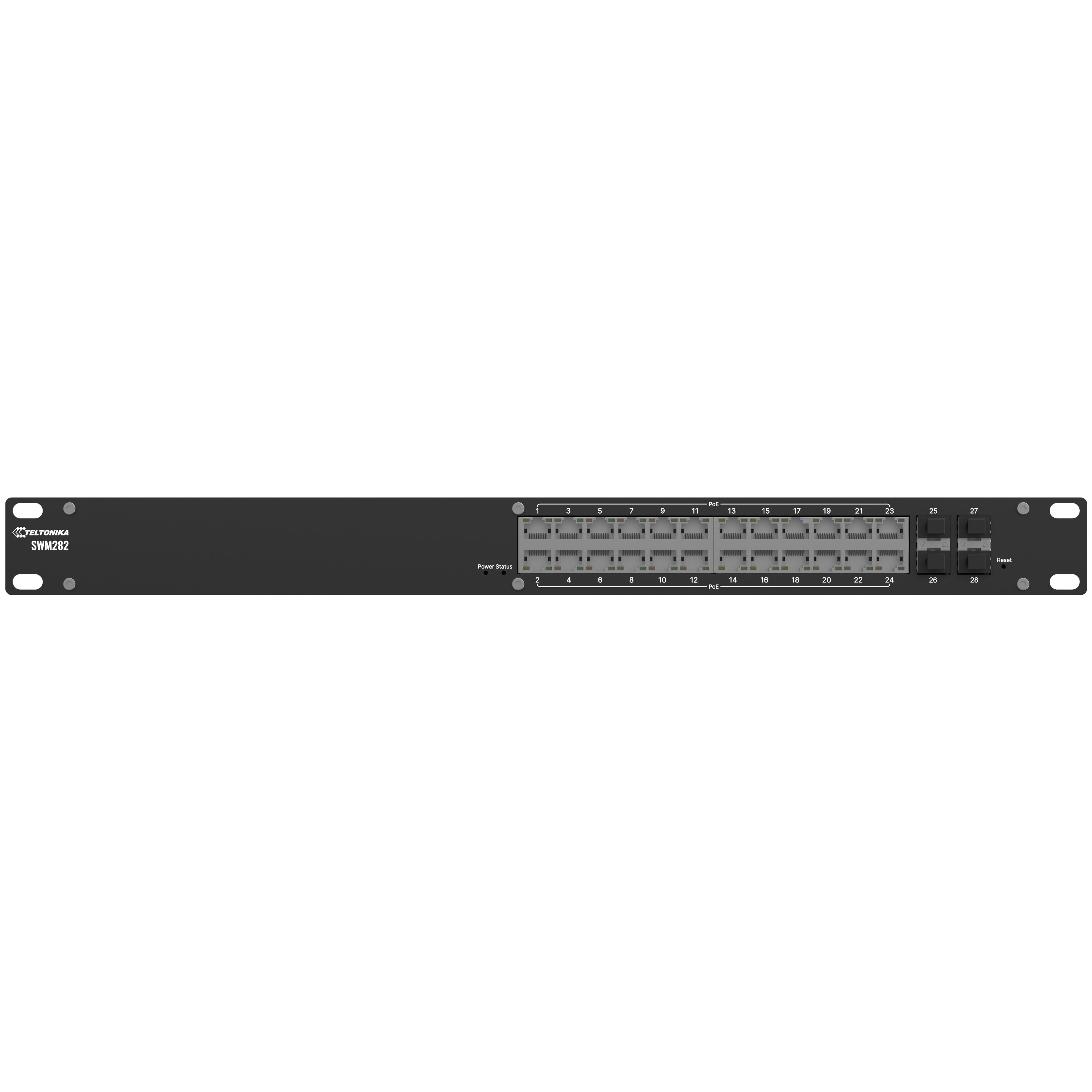

• Ethernet: 24 × RJ45 ports (10/100/1000 Mbps)
• SFP: 4 × SFP ports

Physical and environmental

• IP rating: IP30
• Operating temperature: 0 °C – 50 °C
• Dimensions (W × H × D): 483 × 44 × 234 mm
• Weight: 1770 g
• Mounting options: Rack-mountable

What’s in the box

• SWM282 L2+ managed switch
• QSG (Quick Start Guide)
• Packaging box
