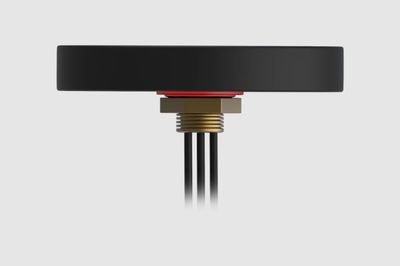

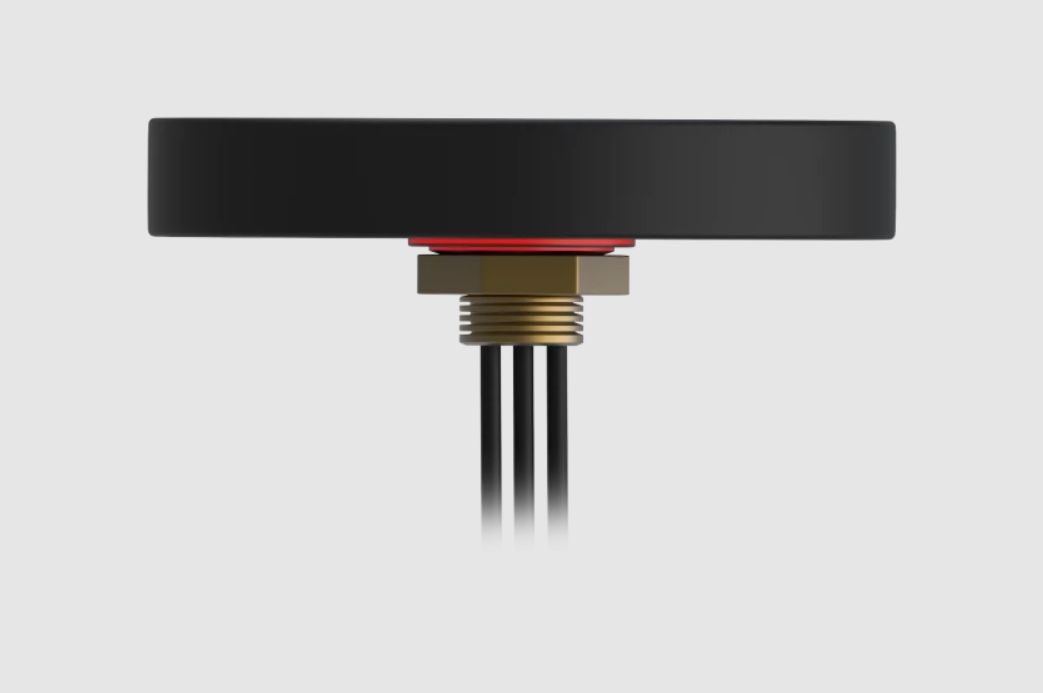

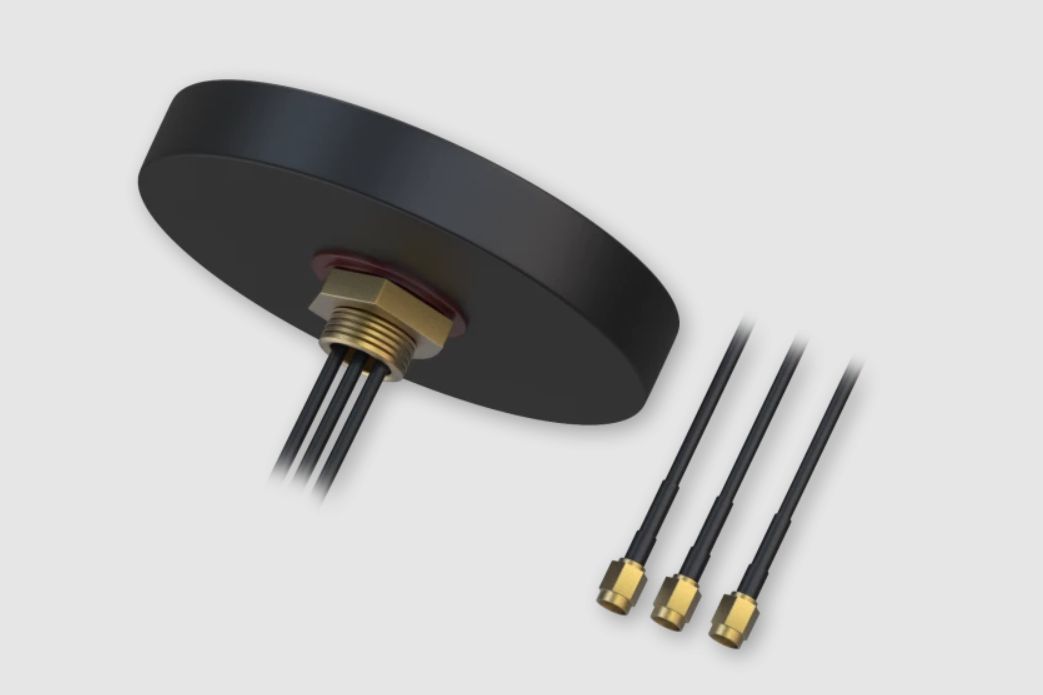

Combo SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna is a multi-purpose antenna designed for use with Teltonika routers. The antenna provides a combined single‑frequency antenna covering mobile, GNSS and Wi‑Fi networks.

The antenna is intended for roof mounting and is designed to withstand external weather conditions. It is made from high-quality materials to ensure durability and reliability.

Antenna technical specifications

GNSS Antenna

• Frequency range: 698 ~ 960, 1710 ~ 2690 MHz
• Polarization: RHCP
• Impedance: 50 Ω
• LNA gain: 28 ± 2 dB
• LNA noise figure: 1.5 dB
• Voltage: 2.7 – 5.0 VDC
• Current consumption: 15 mA
• LNA VSWR: 1.65
• Connector type: SMA male

LTE Antenna

• Frequency range: 850 / 900 / 1800 / 1900 / 2170 MHz
• Bandwidth: ± 90 / 280 MHz
• Polarization: Linear
• Gain: 3.5 dBi
• VSWR: 1.5 : 1
• Impedance: 50 Ω
• Connector type: SMA male

WiFi Antenna

• Frequency range: 2350 ~ 2500 MHz
• Bandwidth: ± 100 MHz
• Polarization: Linear
• Gain: 2.5 dBi
• VSWR: 1.5 : 1
• Impedance: 50 Ω
• Connector type: RP-SMA male

Mechanical specifications

• Mounting method: Screw
• Radome protection rating: IP65
• Radome material: Black ABS

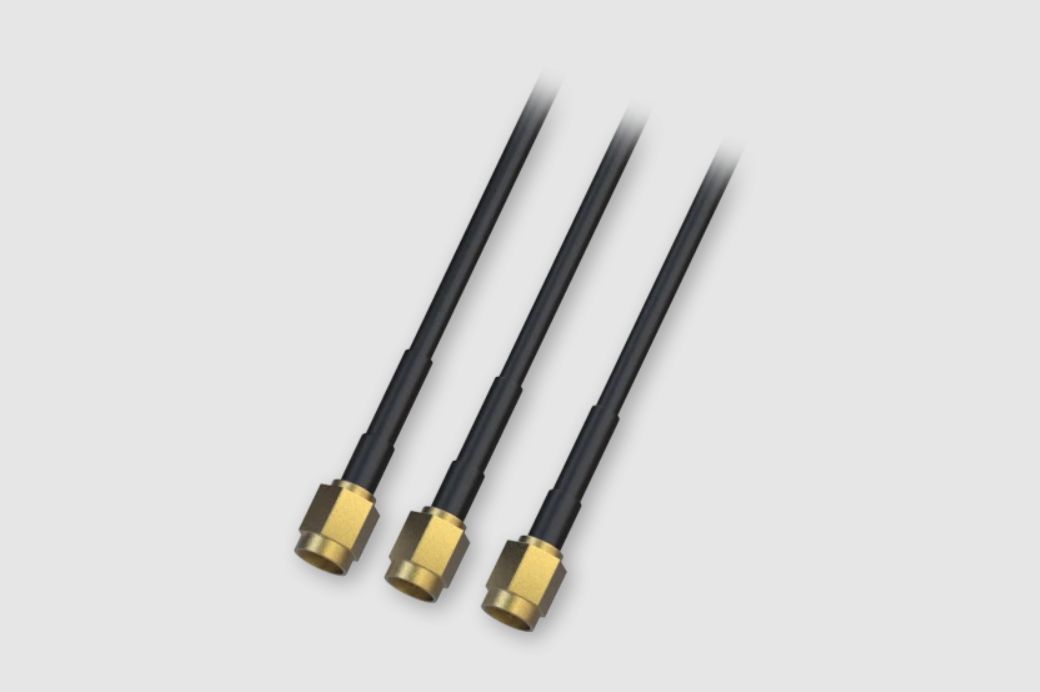

• Cable: 3x RG174, 3000 mm
• RoHS compliant: ✓
• Weight: 250 g

Compatible with the following Teltonika routers, among others:

• TRB245
• TRB255

Links

• FLYER // COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
