Technical specifications

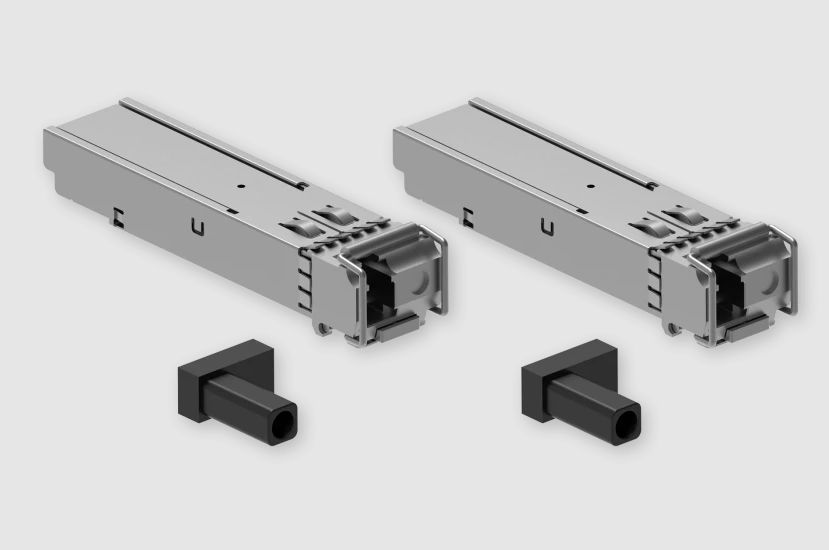

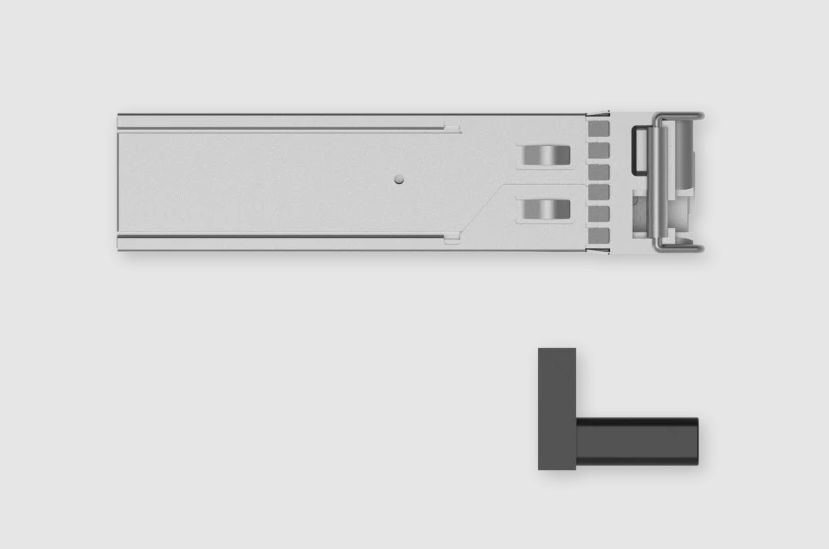

DS-IAE-SFP-G B20X-I_1.25G BIDI SFP135H-ECE3

• Connector: Simplex LC
• Supported media: Single-mode fiber
• Data rate: 1,25 Gb/s
• Max. power consumption: < 0,8 W
• Cable distance: Up to 20 km with G.652 SMF fiber
• Operating humidity: 5–85 %
• Transmit wavelength (TX): 1310 nm
• Receive wavelength (RX): 1550 nm
• Temperature range: -40 °C ~ +85 °C
• Enclosure: Fully metal enclosure for low EMI and excellent ESD protection
• RoHS: ✓
• REACH: ✓

DS-IAE-SFP-G B20X-I_1.25G BIDI SFP155H-ELE1

• Connector: Simplex LC
• Supported media: Single-mode fiber
• Data rate: 1,25 Gb/s
• Max. power consumption: < 0,8 W
• Cable distance: Up to 20 km with G.652 SMF fiber
• Operating humidity: 5–85 %
• Transmit wavelength (TX): 1550 nm
• Receive wavelength (RX): 1310 nm
• Temperature range: -40 °C ~ +85 °C
• Enclosure: Fully metal enclosure for low EMI and excellent ESD protection
• RoHS: ✓
• REACH: ✓
