Description

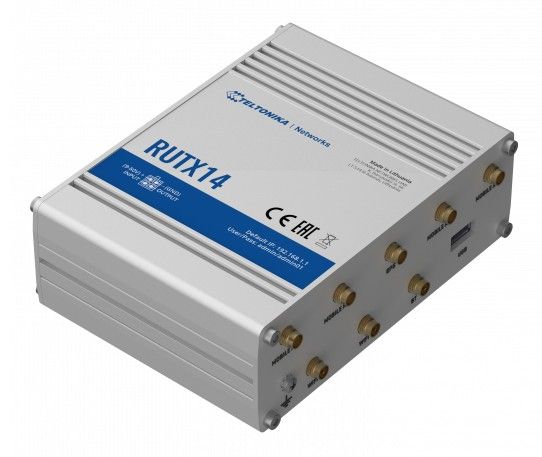

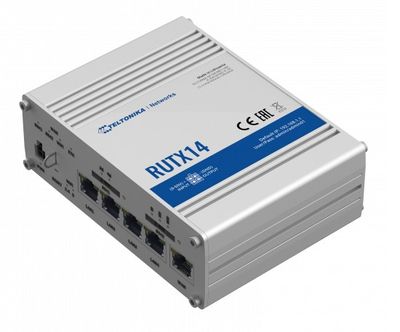

RUTX14 is the fastest single modem LTE router in our portfolio.

5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM for advanced throughput and ultra-reliable connectivity.

Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention.

Combination of fast CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.

Key features

• 4G LTE CAT12 - Download up to 600 Mbps. Upload up to 150 Mbps
• WIFI & BT - Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
• DUAL SIM - With auto failover, backup WAN and other switching scenarios
• LOAD BALANCING - Allows to use multiple WAN sources to increase throughput
• GNSS - Global Navigation Satellite System for location services with geofencing functionality
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 12)
• CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Memory: 256 MBytes Flash, 256 MBytes RAM
• Powering option: 4 pin power socket, 9-50 VDC
• SIM: 2 x External SIM holders (2FF)
• Antenna connectors: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
• Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
• WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11n/ac 5GHz, Access point (AP), Station (STA)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Connectors: 1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth
• Bluetooth: 4.0 (Low energy)
• Inputs/Outputs: On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
• Other: 1 x USB host, 1 x Grounding screw
• Status LEDs: 4 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option and grounding capability
• Dimensions (W x H x D): 132 x 44 x 95 mm
• Weight: 515 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list (planned), Data/SMS
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai

Standard package contains

• Router RUTX14
• 24 W PSU
• 4 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
