Description

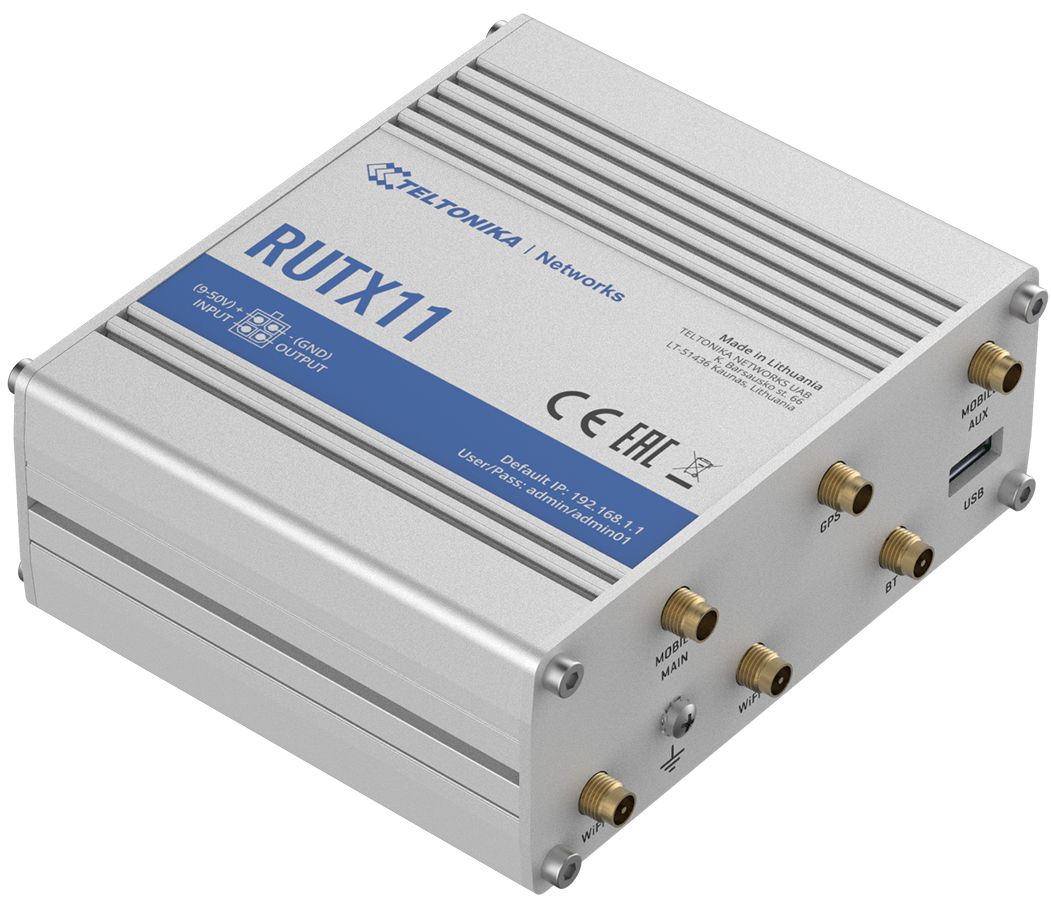

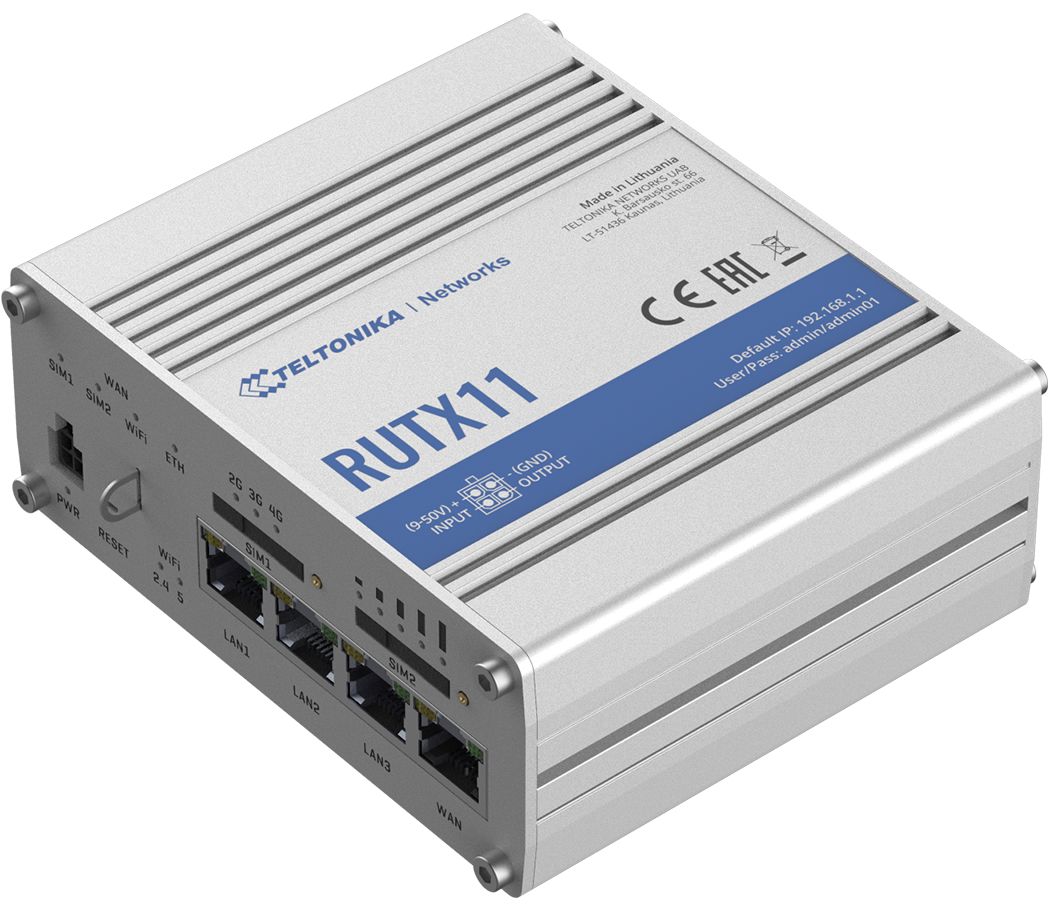

RUTX11 is a very powerful device equipped with Dual-SIM with auto Failover, Backup WAN, and other SW features.

A wide range of internal hardware interfaces allows this product to be used in power-hungry industrial applications where speed and robustness are at the heart of the solution.

4G LTE – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows for a seamless data transfer experience with auto-failover and a backup WAN.

Bluetooth LE allows sensors to be connected directly to the router, thus minimizing the overall solution ecosystem.

Key features

• 4G LTE CAT 6 - Cellular speeds up to 300Mbps with Carrier Aggregation
• GNSS - Global Navigation Satellite System for location services and time synchronization
• DUAL SIM - With auto failover, backup WAN and other switching scenarios
• PROTOCOLS - Multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
• WIFI & BT - Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 6), 3G
• CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Memory: 256 MBytes Flash, 256 MBytes RAM
• Powering option: 4pin power socket, 9-50 VDC
• SIM: 2 x External SIM holders (2FF)
• Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
• Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Bluetooth: 4.0 (Low energy)
• Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
• Other: 1 x USB host
• Status LEDs: 4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x WiFi, 8 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option and grounding capability
• Dimensions: 115 x 44 x 95 mm
• Weight: 456 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
• GNSS: NMEA forwarding, AVL, Geofencing

Standard package contains

• Router RUTX11
• 18 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
