Description

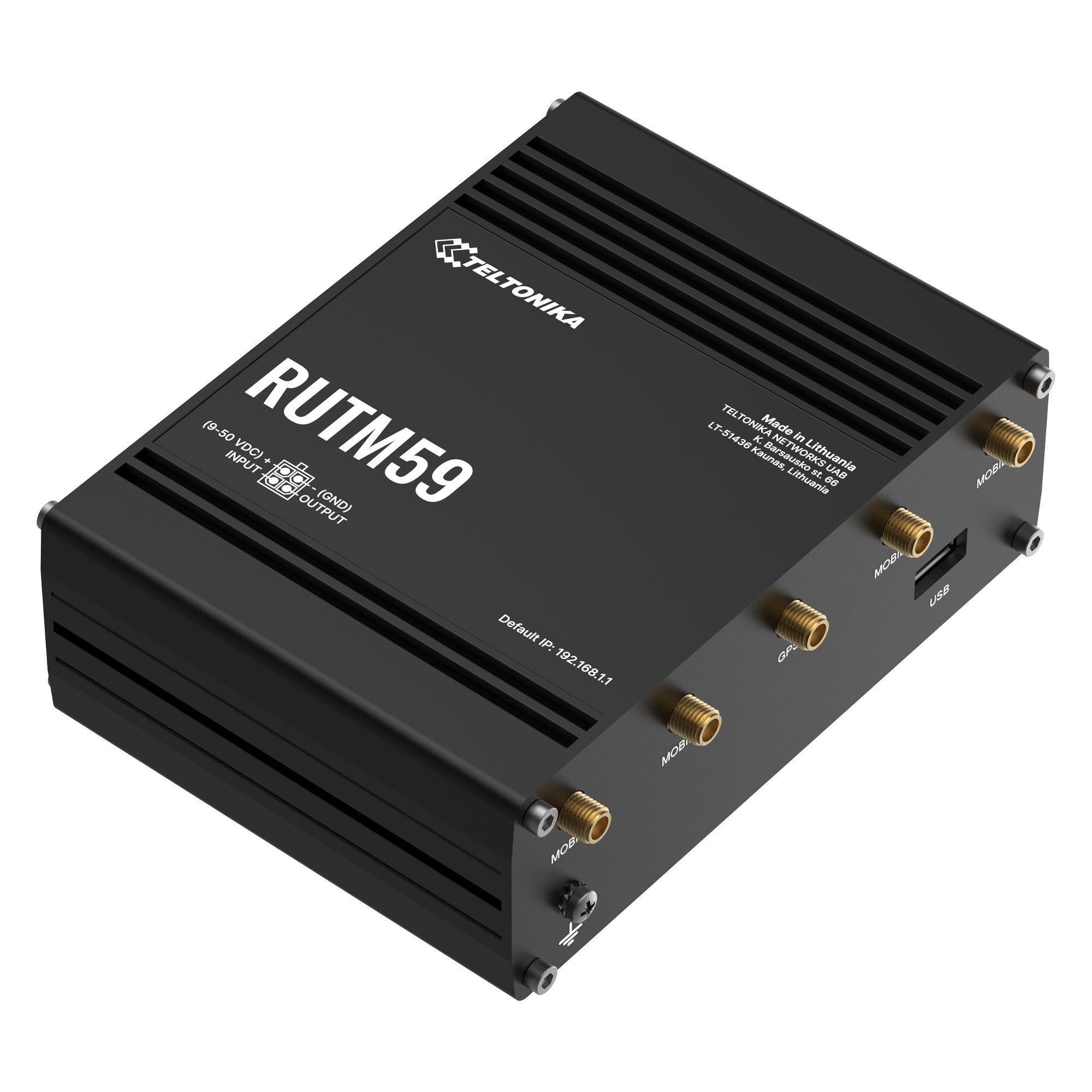

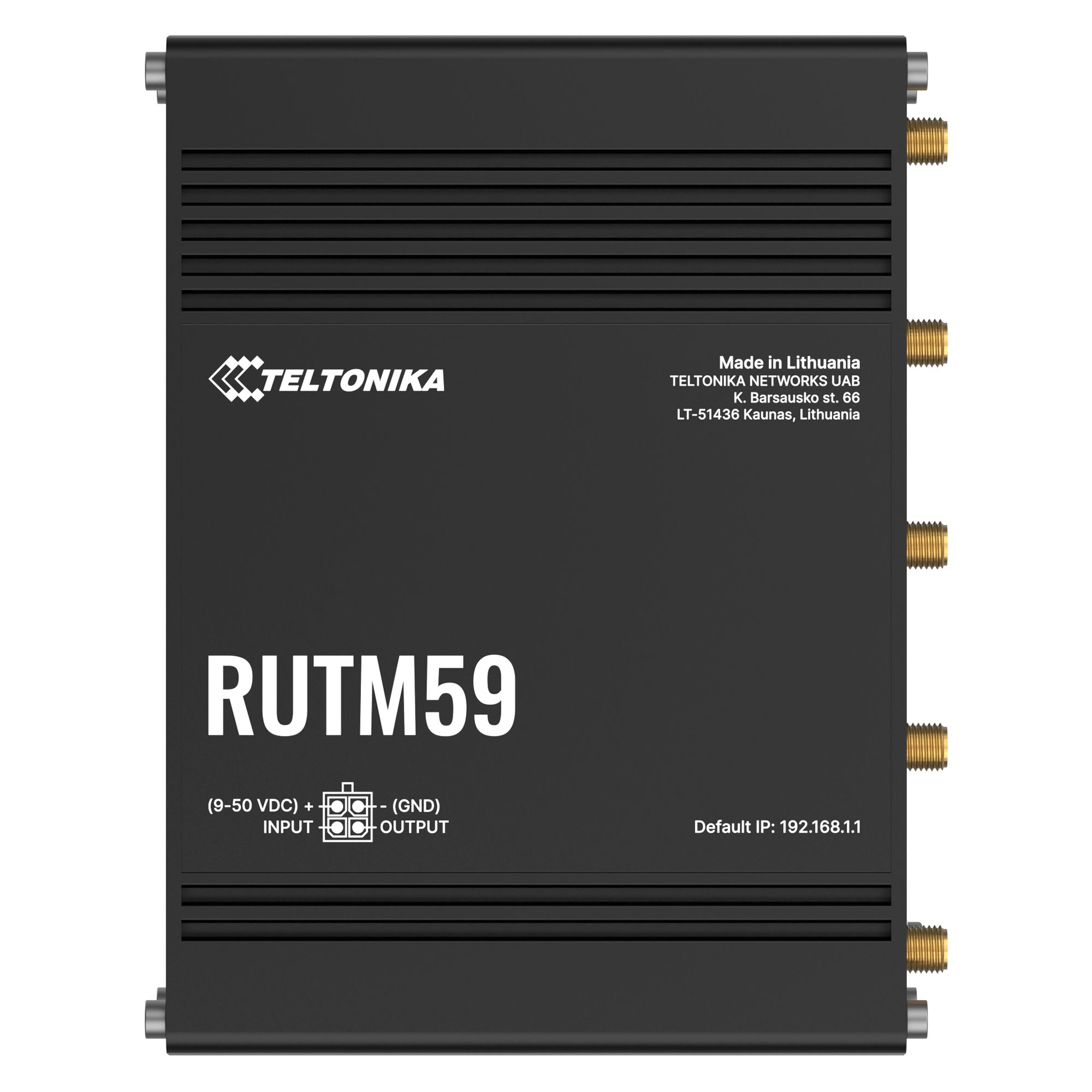

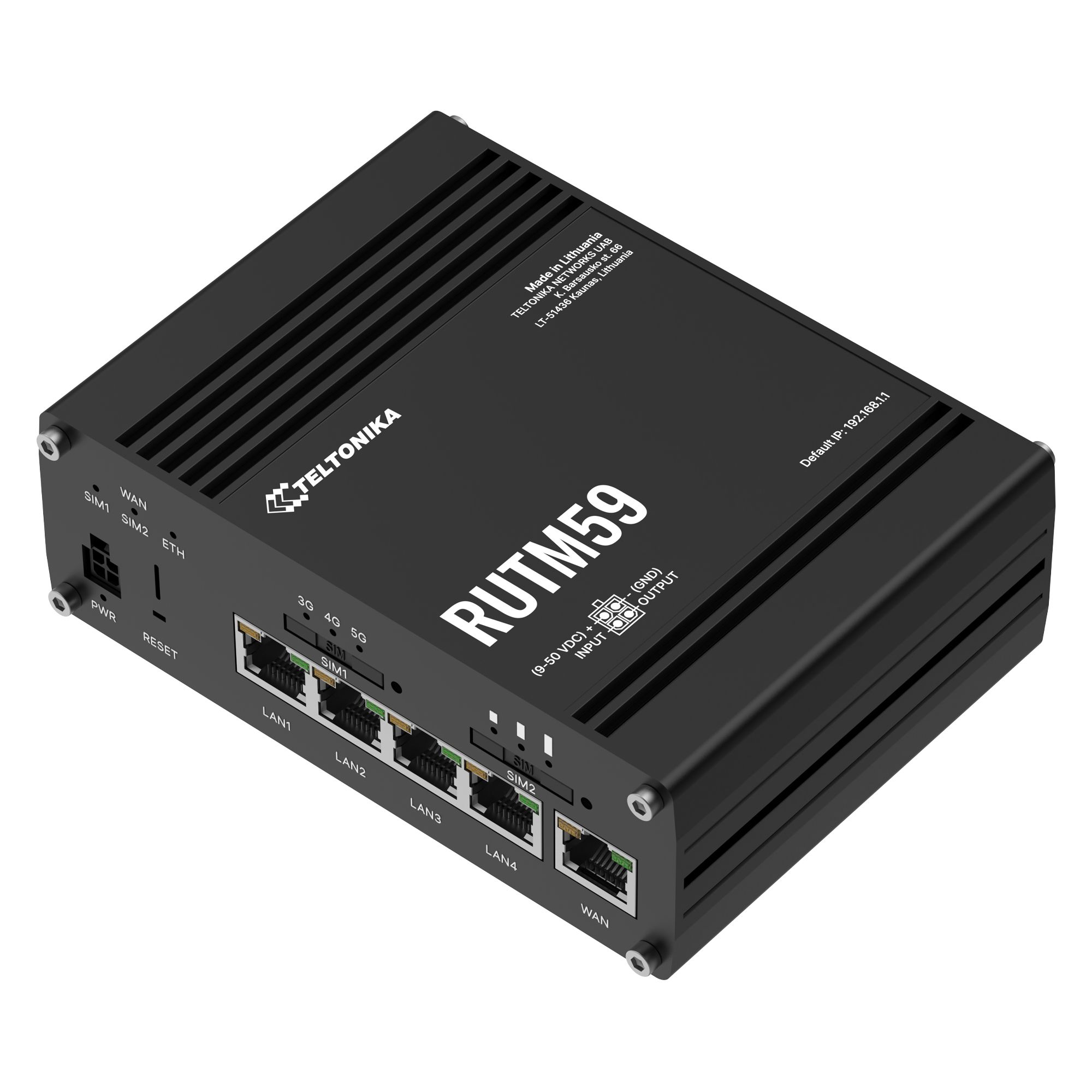

RUTM59 is a cellular 5G router that provides extremely fast mobile connections up to 3.4 Gbps. This 5G router includes two SIM card slots with automatic failover, failover WAN and other switching scenarios. RUTM59 is equipped with five gigabit RJ45 ports, supports both SA and NSA 5G architectures and is backward compatible with 4G (LTE Cat 19) — ensuring fast, uninterrupted connectivity and long-term scalability at an affordable price.

Key features

• Backward compatible with 4G (LTE CAT 19)
• Automatic failover, failover WAN and other switching scenarios
• Extremely fast mobile connections up to 3.4 Gbps
• Supports both architectures to leverage 5G infrastructure

Hardware

• Cellular: 5G Sub-6 GHz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6 Gbps (4x4 MIMO) / UL Cat 18 200 Mbps
• Processor: MediaTek, dual-core, 880 MHz, MIPS1004Kc
• RAM: 256 MB, DDR3
• Storage: 16 MB serial-NOR Flash, 256 MB serial-NAND Flash
• Power options: 4-pin industrial DC power connector, 9 - 50 VDC
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

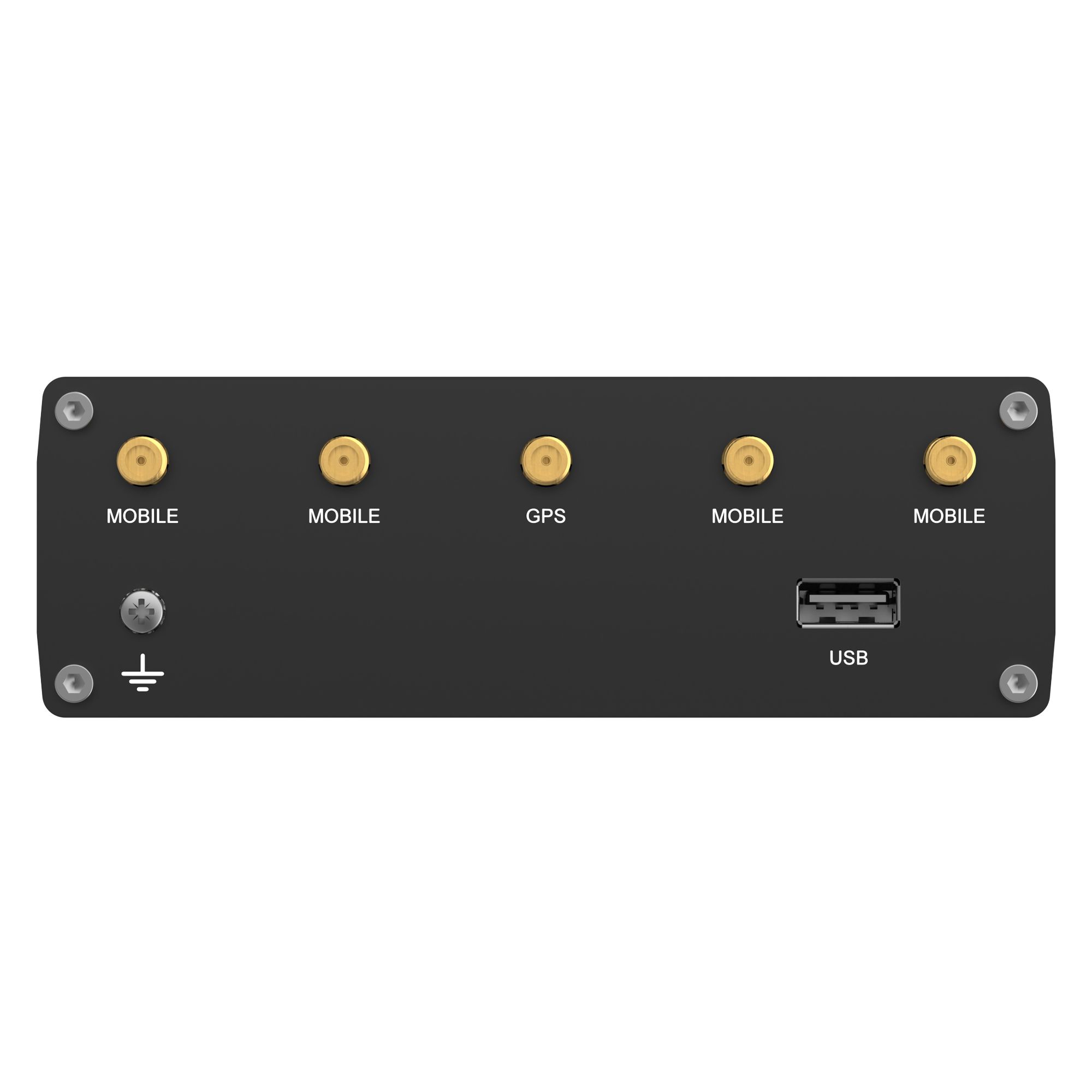

• Antenna connectors: 4 x SMA for cellular, 1 x SMA for GNSS

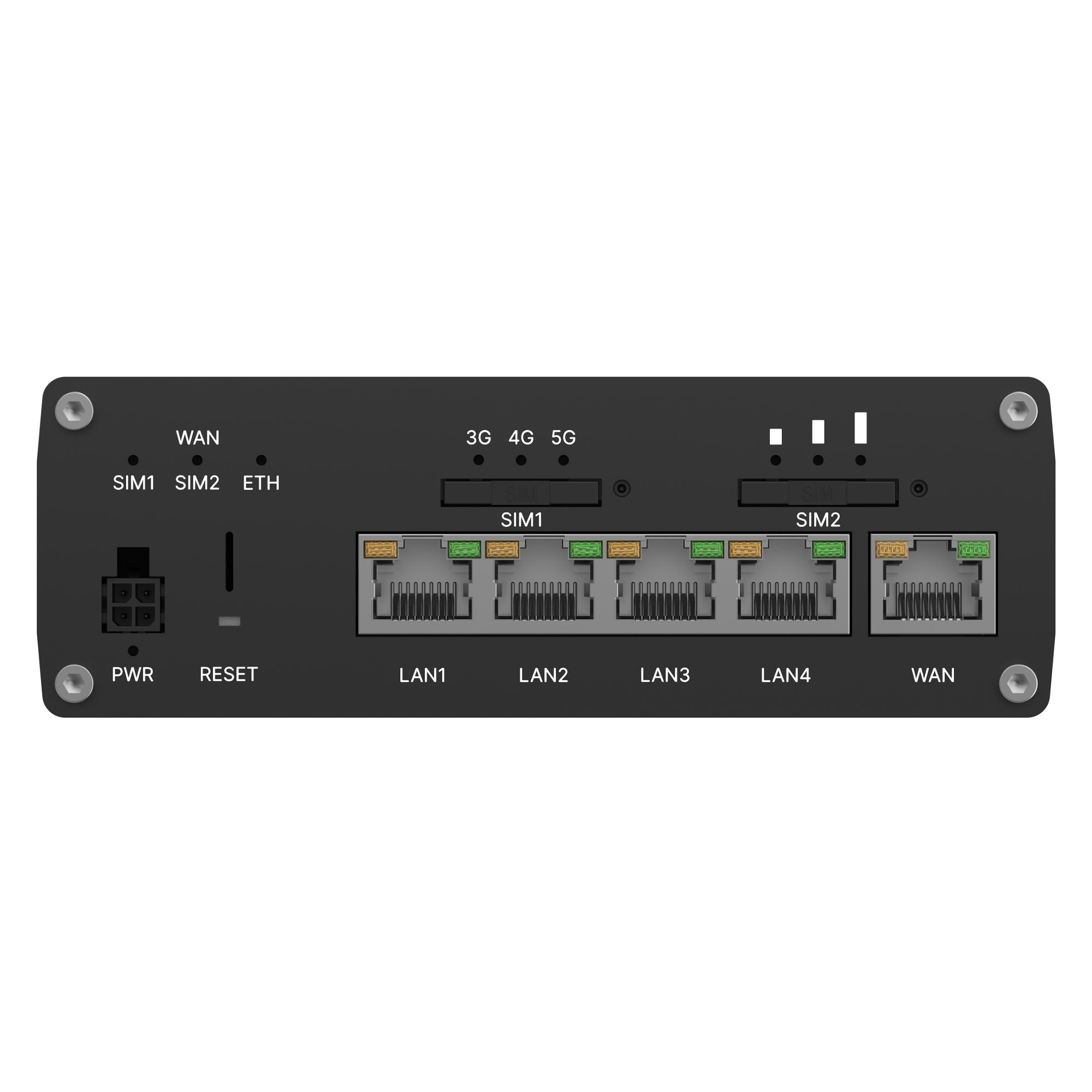

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Inputs/Outputs: 1 x Digital input, 0 - 6 V detected as low, 9 - 50 V detected as high, 1 x Digital output, open-collector output, maximum output 50 V, 300 mA
• Grounding: 1 x Grounding screw
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum case
• Dimensions (L x H x D): 132 x 44.2 x 95.1 mm
• Weight: 530 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Cellular features: SIM switching, status, SMS, USSD, Black/White list, Multiple PDN connections, Frequency control, SIM idle protection, SIM PIN management, APN, Bridging, Pass-through, Framed routing
• Network features: Routing, Network protocols, VoIP pass-through, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS, Smart queue management (SQM), DNS over HTTPS, DDNS, Network redundancy, Load balancing, SSHFS, VRF support, Traffic shaping
• Security: Authentication, Firewall, Intrusion prevention, VLAN, Cellular data quota management, WEB filtering, Access control, SSL certificate generation, 802.1x
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
• Monitoring and management: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
• Services: OPC UA, Modbus, Data to server, Modbus MQTT GATEWAY, DNP3, DLMS, Teltonika Networks Web API (beta) support
• Location tracking: GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing

Package contents

• RUTM59 router
• 18 W power adapter
• 4 x Cellular antenna (articulated, SMA male)
• 1 x GNSS antenna (adhesive mount, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM adapter pack
• QSG (Quick Start Guide)
• Packaging box
