Description

RUTM54 is a powerful 5G router with dual SIM and eSIM support, ideal for data-intensive applications that require a reliable and fast connection. Equipped with a global Telit 5G modem, the RUTM54 delivers excellent connectivity and consistent performance. Its five gigabit Ethernet ports and dual-band Wi-Fi provide a strong backup connection, and automatic failover ensures uninterrupted operation. With backward compatibility with 4G and a variety of connectivity options, the RUTM54 is designed for seamless scalability and future upgrades.

Key features

• Module manufactured in Europe
• Automatic backup connection, backup-WAN and other failover scenarios
• Extremely fast mobile network, up to 3,4 Gbps
• Supports both architectures to leverage 5G infrastructure

Hardware

• Mobile network: 5G Sub-6GHz SA/NSA 2,5/3,4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1,6 Gbps DL, LTE Cat 18 211 Mbps UL; 3G – 42 Mbps DL, 5,7 Mbps UL
• eSIM: Consumer-type eSIM, profile download and deletion, up to 7 eSIM profiles; does not include data packages
• Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) up to 867 Mbps (Dual-band, MU-MIMO), 802.11r fast roaming, Access Point (AP), Station (STA)
• CPU: MediaTek, dual-core, 880 MHz, MIPS1004Kc
• RAM: 256 MB, DDR3
• Storage: 16 MB serial-NOR Flash, 256 MB serial-NAND Flash
• Power options: 4-pin industrial DC power connector, 9 - 50 VDC
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

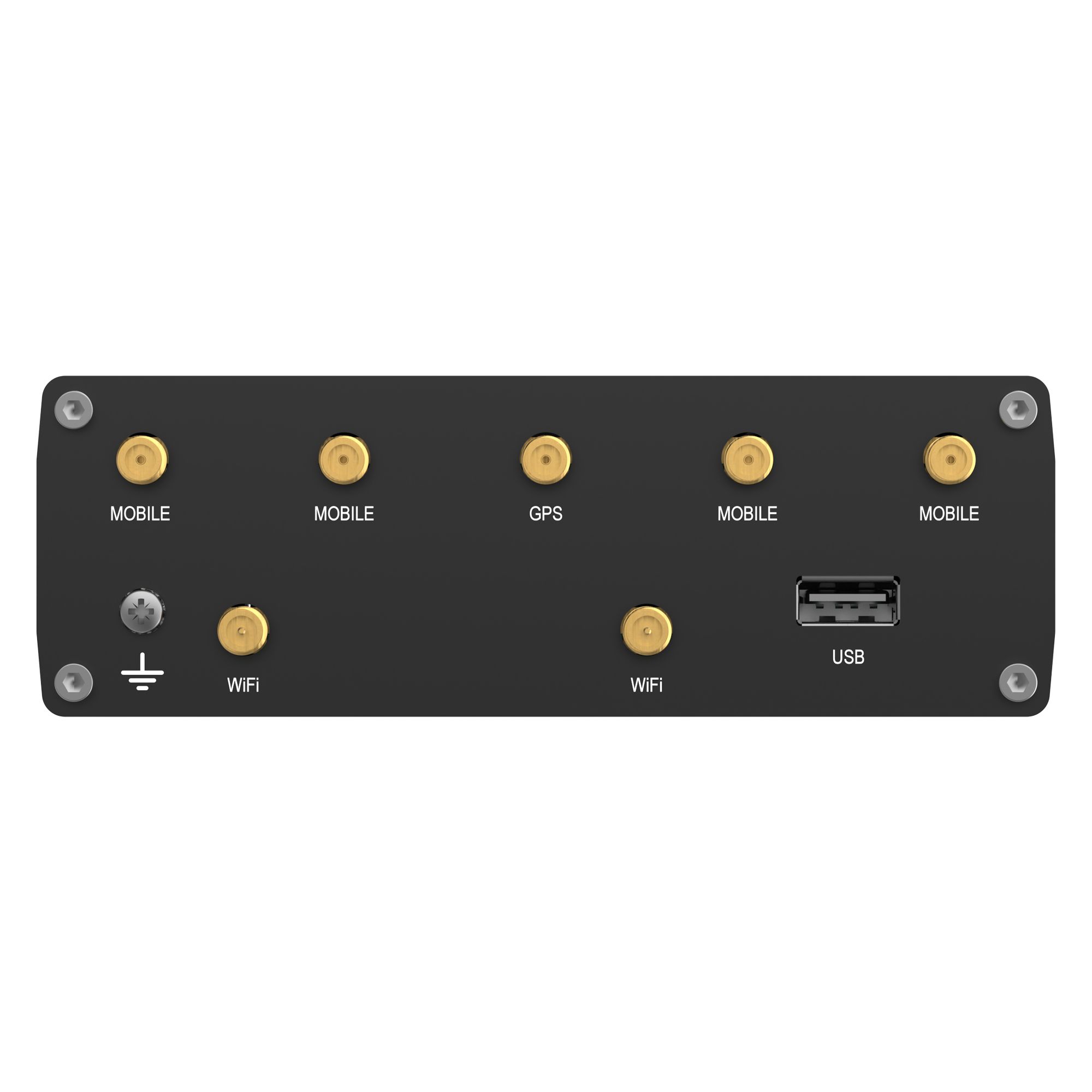

• Antenna connectors: 4 x SMA for mobile network, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Grounding: 1 x Grounding screw
• Operating temperature: -40 °C - 75 °C
• Enclosure: Anodized aluminum enclosure and panels
• Dimensions (L x H x D): 132 x 44.2 x 95 mm
• Weight: 530 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Mobile network features: SIM failover, status, SMS, USSD, Black/White list, Multiple PDN connections, Band control, SIM idle protection, SIM PIN management, APN, Bridging, Passthrough
• Wireless features: Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless connectivity features, Wireless MAC filter, Wireless QR code generator, TravelMate
• Network features: VoIP passthrough, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network redundancy, Load balancing, SSHFS, VRF support, Traffic shaping
• Security: Authentication, Firewall, Intrusion prevention, VLAN, Mobile network data quota management, WEB filtering, Access control, SSL certificate generation, 802.1x
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
• Monitoring and management: WEB interface, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
• Services: OPC UA, Modbus, Data to server, Modbus MQTT BRIDGE, DNP3, DLMS
• Location tracking: GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing

Package contents

• RUTM54 router
• 18 W power adapter
• 4 x Mobile antennas (articulated, SMA male)
• 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1,5 m cable)
• 1 x GNSS antenna (adhesive mount, SMA male, 3 m cable)
• Ethernet cable (1,5 m)
• SIM adapter pack
• QSG (Quick Start Guide)
• Packing box
