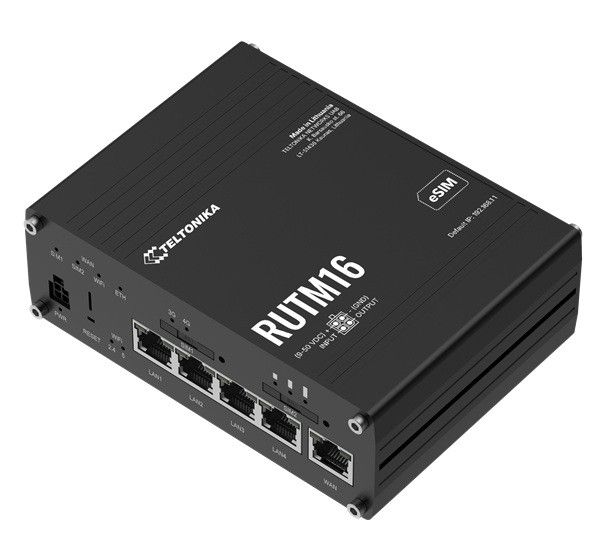

RUTM16 - a versatile and high-performance LTE router. The Telit modem enables 4G LTE Cat 6 speeds on multiple frequency bands, ensuring a reliable connection across different markets. Equipped with five Gigabit Ethernet ports, a USB interface and a dual-band Wi-Fi 5 network.

Integrated eSIM allows remote management of operator profiles without on-site maintenance visits, making the RUTM16 a cost-effective solution for deployments where devices are located long distances from each other or from the operations center.

Features

• 4G LTE Cat 6 up to 300 Mbps (DL) / 50 Mbps (UL), 3G support up to 42 Mbps
• 3GPP Release 12 compatibility
• Integrated eSIM, up to 7 profiles
• 2 × SIM card slots + eSIM with automatic switching
• Extensive mobile connection and signal status monitoring
• Wi-Fi 5 (802.11b/g/n/ac Wave 2), up to 867 Mbps
• Mesh networks, Fast Roaming and up to 150 concurrent users

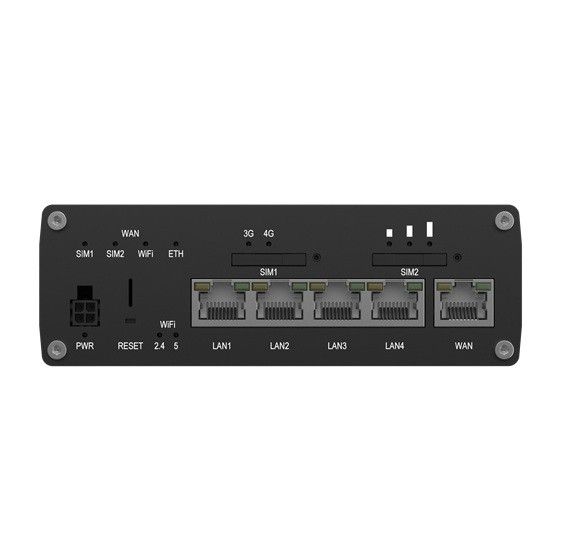

• 5 × Gigabit Ethernet (1 × WAN, 4 × LAN) and USB port
• Bridge and Passthrough functions
• Static and dynamic routing (BGP, OSPF, RIP)
• Load balancing and automatic failover
• QoS and Smart Queue Management
• Extensive protocol support (IPv4/IPv6, MQTT, SNMP, SSH, HTTP/HTTPS)
• Advanced security features: firewall, NAT, VLAN, intrusion prevention
• VPN support: OpenVPN, IPsec, WireGuard, L2TP, GRE, DMVPN
• 802.1X authentication and certificate management
• IoT protocols: MODBUS, MQTT, OPC UA, DNP3, DLMS/COSEM
• Data to Server functionality and LUA scripts
• Digital I/O interfaces and event-driven control
• Management via Web UI, SSH, SMS and JSON-RPC API
• Remote management with RMS system
• Cloud integrations: Azure IoT Hub, AWS IoT Core, Cumulocity
• MediaTek Dual-Core 880 MHz processor
• 256 MB RAM, 16 MB NOR + 256 MB NAND Flash
• GNSS support: GPS, GLONASS, Galileo, BeiDou
• Operating temperature −40 °C – +75 °C
• Durable aluminum housing, DIN-rail and wall mounting

Package includes

• RUTM16 LTE router
• Power connector
• Quick guide
