Description

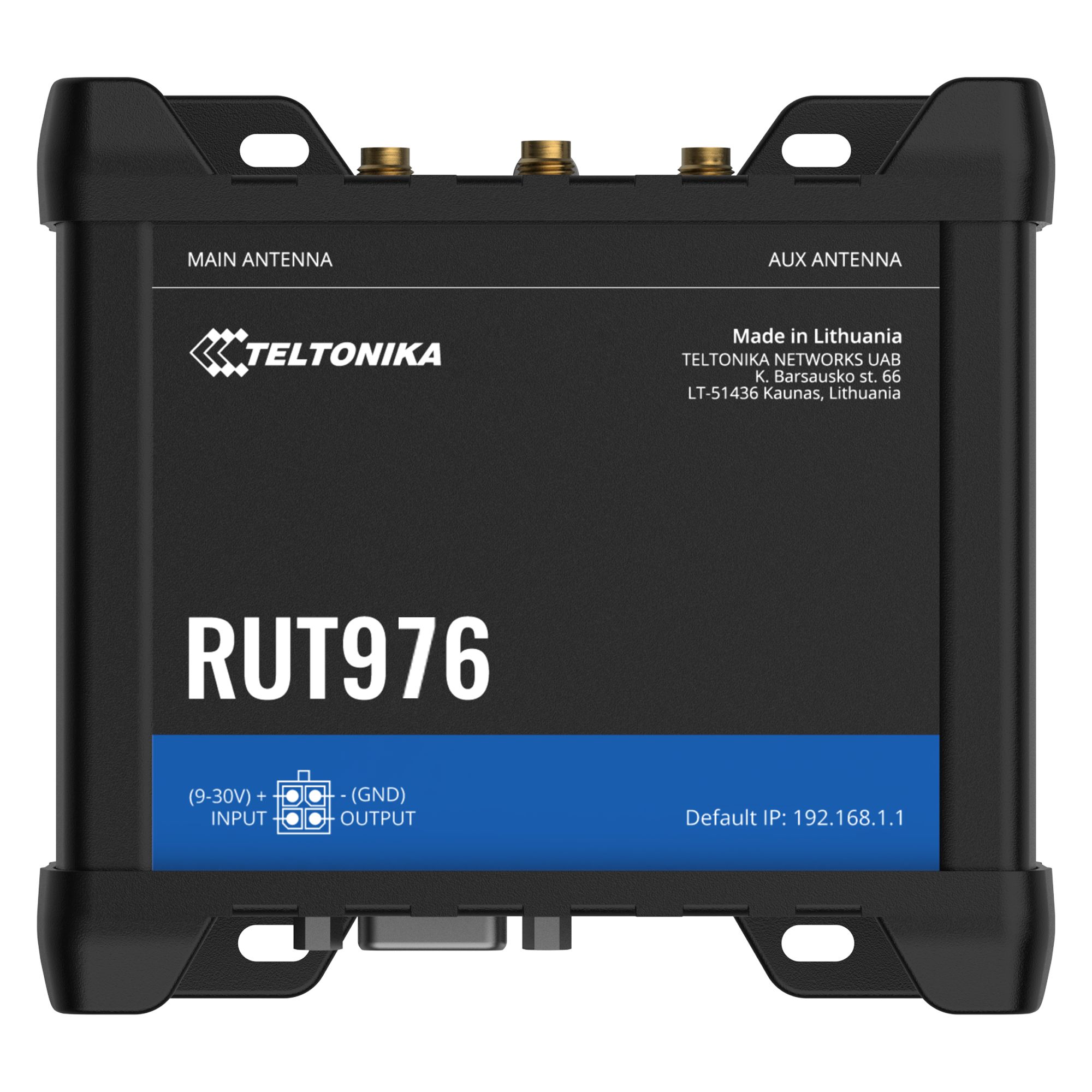

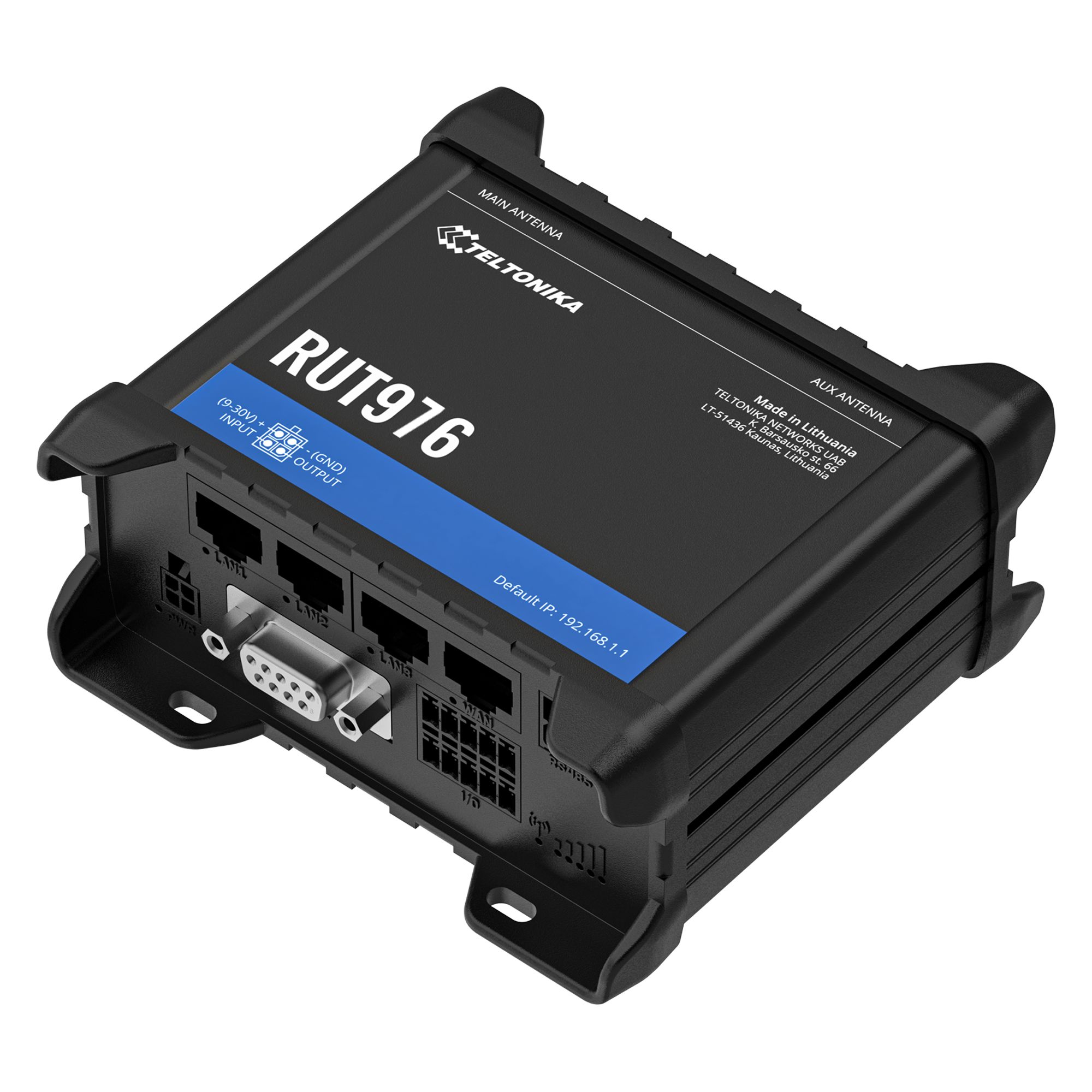

RUT976 is an industrial-grade RedCap 5G router designed for SA architecture, positioned between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 endpoints and offers 5G low latency at an affordable price. In cases of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also provides dual SIM slots with automatic failover, Wi-Fi, GNSS, a wide range of interfaces including four 10/100 RJ45 ports, RS232, RS485 and multiple I/O interfaces, plus numerous other excellent features for professional use.

Key features

• Ethernet, RS232, RS485 and multiple I/O interfaces
• Backward compatible with 4G LTE Cat 4
• Low latency, high capacity, affordable price
• Automatic failover, failover WAN and other switching scenarios

Hardware

• Cellular network: 5G Sub-6GHz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
• Processor: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Storage: 32 MB, NOR Flash
• Power options: 4-pin industrial DC power connector, 9 - 30 VDC
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, 2 x MFF2 eSIM (installable on request)
• SD card: Micro SD (internal)
• Antenna connectors: 2 x SMA for cellular, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

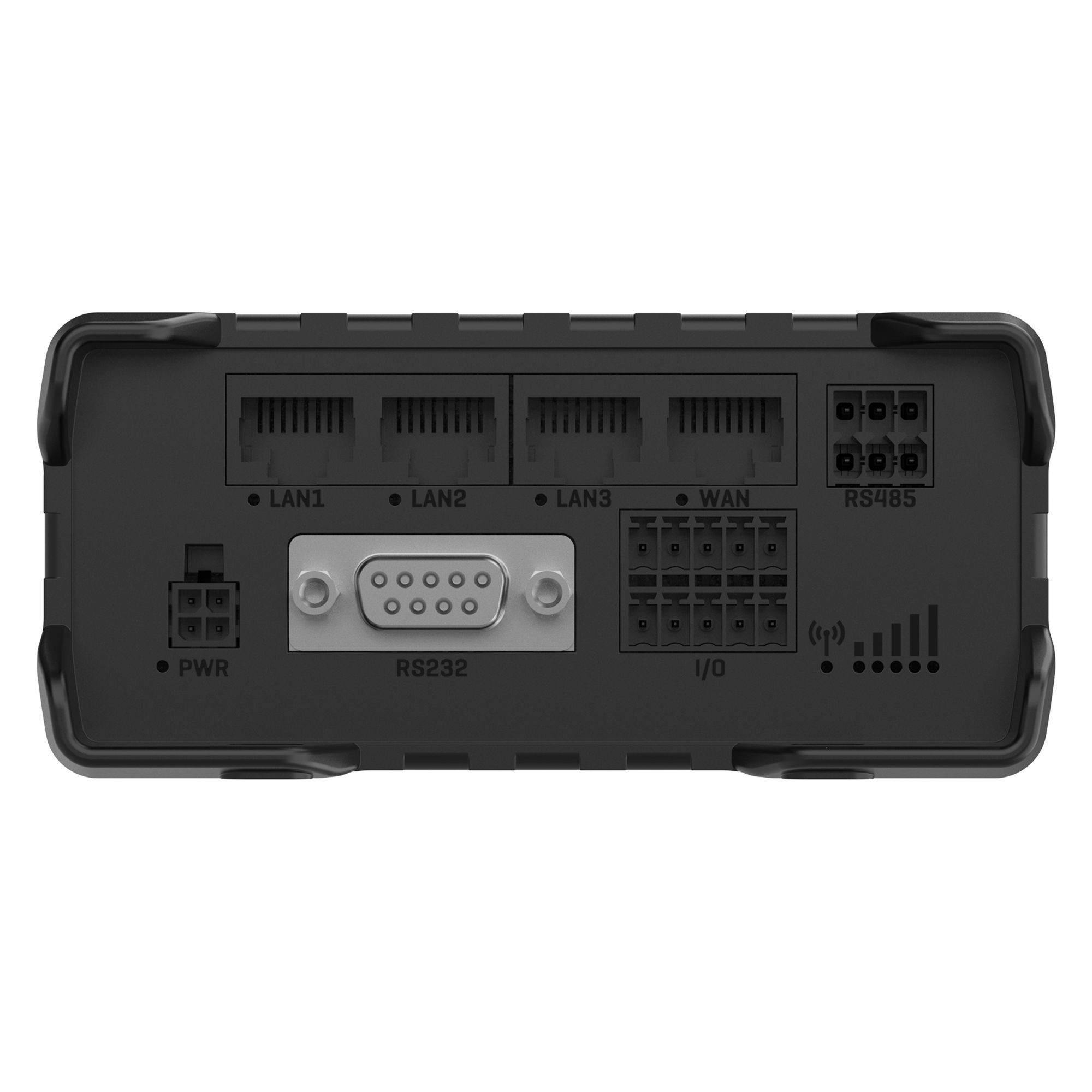

• Ethernet: 4 x RJ45 ports, 10/100 Mbps: 1 x WAN (configurable as LAN), 3 x LAN
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Serial interfaces: RS232, RS485
• Grounding: 1 x grounding screw
• LEDs: 1 x dual-color status LED, 5 x cellular signal strength LEDs, 4 x ETH status LEDs, 1 x power LED
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum case, plastic panels
• Dimensions (L x H x D): 110 x 50 x 100 mm
• Weight: 295 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Cellular features: SIM switching, status, SMS, USSD, Black/White list, Multiple PDN connections, Frequency control, SIM idle protection, SIM PIN management, APN, Bridging, Pass-through, Routed forwarding
• Network features: VoIP pass-through, Network management, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS
• Security: Authentication, Firewall, Intrusion prevention, VLAN, Cellular data quota management, WEB filtering, Access control, SSL certificate generation
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Monitoring and management: WEB interface, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
• Cloud solutions: RMS, Cloud of Things, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub
• Services: BacNET, OPC UA, Modbus, Data to server, Modbus MQTT BRIDGE, DNP3, DLMS
• Location tracking: GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing

Package contents

• RUT976 router
• 9 W power adapter
• 2 x 5G mobile antenna (articulated, SMA male)
• 2 x Wi-Fi antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• GNSS antenna (adhesive mount, SMA male, 3 m cable)
• RS485 terminal block
• I/O terminal block
• Ethernet cable (1.5 m)
• SIM adapter pack
• QSG (Quick Start Guide)
• Packaging box
