Note!

This product is EOL. It will remain available for orders until 31.7.2023. Software updates are offered until 30.6.2024 and critical security updates until 31.12.2025. Replacement models are RUT951 and RUT901.

Description

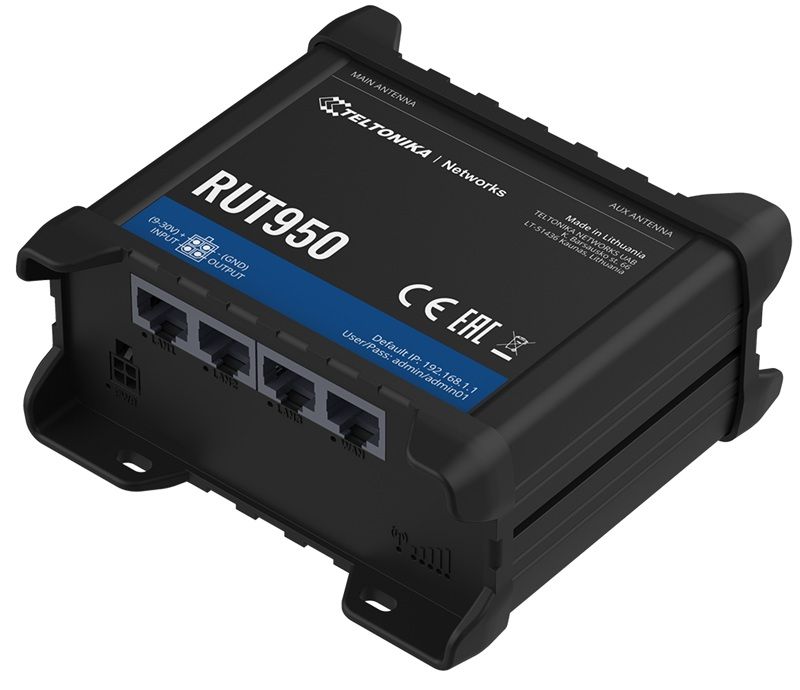

• RUT950 is a high-performance industrial 4G LTE Wi-Fi router designed as a Main/Backup internet source and guarantees a reliable internet connection with high data throughput and data redundancy.
• Compatible with the Teltonika Networks Remote Management System (RMS) for easy and secure monitoring.
• It has four Ethernet ports, two external SIM holders, digital I/O, and signal strength status LED indicators.
• Powered by RutOS - a unified operating system for all Teltonika Networks routers, this device is highly secure and customizable.

Key features

• Connectivity - 4G/LTE (Cat 4), 3G, 2G
• Dual SIM - With auto failover, backup WAN and other switching scenarios
• WAN failover - Automatic switching to available backup connection
• Ethernet - 4x Ethernet interfaces with VLAN functionality
• WiFi - Wireless Access Point with Hotspot functionality
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 4), 3G, 2G
• CPU: Atheros, MIPS 74Kc, 550 MHz
• Memory: 16 MBytes Flash, 128 MBytes RAM
• Powering option: 4 pin power socket, 9-30 VDC
• SIM: 2 x External SIM holders (2FF)

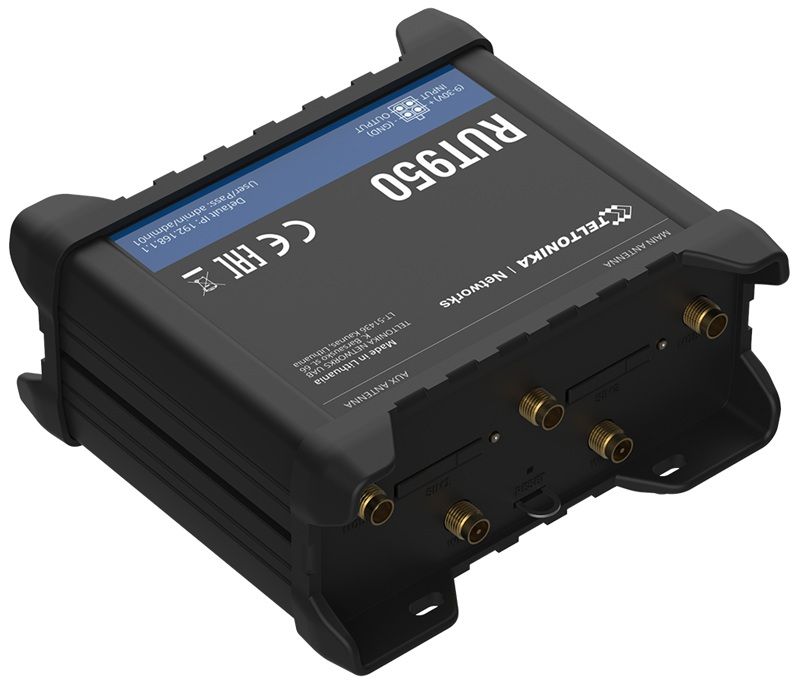

• Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi
• Ethernet: 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
• Inputs/Outputs: On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
• Status LEDs: 1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
• Dimensions (W x H x D): 109 x 50 x 103 mm
• Weight: 263 g

Note! This model is equipped with Quectel cellular module.

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, NHRP), Routing rules
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
• SMS features: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email,
  SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging

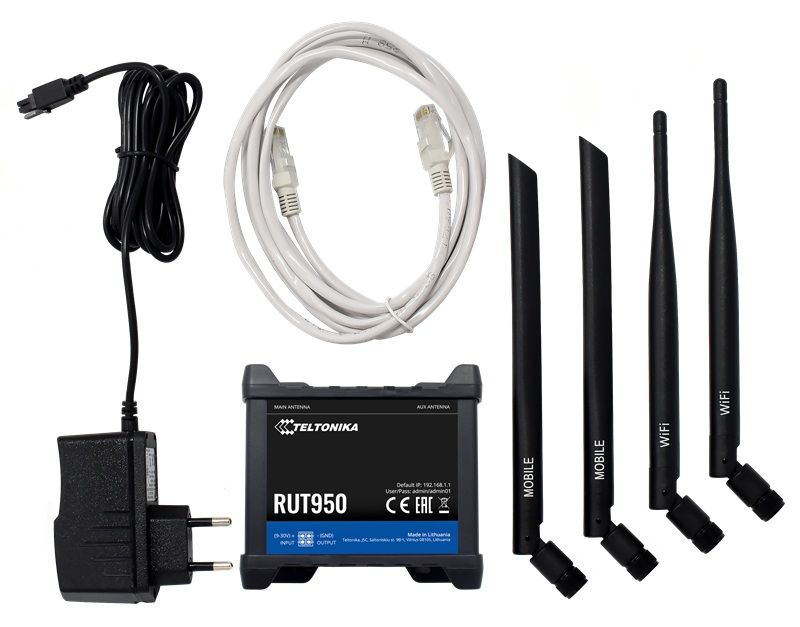

Standard package contains

• Router RUT950
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• SIM Adapter kit
• Ethernet cable (1.5 m)
• RMS Flyer
• QSG (Quick Start Guide)
• Packaging box
