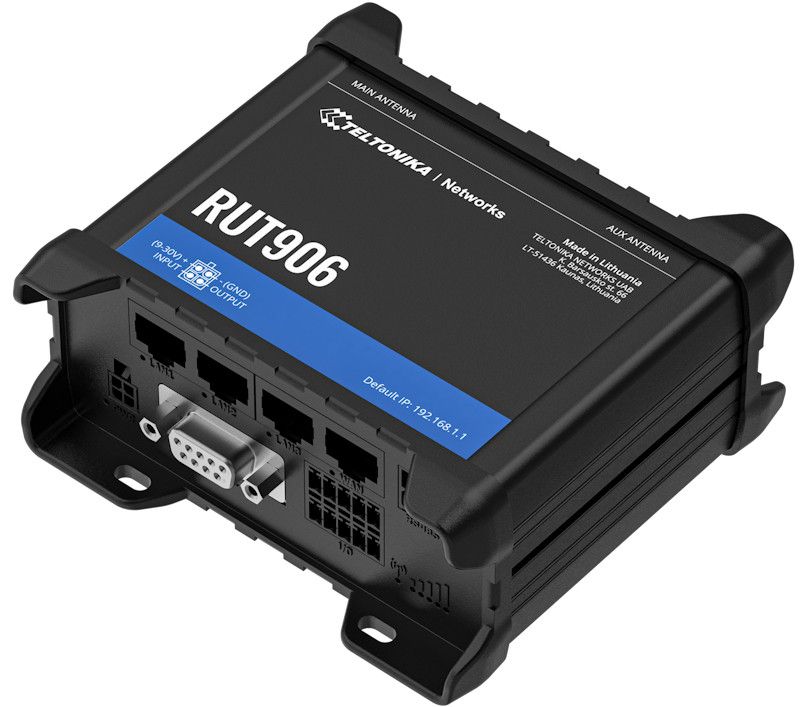

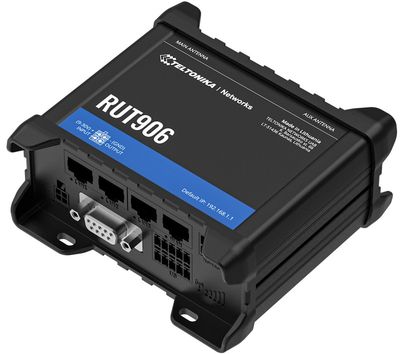

Mobile network 4G router for industrial IoT applications, supporting serial interfaces such as RS232 and RS485, and protocols like MQTT and BACnet, digital I/O, Ethernet and much more. This mobile router includes GNSS positioning and connection redundancy improving Dual SIM, backup WAN.

Features

• CONNECTIONS: 4G LTE (Cat 4), 3G, 2G
• DUAL SIM: Automatic switch to backup connection, backup WAN and other switching scenarios.
• INTERFACES AND PROTOCOLS: MQTT, BACnet, OPC UA, I\/Os, Ethernet and much more.
• GNSS: NTRIP, positioning services and time synchronization.

Specifications

HARDWARE

• Mobile: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• CPU: Mediatek, 580 MHz, MIPS 24KEc
• Memory: 128 MB, DDR2
• Storage: 16 MB, SPI Flash
• Powering options: 4-pin industrial DC power socket, 9 - 30 VDC, Passive PoE over spare pairs
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V\/3 V, external SIM holders, eSIM (Optional)

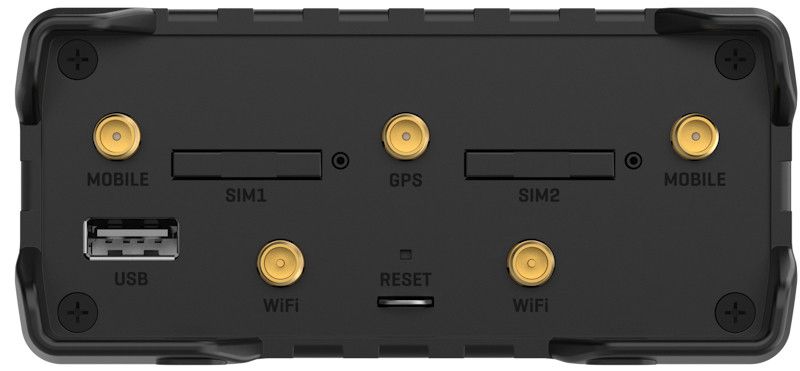

• Antenna connectors: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

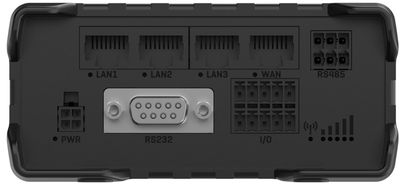

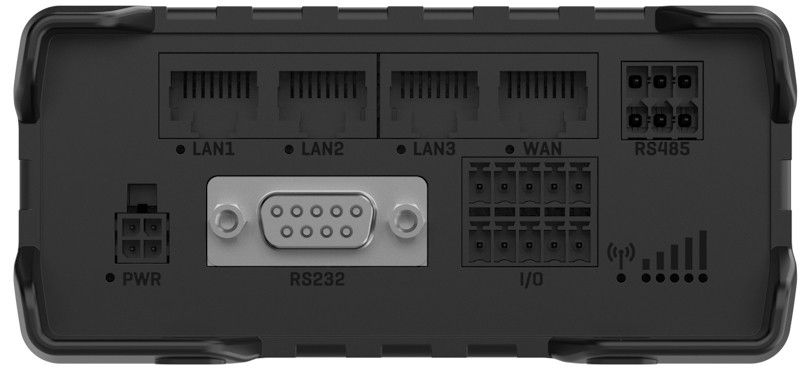

• Ethernet: 4 x 10\/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• Wi-Fi: IEEE 802.11b\/g\/n, Access Point (AP), Station (STA)
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Inputs\/Outputs: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
• Serial: 1 x RS232, 1 x RS485
• Other: 1 x USB host
• Status LEDs: 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing, plastic panels
• Dimensions (W x H x D): 109.5 x 50 x 100 mm
• Weight: 295 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, SIM switch, Operator black\/white list, Data\/SMS limits
• Network features: Routing, Failover, Firewall, DHCP, DDNS, QoS \/ SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS
• Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Wireless Connectivity Features: Fast roaming (802.11r), Relayd
• Hotspot: External\/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• GNSS: NMEA forwarding, NTRIP, AVL, Geofencing

Delivery

• Router RUT906
• 9 W PSU
• 2x Mobile antenna (magnetic mount, SMA male, 3 m cable)
• 2x Wi‑Fi antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• GNSS antenna (adhesive, SMA male, 3 m cable)
• RS485 connector
• I\/O connector
• Ethernet cable (1.5 m)
• SIM Adapter
• QSG (Quick Start Guide)
• Packaging box
