Description

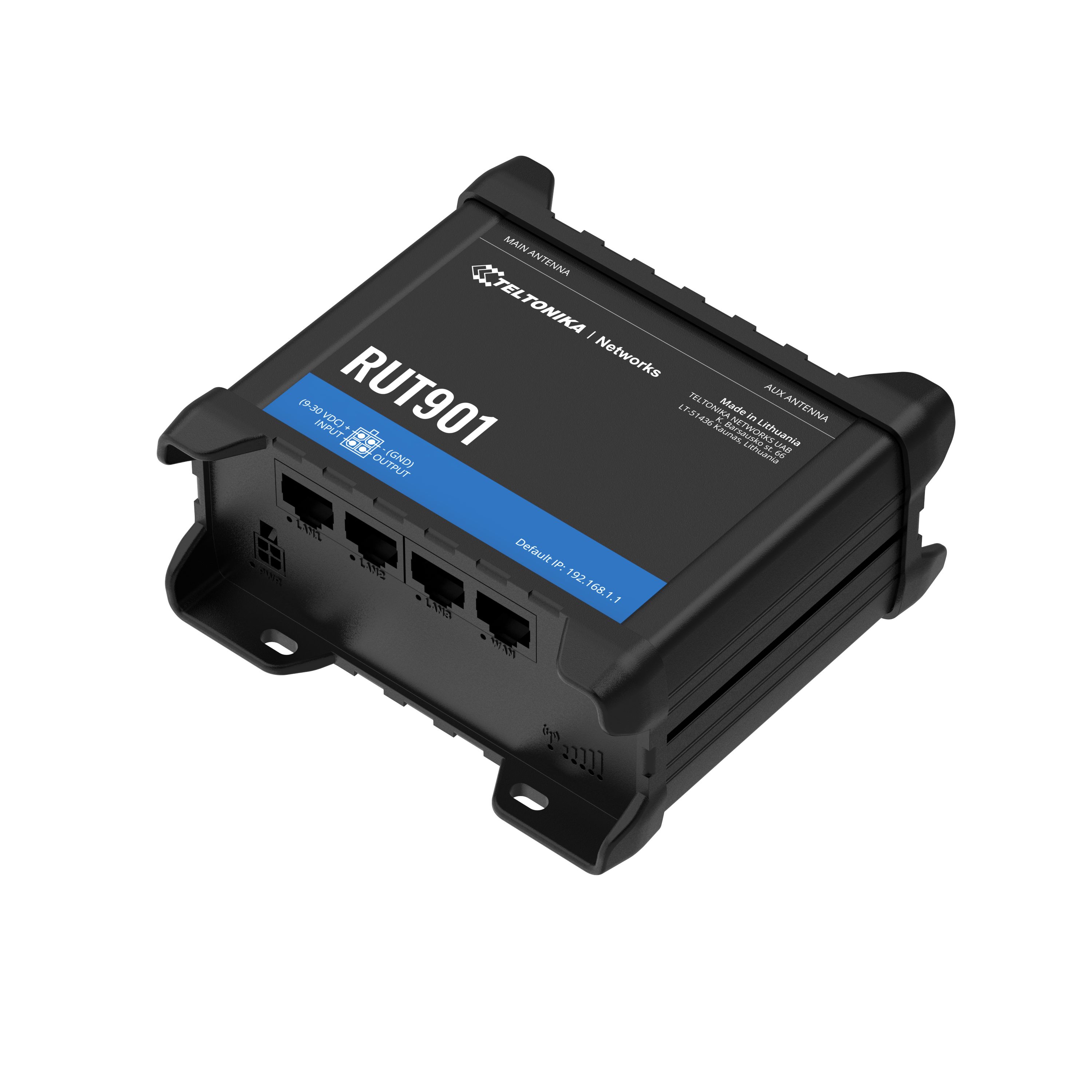

• The RUT901 cellular router delivers the top-rated features of its predecessors, the RUT950 and RUT951, to the market.
• The router features dual SIM 4G cellular connectivity and Wi-Fi, as well as 4x Ethernet interfaces, to meet the needs of the many varied IoT solutions.
• The device guarantees high-performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity and eliminating downtime.
• The RUT901 is dedicated to professional industrial use cases with its high customization possibilities, security features, industrial protocols, and compatibility with Teltonika Networks’ Remote Management System (RMS).

Key features

• CONNECTIVITY - 4G LTE (Cat 4), 3G, 2G
• DUAL SIM - With auto failover, backup WAN and other switching scenarios
• WI-FI - Wireless Access Point with Hotspot functionality
• PROTOCOLS - Multiple protocols supported including MQTT, Modbus TCP, DNP3

Specifications

HARDWARE

• Mobile: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 21 Mbps, 2G – Up to 236.8 kbps
• CPU: MediaTek, MIPS 24KEc, 580MHz
• Storage: 16 MB, SPI Flash
• Memory: 128 MB, DDR2
• Powering option: 4-pin power socket, 9-30 VDC

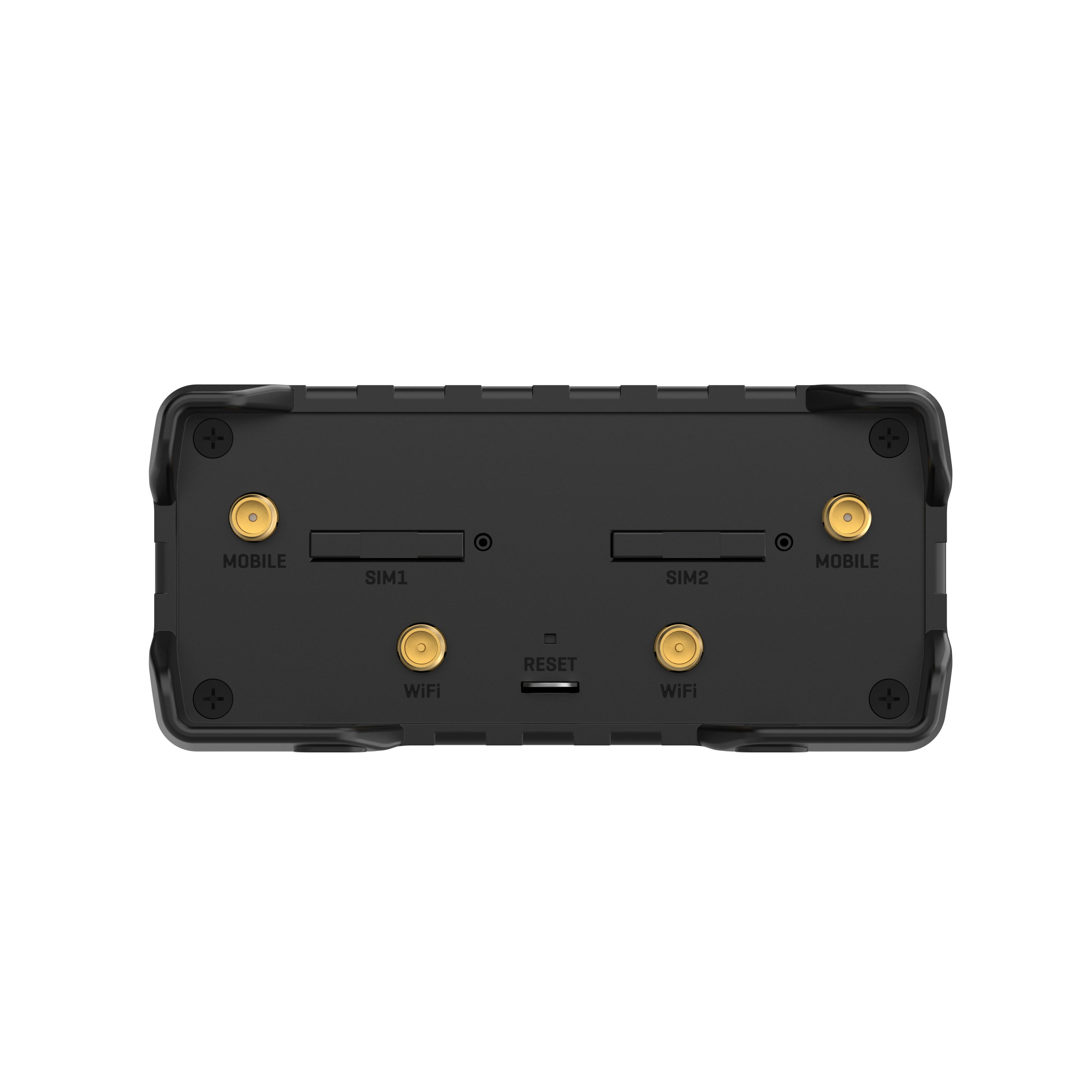

• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• Antenna connectors: 2 x SMA female for LTE, 2 x RP-SMA female for WiFi antenna connectors

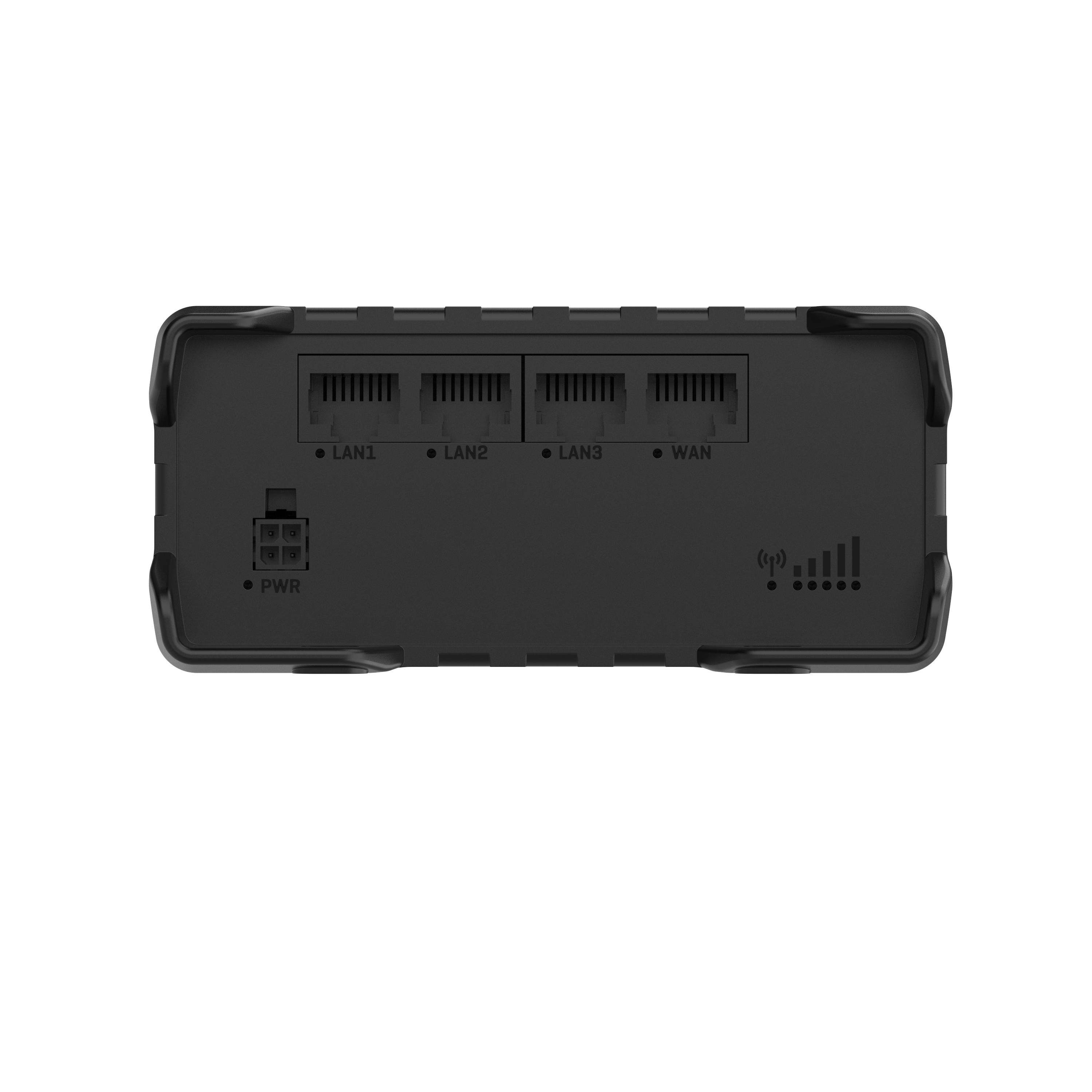

• Ethernet: 4 x RJ45 ports, 10/100 Mbps
• Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Inputs/Outputs: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
• Operating temperature: -40 °C to -75 °C
• Housing: Aluminium housing, plastic panels
• Dimensions: (W x H x D): 110 x 50 x 100 mm
• Weight: 297 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: SIM switch, Status, SMS, Black/White list, Band management, APN, Bridge, Passthrough
• Network protocols: VoIP passthrough support, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, Network backup, Load balancing, SSHFS
• Network features: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• Security: Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
• Monitoring and management: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
• Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
• SMS features: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

POWER

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
• Power consumption: < 2 W idle, < 7 W Max

Standard package contains

• Router RUT901
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x Wi-Fi antennas (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
