Description

RUT301 is one of the most cost-effective industrial Ethernet routers on the IoT market, offering a robust network connection with advanced security features. This Ethernet router includes five Ethernet ports, two configurable digital I/O ports and a USB 2.0 port, enabling easy integration with industrial devices, enterprises, or retail equipment. Additionally, the RUT301 router features a preconfigured firewall and support for multiple industrial communication protocols.

Key features

• Industrial-grade design to withstand demanding environments
• Remote management, access and VPN services
• 5 x Ethernet ports (10/100 Mbps), Digital I/Os and USB 2.0
• Preconfigured firewall and multiple VPN services

Hardware

• Processor: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB serial-NOR flash

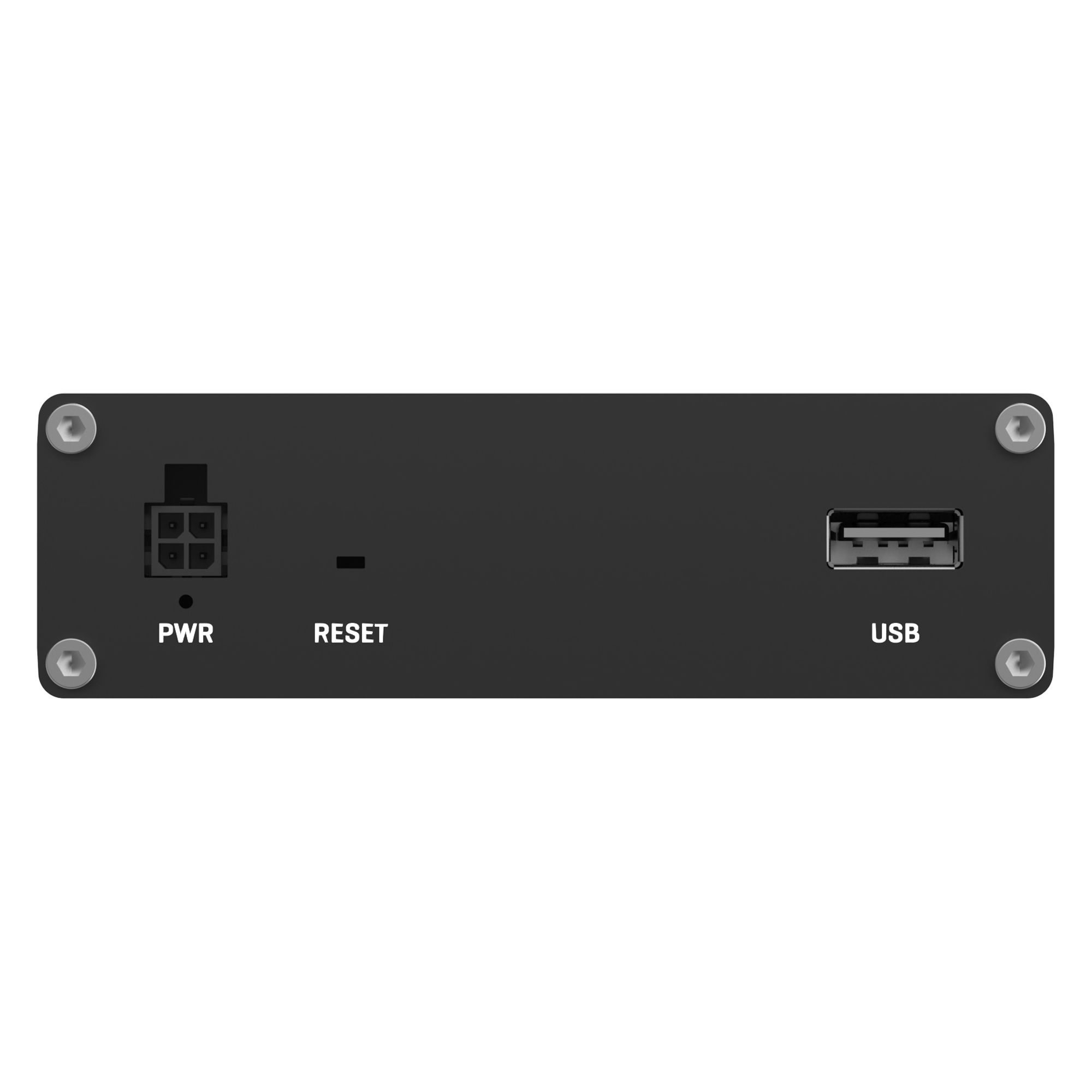

• Power options: 4-pin industrial DC power connector, 9 - 30 VDC

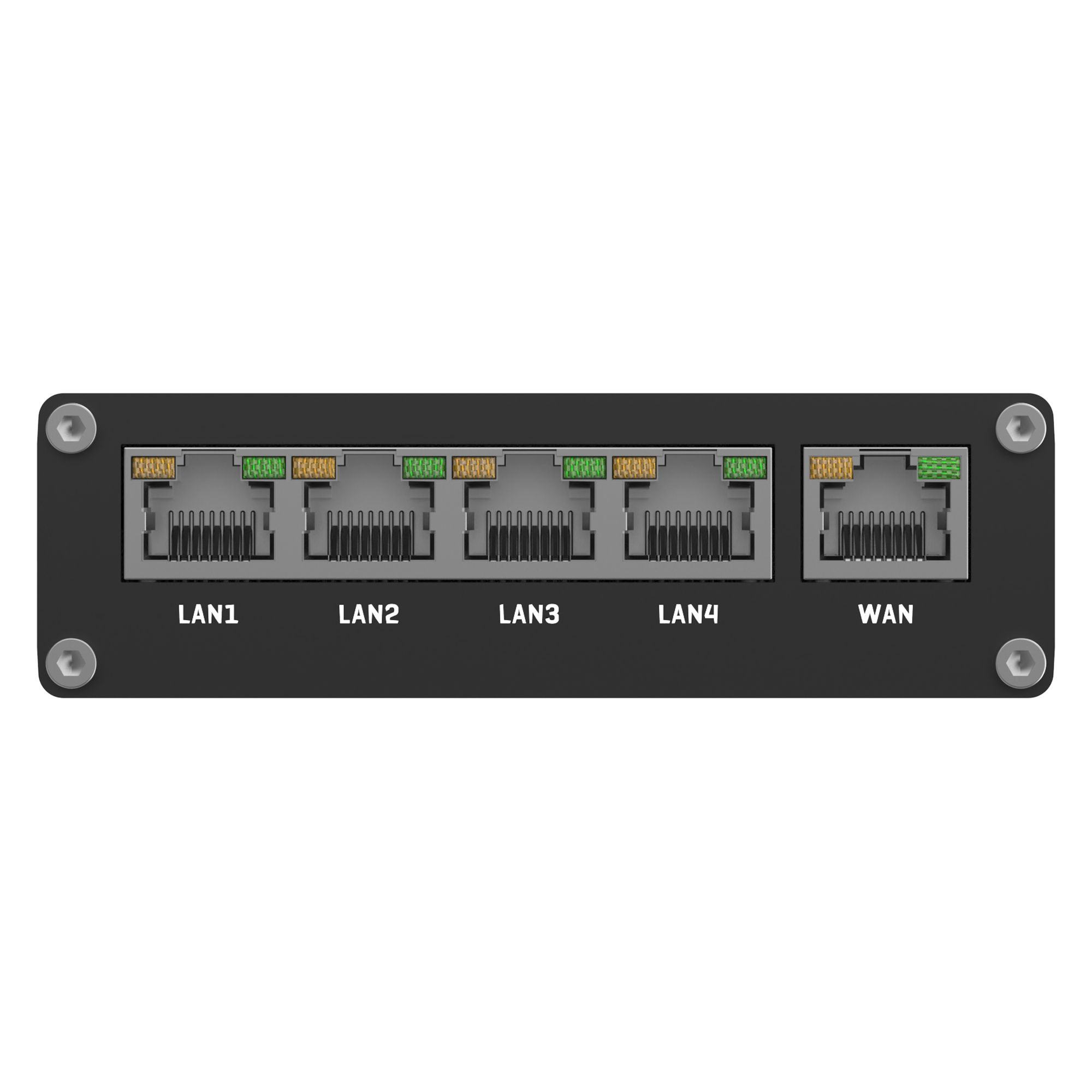

• Ethernet: 5 x RJ45 ports, 10/100 Mbps
• Inputs/Outputs: 2 x Digital input, 2 x Digital output in the 4-pin power connector
• Other connectors: 1 x USB host
• Status LEDs: 1 x WAN status LED, 4 x LAN status LEDs, 1 x Power indicator
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum enclosure
• Dimensions (L x H x D): 100 x 30 x 85 mm
• Weight: 233 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
• Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity
• Services: DDNS, Wake On Lan (WOL), WEB filtering, UPNP, Network drives (Samba)
• Management: FW update from file, FW check from server, configuration profiles, configuration backup
• Firewall: Port forwarding, Traffic rules, Custom rules, Preset firewall rules, DMZ, NAT, NAT-T, NAT helper functions, Extensive firewall configuration via CLI

Package contents

• Router RUT301
• 9 W power adapter
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• Packaging box

Links

• RUT301 product page
• RUT301 Wiki
