Description

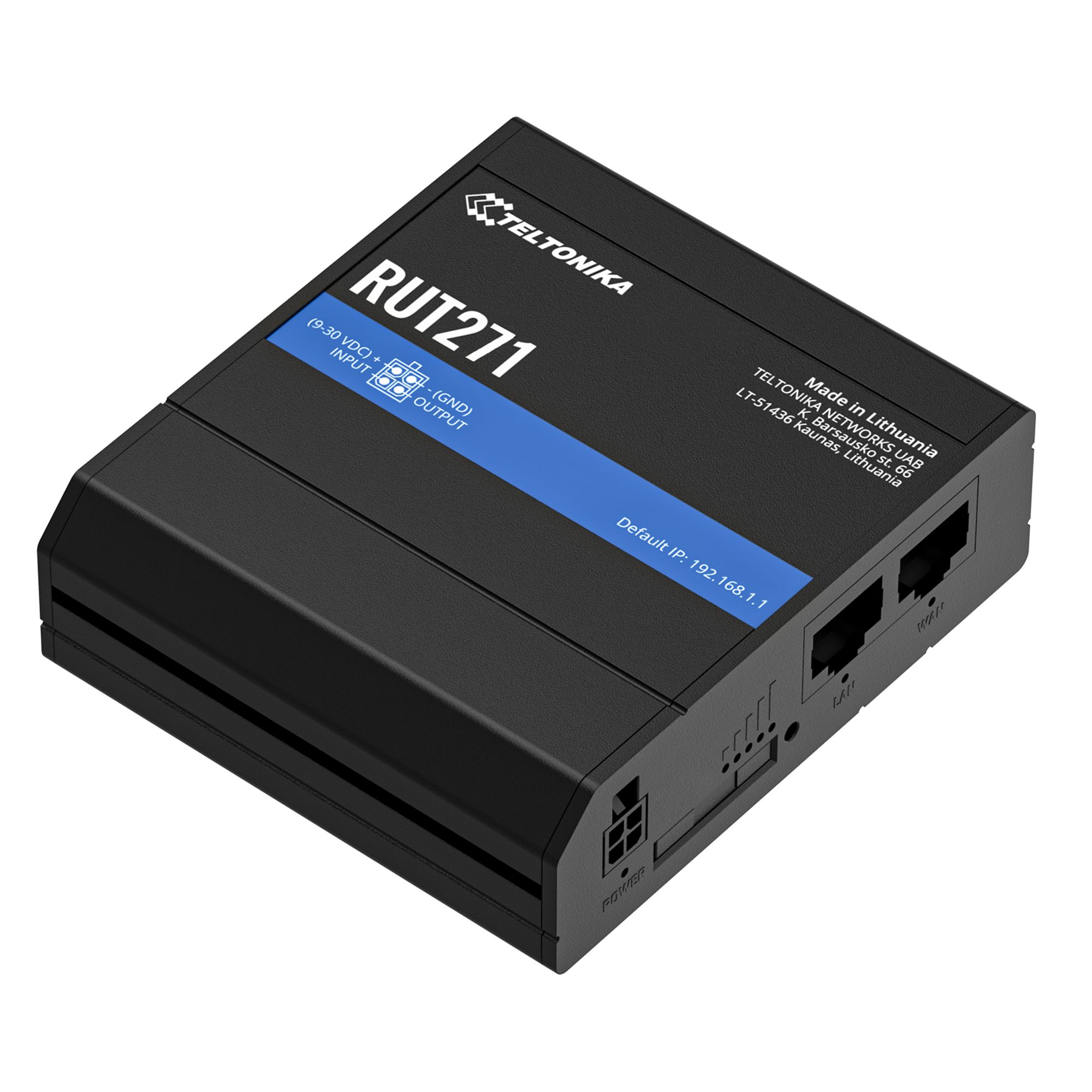

RUT271 is a RedCap 5G router that bridges the gap between 4G and full-capacity 5G. Supporting SA architecture, this 5G router can wirelessly support up to 50 endpoints and offers 5G low latency – at an affordable price. RUT271 supports Wi-Fi connectivity and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router also features WAN failover, two 10/100 RJ45 ports, a compact and durable design, and many other advanced features for professional use.

Key features

• Automatic failover to available backup connection
• Backward compatible with 4G LTE Cat 4
• Low latency, high capacity, affordable price
• Wireless access point with Hotspot functionality

Hardware

• Cellular network: 5G Sub-6GHz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
• Processor: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Storage: 32 MB, NOR Flash

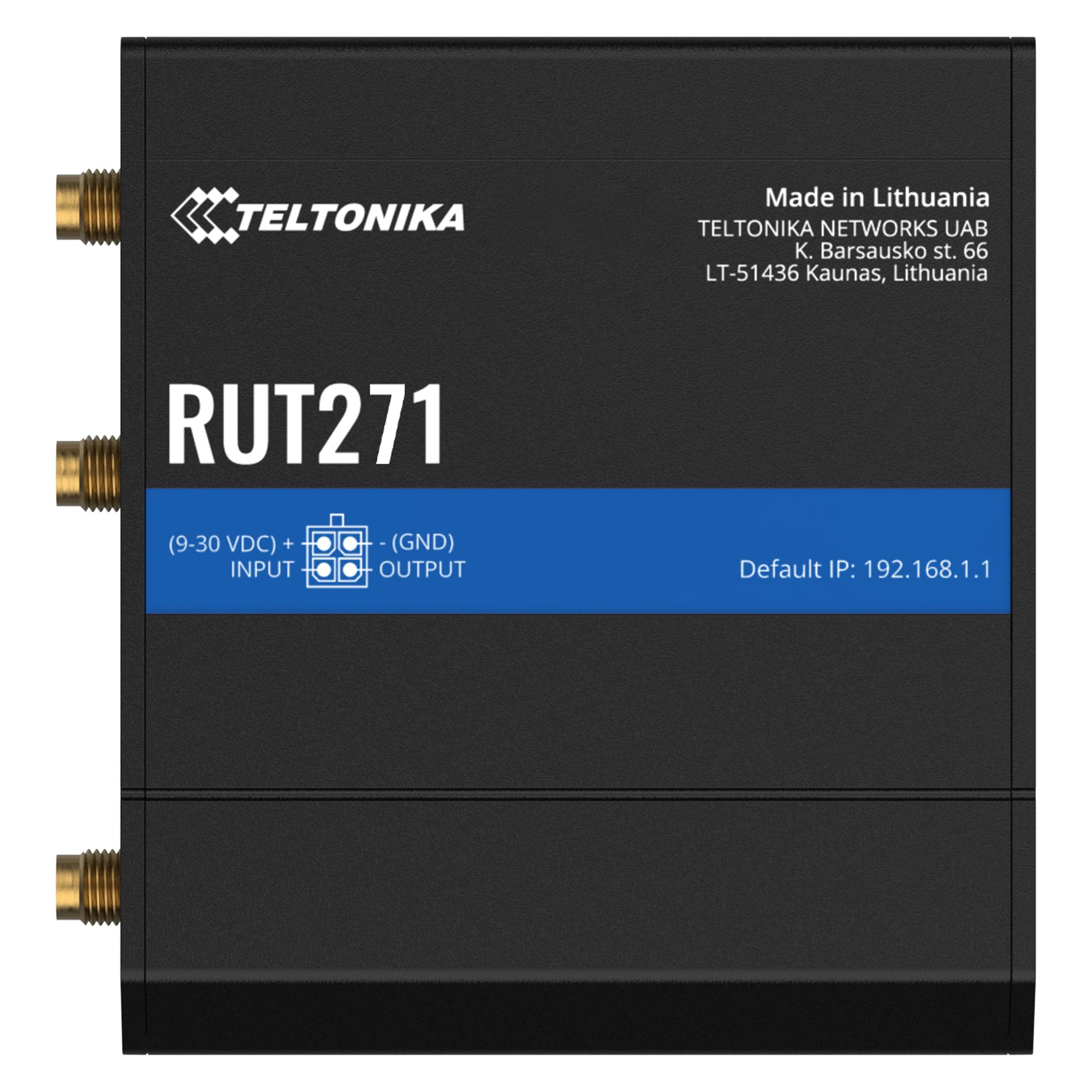

• Power options: 4-pin industrial DC power connector, 9 - 30 VDC
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM tray

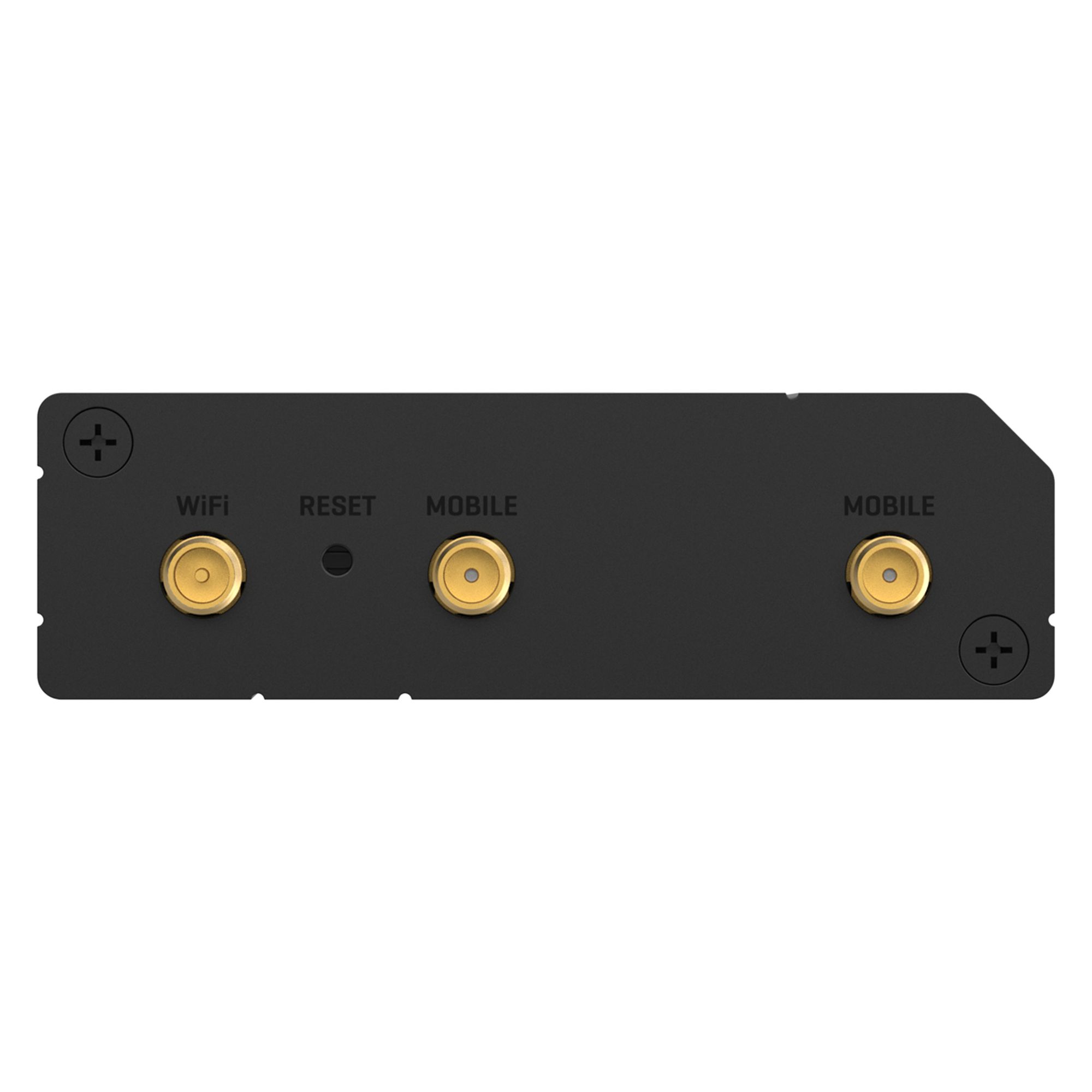

• Antenna connectors: 2 x SMA for cellular, 1 x RP-SMA for Wi-Fi
• Ethernet: 2 x RJ45 ports, 10/100 Mbps: 1 x WAN (configurable as LAN), 1 x LAN
• Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Inputs/Outputs: 1 x Digital input, 0 - 6 V detected as low, 8 - 30 V detected as high; 1 x Digital output, open-collector output, max. output 30 V, 300 mA
• LED indicators: 3 x connection-type LED, 5 x signal strength LED, 2 x LAN LED, 1 x Power LED
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum case, plastic panels
• Dimensions (L x H x D): 83 x 25 x 74 mm
• Weight: 130 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Cellular features: Status, SMS, USSD, Black/White list, Multiple PDN connections, Frequency control, SIM PIN management, APN, Routing, Pass-through
• Network features: VoIP passthrough, Network management, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart queue management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support
• Security: Authentication, Firewall, Intrusion prevention, VLAN, Cellular data quota management, WEB filtering, Access control
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, ZeroTier, WireGuard, Tinc
• Monitoring and management: WEB interface, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub
• Services: OPC UA, Modbus, Data to server, Modbus MQTT BRIDGE, DNP3, DLMS
