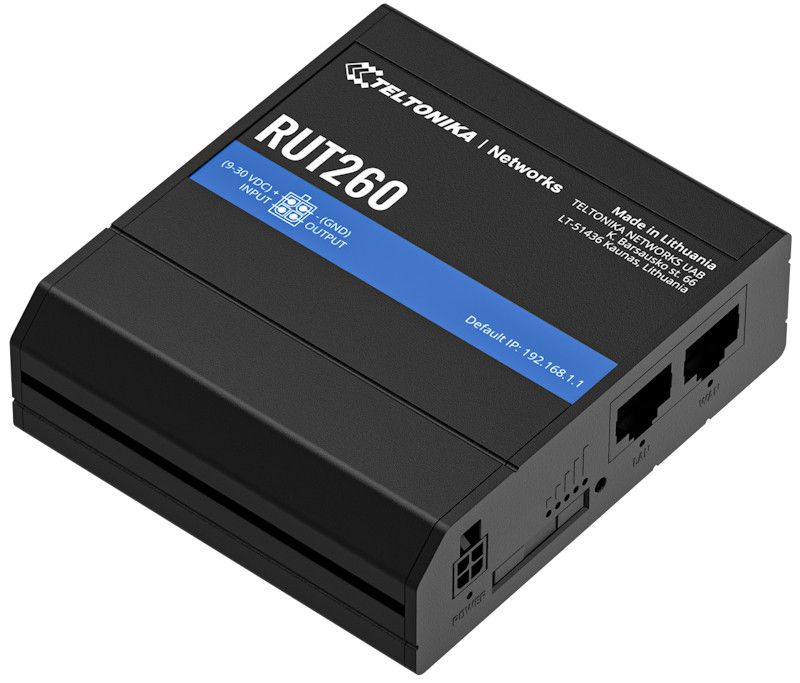

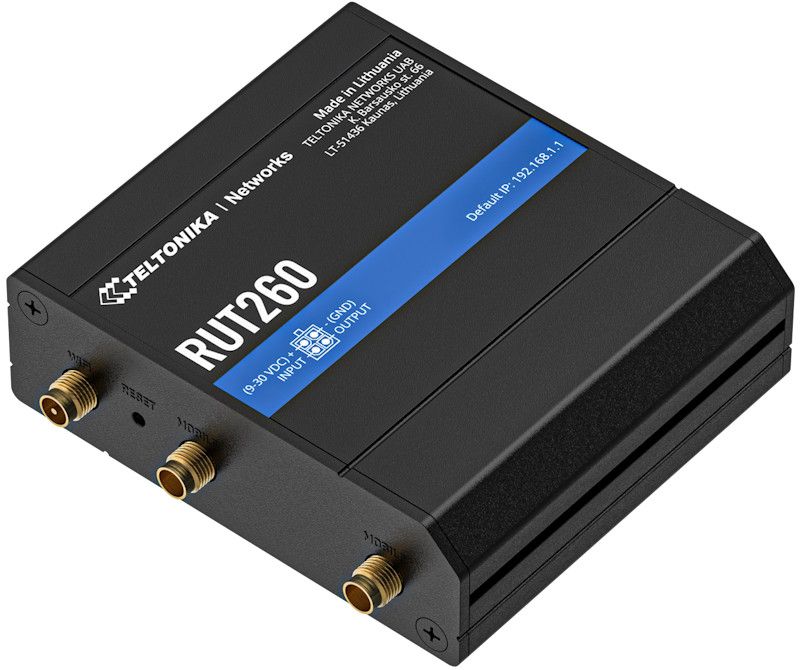

RUT260 is Teltonika Networks' LTE Cat 6 cellular router with WAN failover for connection redundancy. This device follows the main features of the RUT240 and RUT360. Mobile connectivity routing is efficient, lightweight and supports multiple industrial protocols such as MQTT, SNMP and Modbus.

Features

• LTE CAT 6: Cellular connections up to 300Mbps with carrier aggregation
• WAN FAILOVER: Automatically switches to an available backup connection
• CONNECTIONS: 2 x 10/100 Mbps Ethernet ports, digital I/O ports
• COMPACT: Small form factor and easy to install

Specs

HARDWARE

• Mobile: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
• CPU: Mediatek, 580 MHz, MIPS 24Kc
• Storage: 128 MB, DDR2
• Memory: 16 MB, SPI Flash
• Powering options: 4-pin industrial DC power socket, 9 – 30 VDC
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional)
• Antenna connectors: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi

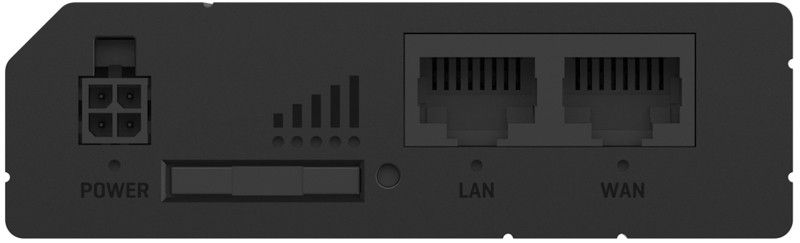

• Ethernet: 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
• Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Inputs/Outputs: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminum housing, plastic panels
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 130 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, Operator black/white list, Data/SMS limits
• Network features: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring, QoS/SQM, SSHFS
• Monitoring and Management: WEB UI, FOTA, CLI, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
• Wireless Connectivity Features: Port forward, traffic rules, custom rules
• Hotspot: Internal/external Radius, SMS OTP, internal/external landing page, Walled Garden

Package contents

• Router RUT260
• 9 W PSU
• 2x Mobile antennas (swivel, SMA male)
• 1x Wi-Fi antenna (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM adapter kit
• QSG (Quick Start Guide)
• Package box
