Description

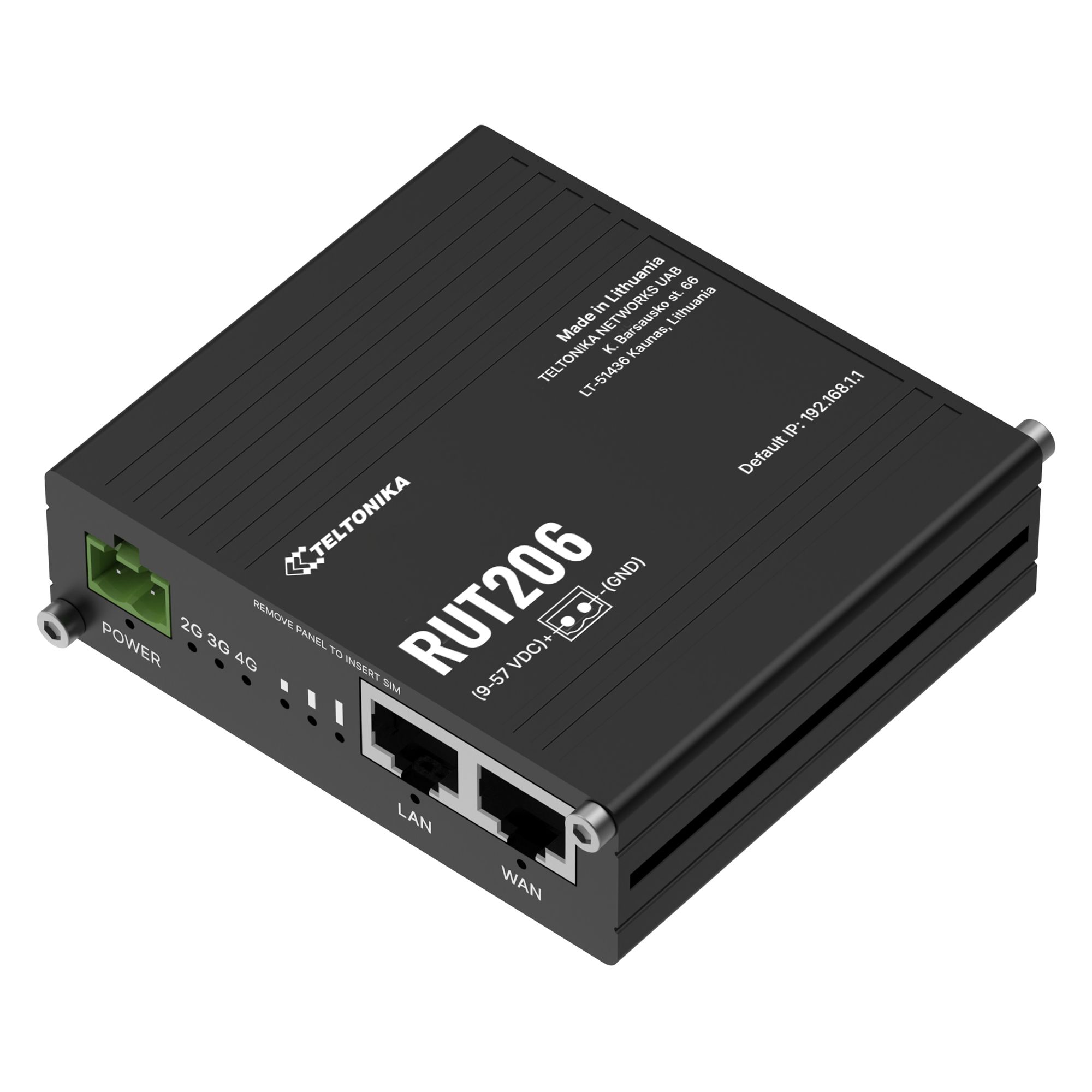

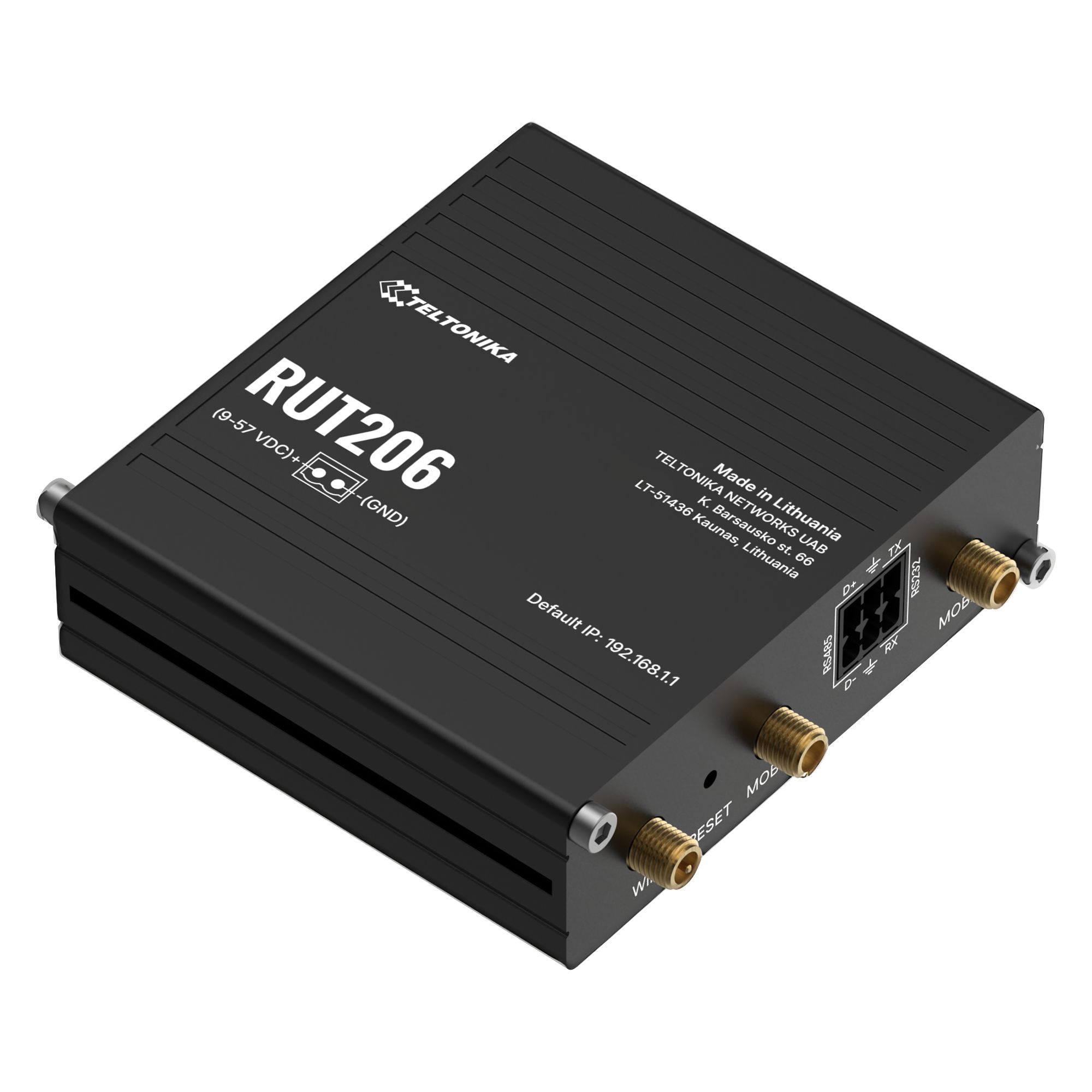

RUT206 is a compact industrial router that supports RS232 and RS485 serial interfaces as well as active and passive PoE inputs. Its rugged design, 2-pin power connector and expandable storage via a microSD card slot make it an ideal choice for various IoT and M2M applications. This 4G Cat 4 router is delivered with the open source RutOS firmware and supports key industrial protocols such as Modbus, DNP3 and DLMS.

Key features

• Connectivity: 4G Cat 4, 3G, 2G
• Serial interfaces: RS232 & RS485 for serial communication
• 2-pin power connector: simple and suitable for industrial applications
• PoE: Active and passive PoE inputs

Hardware

• Cellular: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• Processor: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Storage: 32 MB, SPI Flash
• Power options: 2-pin industrial DC power connector, 9 - 57 VDC; Active PoE In: 802.3af Class 0 (12.94 W) on LAN port; Passive PoE In: via spare wires 4,5 (+) / 7,8 (-) on LAN port, 16 - 57 VDC
• SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, dual-stacked SIM tray
• Antenna connectors: 2 x SMA for cellular, 1 x RP-SMA for Wi-Fi
• Ethernet: 2 x RJ45 ports, 10/100 Mbps: 1 x WAN (configurable as LAN), 1 x LAN
• Wi-Fi: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

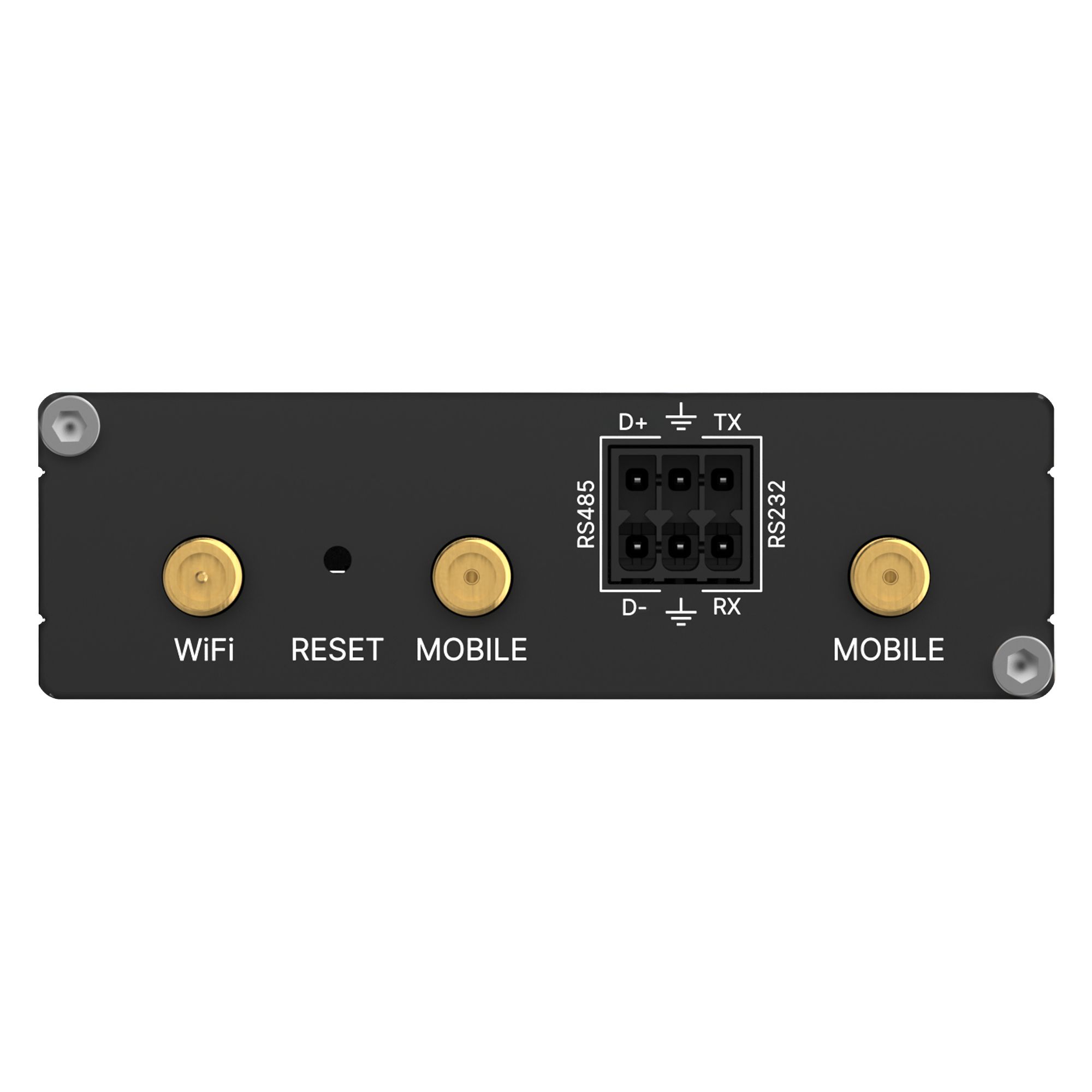

• Serial interface: 1 x 6-pin terminal block (RS232, RS485)
• SD card slot (capacity): Up to 2 TB

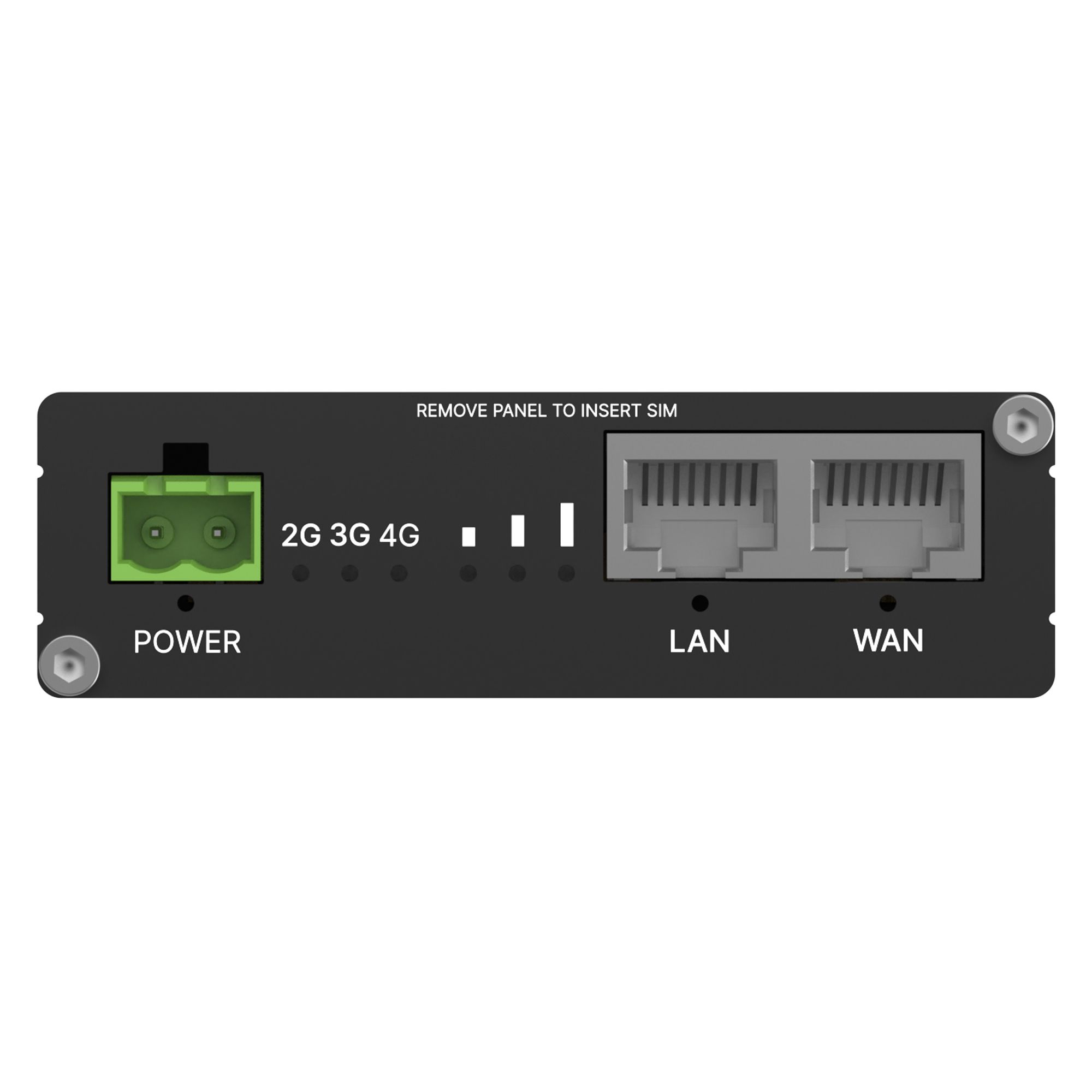

• Status LEDs: 3 x Connection type LEDs, 3 x Signal strength LEDs, 2 x LAN LEDs, 1 x Power LED
• Operating temperature: -40 °C - 75 °C

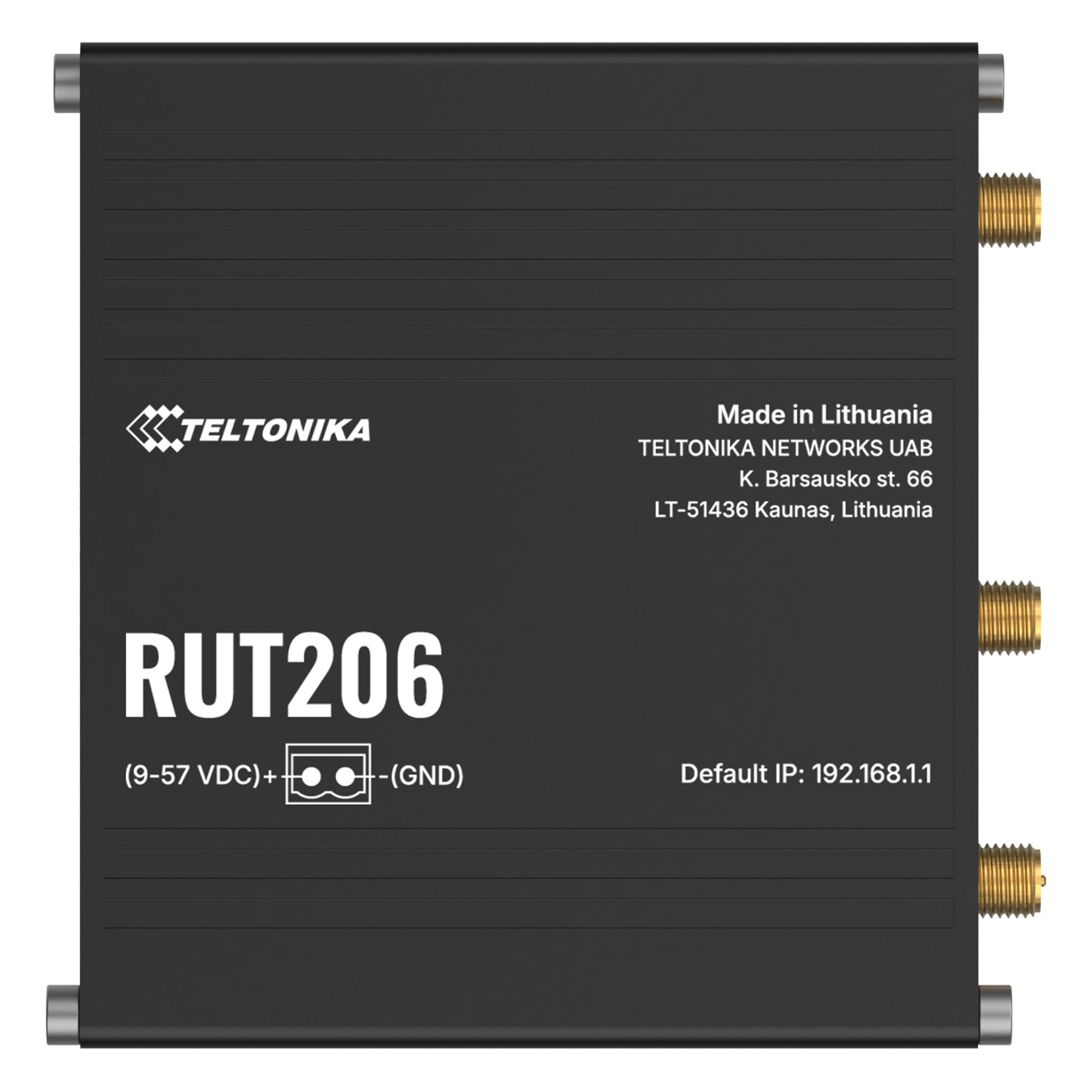

• Enclosure: Anodized aluminium case and panels
• Dimensions (L x H x W): 83 x 25 x 83 mm
• 4G LTE: Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• Weight: 132 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Cellular features: SIM switching, Signal, SMS, USSD, Black/White list, Multiple PDN connections, Band control, SIM idle lock, SIM PIN management, APN, Bridging, Passthrough
• Wireless features: Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless connection features, Wireless MAC filter, Wireless QR code generator, TravelMate
• Network features: VoIP passthrough, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, Traffic control
• Security: Authentication, Firewall, Intrusion prevention, VLAN, Cellular data quota management, WEB filtering, Access control, SSL certificate generation, 802.1x
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Monitoring and management: WEB interface, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
• Services: BacNET, OPC UA, Modbus, Data to server, Modbus MQTT GATEWAY, DNP3, DLMS, RMS API

Package contents

• RUT206 router
• 2-pin terminal block
• 2 x 3-pin connector
• 1 x hex key
• SIM adapter pack
• QSG (Quick Start Guide)
• Packaging box
