Description

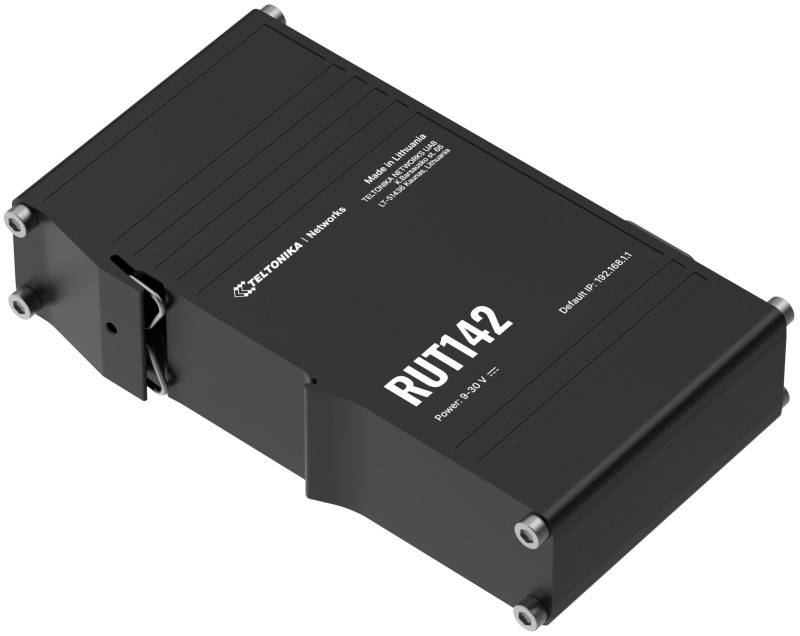

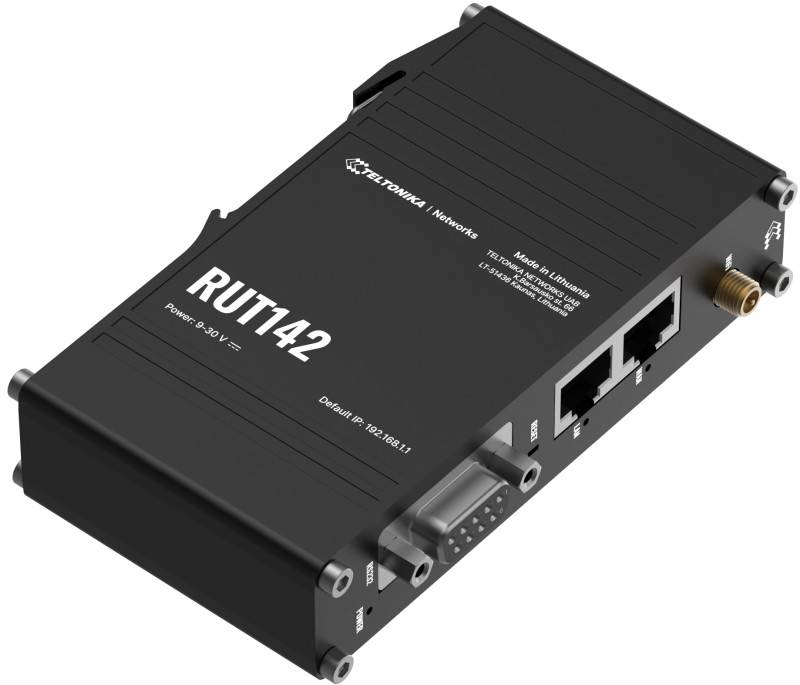

RUT142 is a compact industrial Ethernet router that enhances security by isolating the network for endpoints. It is equipped with an RS232 serial port, two Ethernet ports, a DIN-rail and an industrial 3-pin connector, enabling seamless connectivity and easy installation. The router ships with RutOS, Wi-Fi 4 and supports industrial protocols such as Modbus, DLMS, DNP3 and OPC UA, and is compatible with RMS for efficient remote and on-site management.

Features

• CONNECTIVITY: 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
• SERIAL: RS232 for serial communication
• INDUSTRIAL DESIGN: Integrated DIN-rail and 3-pin power connector
• RMS: Remote management, access and VPN services

Hardware

• Processor: Mediatek, 580 MHz, MIPS 24KEc
• Storage: 16 MB serial NOR flash
• Memory: 128 MB, DDR2

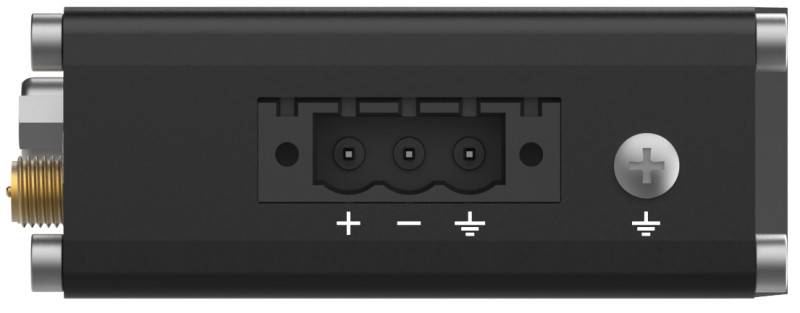

• Power options: 3-pin detachable connector, 9-30 VDC
• Antenna connectors: 1 x RP-SMA for Wi-Fi

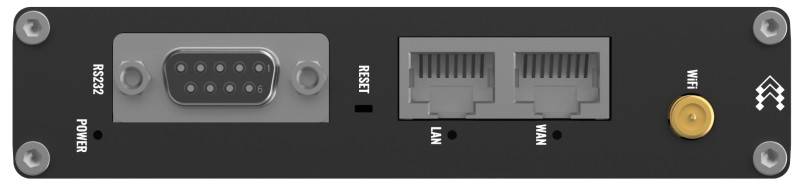

• Ethernet: 2 x 10/100 Ethernet ports: 1 x WAN, 1 x LAN
• Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA) Wi-Fi
• Others: 1 x grounding screw
• Status LEDs: 1 x WAN-type LED, 1 x LAN-type LED, 1 x power LED
• RS232: 1 x DB9 connector
• Operating temperature: -40 °C - 75 °C

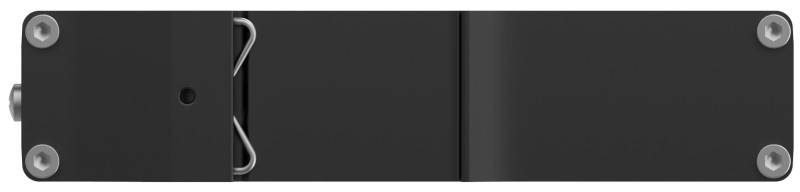

• Enclosure: Aluminum enclosure with integrated DIN-rail
• Dimensions: (L x H x W) 113.10 x 25 x 68.6 mm
• Weight: 149.2 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Monitoring and management: Web interface, command line, SSH, SMS, call, email, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity
• Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, splash page, user scripts, URL parameters, user groups, individual user or group limits, user management, 9 default customizable themes and ability to upload and download custom hotspot themes
• Modbus TCP server, TCP client, RTU (RS232)

Package contains

• Router RUT142
• 3-pin power connector
• QSG (Quick Start Guide)
• Packaging box

Note! The package does not include Ethernet network cables.
