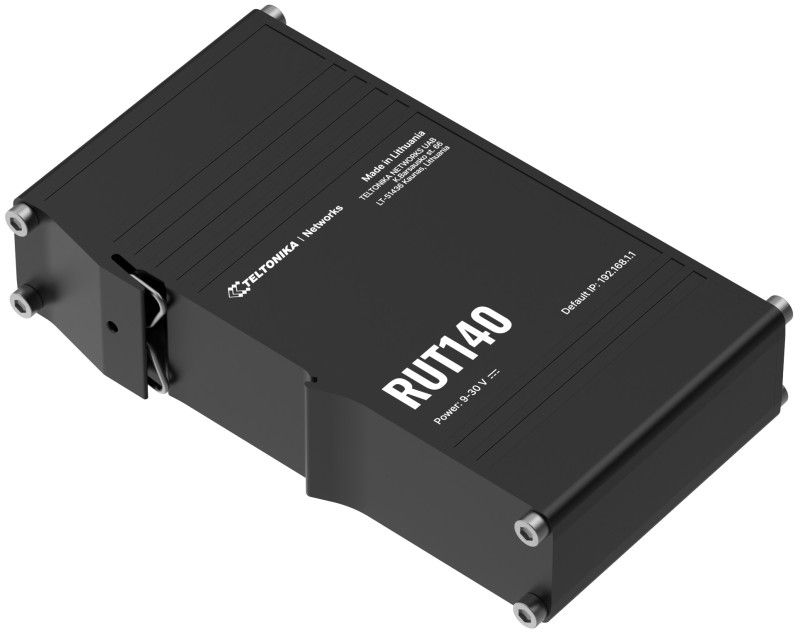

RUT140 is a compact industrial-grade Ethernet router that enhances security by isolating network endpoints. Equipped with two Ethernet ports, a DIN rail and an industrial 3-pin terminal block, it ensures seamless connectivity and easy installation. The router includes the RutOS operating system, Wi‑Fi 4 and supports industrial protocols such as Modbus, DLMS, DNP3 and OPC UA. It is compatible with the RMS system for efficient remote and on-site management.

Features

• POWER SUPPLY: 1 x 3-pin power connector tailored for industrial use
• CONNECTIONS: 2 x 10/100 Mbps Ethernet ports, Wi‑Fi 4
• EASY INSTALLATION: Easy mounting with integrated DIN rail
• RMS: Remote management, access and VPN services

Hardware

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• Storage: 16 MB serial NOR flash
• Memory: 128 MB, DDR2

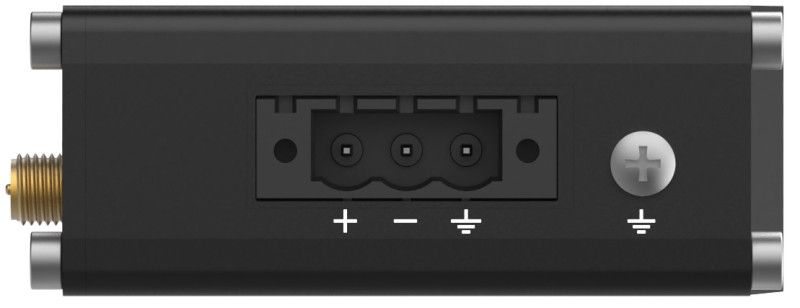

• Power options: 3-position pluggable terminal block, 9-30 VDC
• Antenna connectors: 1 x RP-SMA for Wi-Fi

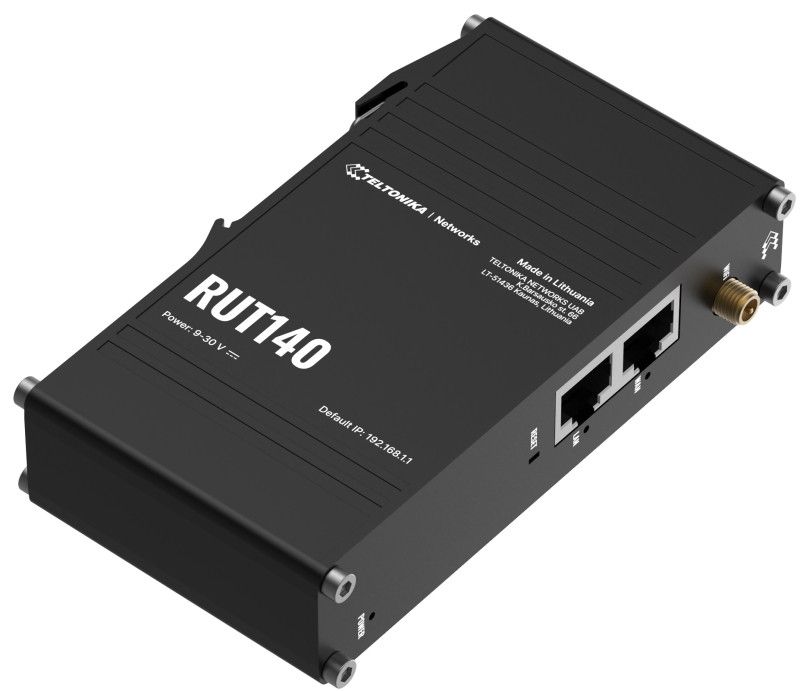

• Ethernet: 2 x 10/100 Ethernet ports; 1 x WAN, 1 x LAN
• WiFi: 2.4GHz IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Other: 1 x grounding screw
• Status LEDs: 1 x WAN-type LED, 1 x LAN-type LED, 1 x power LED
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum case with integrated DIN rail
• Dimensions (L x H x D): 113.10 x 25 x 68.6 mm
• Weight: 142.3 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Monitoring and management: WEB UI, CLI, SSH, SMS, Call, Email, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity
• Hotspot: Captive portal (Hotspot), internal/external RADIUS server, SMS authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, single-user or group limitations, user management, 9 default customizable themes and ability to export and upload custom hotspot themes

Package contents

• Router RUT140
• 3-pin power terminal block
• QSG (Quick Start Guide)
• Packaging box

Note! Ethernet network cables are not included in the package.
