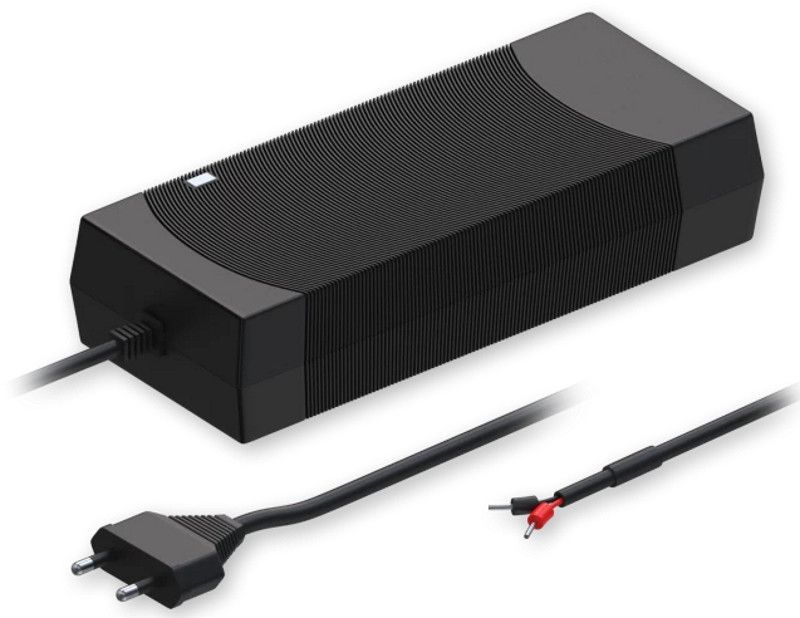

Features

• Suitable for Teltonika switches TSW200, TSW202, TSW212
• Output connector: 2-pin with ready plug ends
• Short-circuit protection
• Length: 2 + 1.5 m (power supply in between)

Technical specifications

General

• Input voltage: 100 - 240 VAC
• Input frequency: 50/60 Hz
• Input current: 2.5 A
• Input connector: EU (Type C)
• Output voltage: 50 VDC
• Output current: 2.6 A
• Output connector: 2-PIN, with cord end terminals
• Weight: 500 g

Detailed

• Input voltage absolute maximum: 90 - 264 VAC
• Input frequency absolute maximum: 47 - 63 Hz
• Maximum input inrush current: 50 A
• Output voltage absolute maximum: 47.5 - 52.5 VDC
• Short circuit protection: yes
• HIPOT (dielectric withstand test): Primary to Secondary: 4242 VDC
• MTBF: 50000 h
• PSU efficiency standard: DoE Level VI
• Certification Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008
• Certification EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017)
