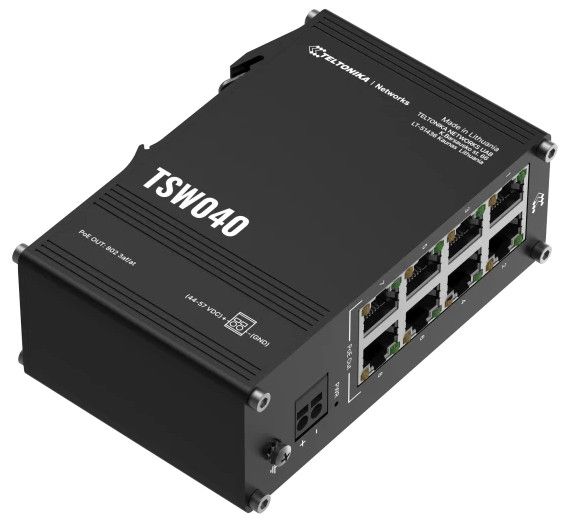

Teltonika TSW040 is an industrial-grade unmanaged PoE+ Ethernet switch that provides excellent connectivity and reliability for network and IoT applications. The TSW040 is capable of delivering power up to 30W/port. The switch supports DIN-rail mounting and operates without a separate fan, ensuring quiet and long-lasting operation even in demanding environments.

Features

• DIN-rail mounting
• Compact and durable metal housing
• 2-pin power input
• Wide input voltage range 7-57 V DC

Technical specifications

• Ethernet ports: 8 x 10/100 Mbps RJ45
• PoE+ output power: 30W/port, total 240 W
• Power input: 7-57 VDC
• PoE+ voltage: 44-57 VDC
• Mounting: DIN-rail
• Operating temperature: -40°C ... +75°C
• Ingress protection: IP30
• Dimensions: 113.1 mm x 41.2 mm x 74.6 mm
• Enclosure: Metal
