Description

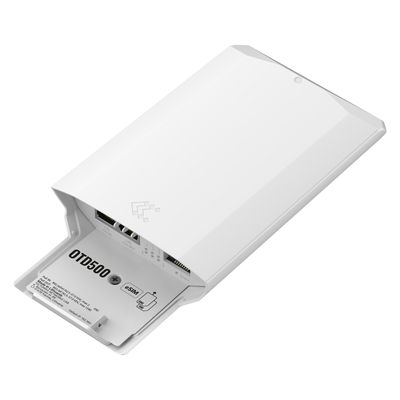

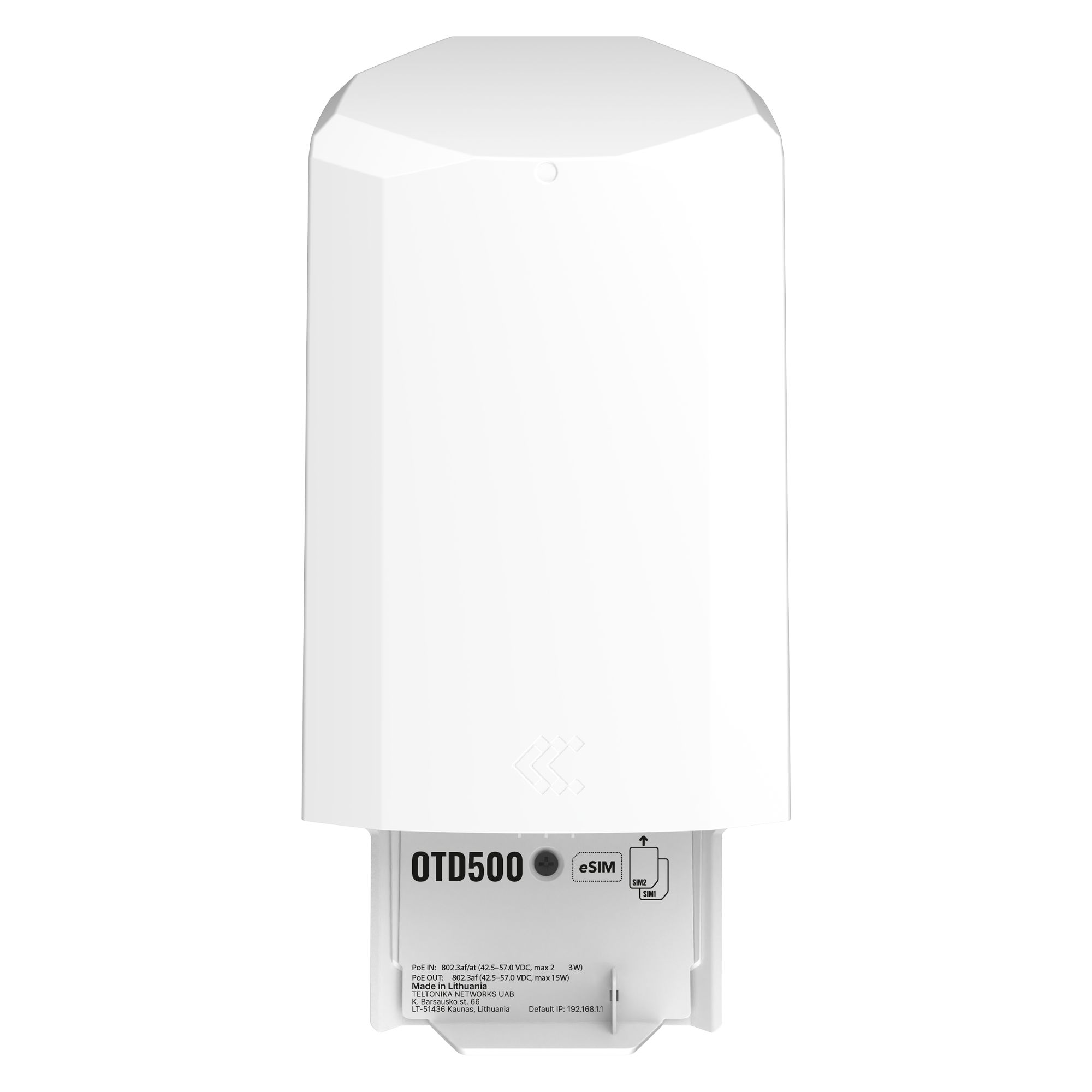

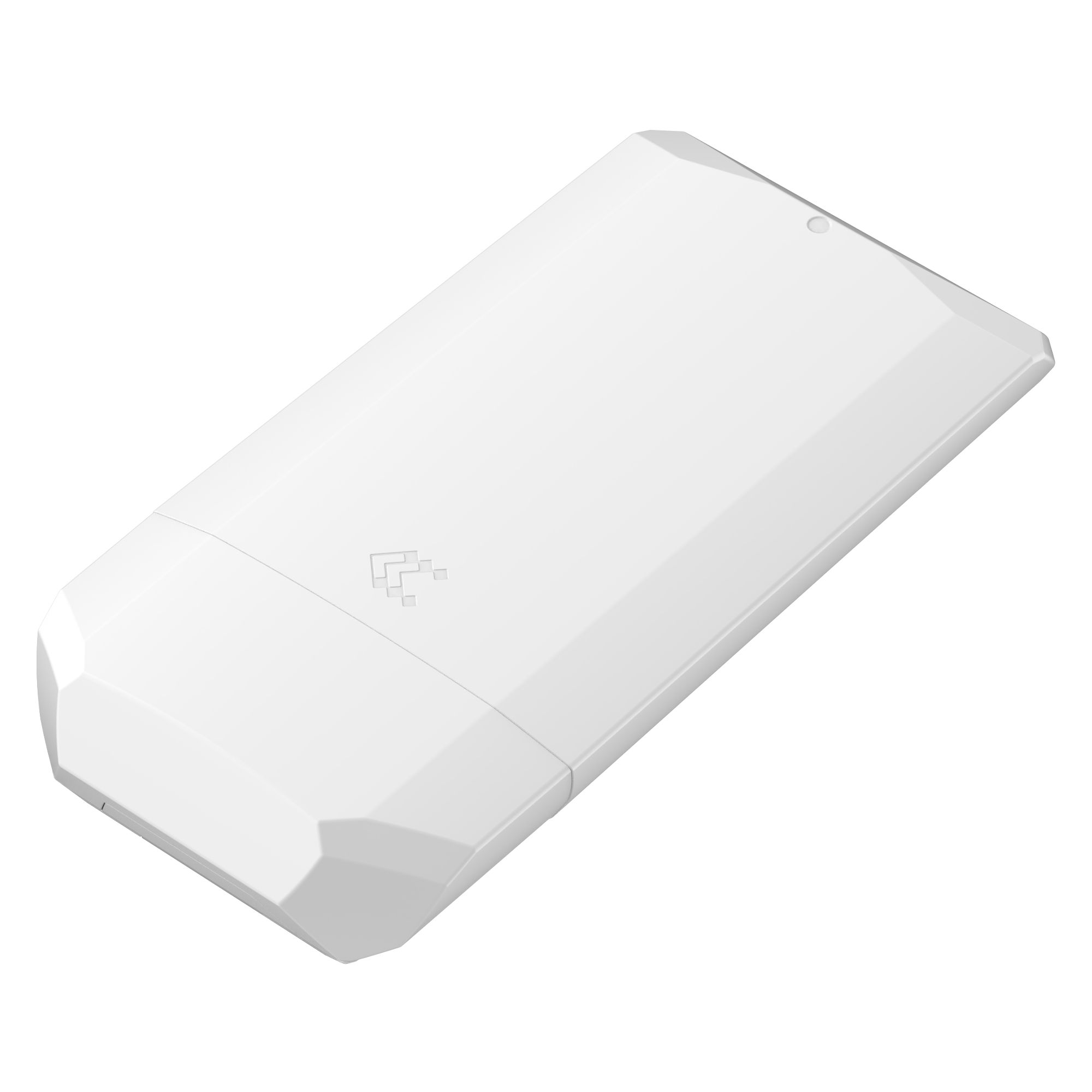

OTD500 is a rugged 5G outdoor-ready router designed to provide reliable connectivity in demanding environments. Its IP55-rated enclosure withstands harsh weather conditions, and the integrated mount enables quick and easy installation. Dual-SIM and eSIM with automatic failover deliver excellent network flexibility and backup connectivity. Gigabit Ethernet ports with PoE-in and PoE-out support simplify installation by combining power and data over a single cable. Fully RMS-compatible, the OTD500 enables seamless remote management, making it an ideal solution for outdoor connectivity.

Key features

• 1x PoE-in and 1x PoE-out port
• 5G, 4G Cat 19, 3G
• IP55 durability for outdoor installations
• Seamless connectivity with eSIM™ SGP.22 support

Hardware

• Cellular connectivity: 5G Sub-6GHz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 19 1.6 Gbps DL / 200 Mbps UL; 3G up to 42 Mbps DL / 5.76 Mbps UL
• eSIM: Consumer-type eSIM, profile download and removal, up to 7 eSIM profiles; does not include data packages
• Processor: MediaTek, dual-core, 880 MHz, MIPS1004Kc
• RAM: 256 MB DDR3
• Storage: 16 MB serial-NOR flash, 256 MB serial-NAND flash
• TPM: Attestation and authentication module, TPM 2.0 standard
• Power options (PoE In): RJ45, PoE In: 802.3af/at (42.5 – 57 VDC, max 23W)
• PoE Out: PoE Out: 802.3af (42.5 – 57 VDC, max 15W) Alternative B
• SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
• Antenna connectors: 4 x internal antennas
• Ethernet: 2 x RJ45 ports, 10/100/1000 Mbps: 2 x ETH ports (configurable as WAN)
• Status LEDs: 3 x mobile connection status, 3 x mobile signal strength, 4 x ETH status LEDs
• Operating temperature: -40 °C - 55 °C
• Enclosure: Plastic (PC+ASA)
• Dimensions (L x H x D): 110 x 49.30 x 235 mm
• Weight: 385 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Cellular features: SIM switching, status, SMS, USSD, Black/White list, Multiple PDN connections, Frequency control, SIM idle protection, SIM PIN management, APN, Bridging, Pass-through, Framed routing
• Network features: Routing, VoIP passthrough, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support, Traffic shaping
• Security: Authentication, Firewall, Intrusion prevention, VLAN, Cellular data quota management, WEB filtering, Access control, TPM, SSL certificate generation, 802.1x
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
• Monitoring and management: WEB interface, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
• Services: OPC UA, Modbus, Data to server, Modbus MQTT bridge

Package contents

• OTD500 router
• Router mount
• QSG (Quick Start Guide)
• Packaging box
