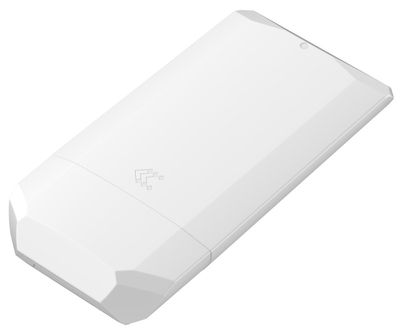

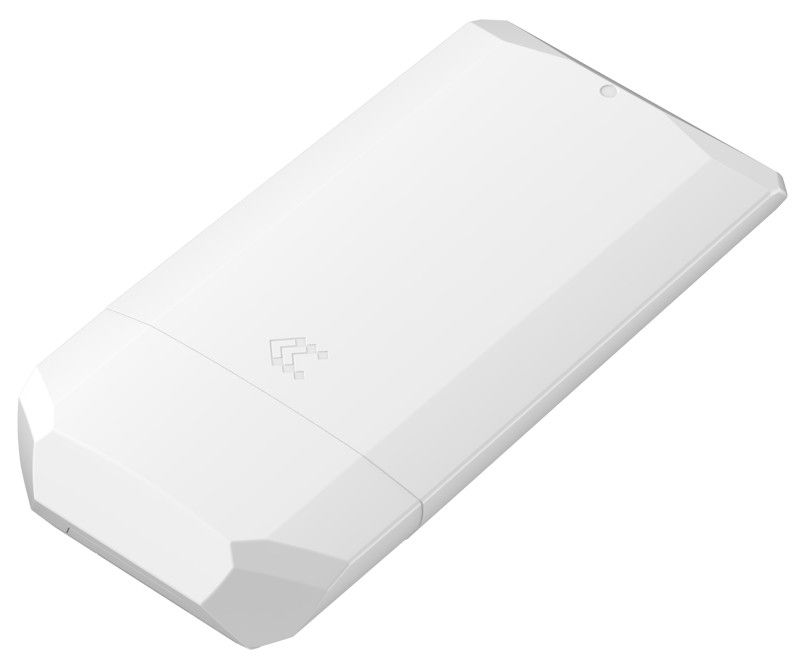

The OTD140 outdoor router features a durable IP55 plastic enclosure and an integrated mounting bracket, making this 4G outdoor router easy to deploy and well-suited to outdoor environmental conditions. Additionally, this outdoor router offers LTE Cat 4 connectivity, compatibility with the Teltonika RMS system for remote management features, and two PoE-in/out Ethernet ports.

Features

• IP55 PIONEER: IP55-rated durability for outdoor deployment
• CONNECTIVITY: 4G LTE (Cat 4), 3G, 2G
• AUTO FAILOVER: Dual SIM cards, automatic failover and other switching scenarios
• POE-IN/OUT: 1 x PoE-in and 1 x PoE-out port

Specifications

Network Connections

• Connection speed: 4G LTE (Cat 4, 150 Mbps DL, 50 Mbps UP), 3G, 2G
• SIM card slots: 2-SIM cards, automatic switching to the active provider
• Auto Failover: switches when signal is weak, data limits are reached, or other conditions occur

Ethernet Interfaces

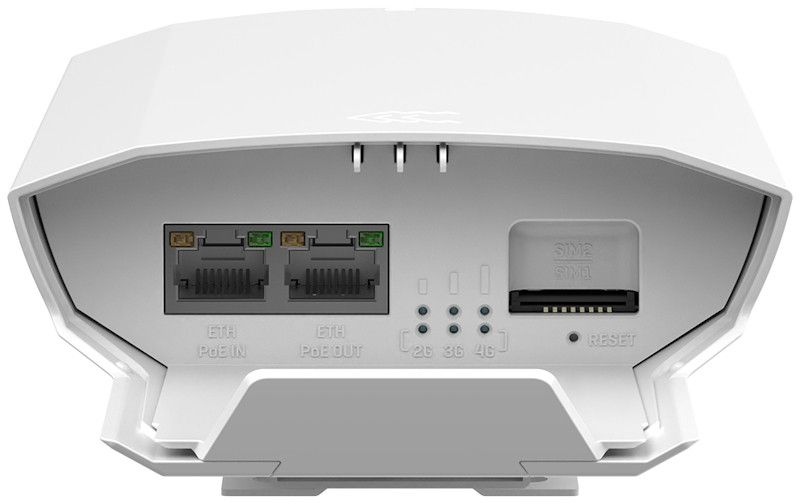

• Ethernet ports: 2 x PoE-in/out Ethernet ports (can be configured as WAN)
• PoE standards: 802.3af/at (PoE in) 802.3af (PoE out)
• PoE power: max. 15W (only when power is supplied to the device's PoE In port according to 802.3at)

Protection and Location

• Ingress protection: IP55 (= dust protected and protected against water jets)
• Suitable for outdoor use: weather-resistant and protected against harsh conditions

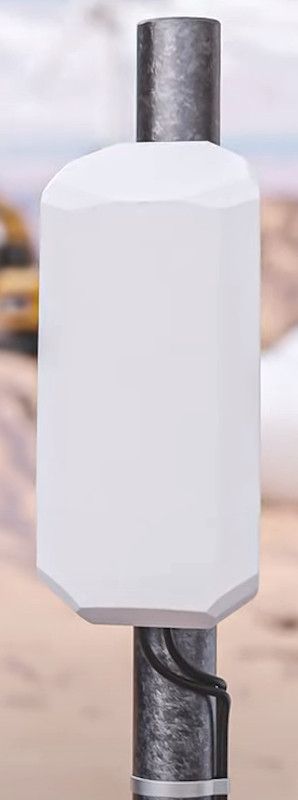

• Mounting: Integrated mounting bracket for easier installation

Network

• Routing: Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• DHCP: Static and dynamic IP address assignment, DHCP relay

Security

• Firewall: Port control, traffic rules, custom rules
• VPN: Multiple VPN protections such as OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, Tinc

Management and Monitoring

• Interfaces: Web UI, SSH, SMS, Phone call, SNMP, MQTT, TR-069
• Monitoring: System and event logs, remote updates, remote monitoring (RMS), network mapping, remote control

Physical Characteristics

• Dimensions: 110 x 49.30 x 235 mm
• Weight: 855 g
• Enclosure material: Weather-resistant plastic (PC+ASA)
• Operating environment: -40...75 °C, relative humidity 10% - 90%

Approvals

• CE, UKCA, EAC, UCRF, RCM

Package Contents

• OTD140 Router
• Router mounting bracket
• QSG (quick start guide)
• Packaging box

Links

• OTD140 product page
• OTD140 Wiki page
