Description

The NTP001 is Teltonika's stratum-1 NTP server designed to synchronize precise, UTC-traceable time in both public and private networks without an Internet connection. Leveraging its GNSS capabilities, this cost-effective NTP server maintains accurate, UTC-traceable time. Plug-and-play functionality, a wide range of interfaces such as RS232 and RS485, and a robust security profile make the NTP001 the perfect NTP server for your network.

Hardware

• Processor: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Storage: 16 MB, NOR Flash

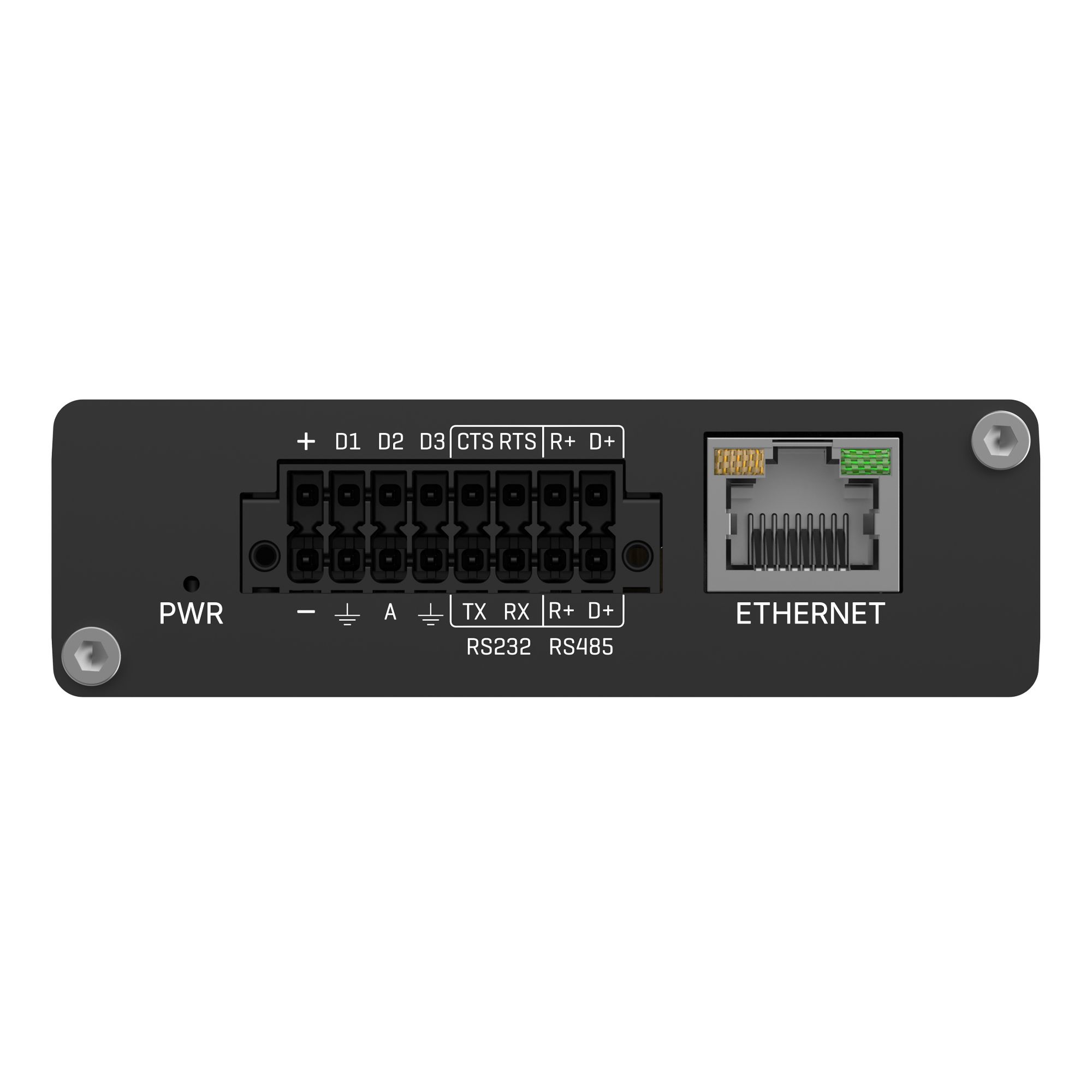

• Power options: 16-pin terminal block, 9-30 VDC

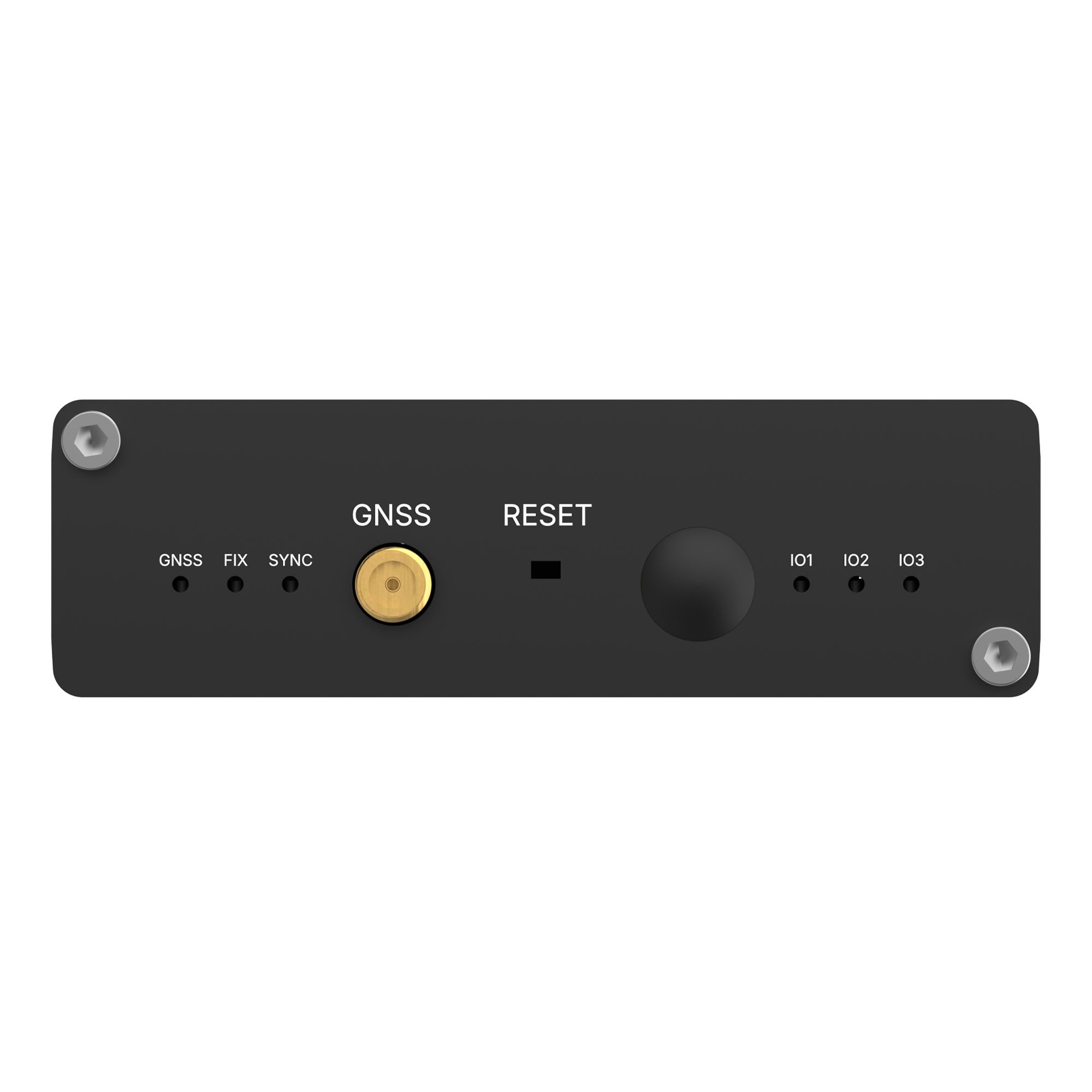

• Antenna connectors: 1 x SMA for GNSS
• Ethernet: 1 x RJ45 port, 10/100 Mbps
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Inputs/Outputs: 3 x Digital input (0 - 6 V detected as low, 8 - 30 V detected as high), 3 x Digital output (Open-collector output, max output 30 V, 300 mA)
• Serial interface: RS232, RS485
• Status LEDs: 1 x Power LED, 2 x GNSS status LEDs, 1 x NTP server LED, 3 x IO status LEDs
• Operating temperature: -40 °C - 75 °C
• Enclosure: Anodized aluminum case
• Dimensions (L x H x D): 82.6 x 25 x 83 mm
• Weight: 180 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Network features: Network protocols, Connection monitoring, Network topology, DDNS
• Security: Authentication, WEB filtering, Access control, 802.1x
• Monitoring and management: WEB UI, SSH, SNMP, JSON-RPC, MODBUS
• NTP: Supported modes, Daytime Protocol, Serial time data, NTP protocol, NTP accuracy, NTP performance, Synchronization accuracy
• Services: Modbus, Modbus MQTT gateway
• Location tracking: GNSS, Accuracy, Time source, Boot

Package contents

• NTP001 GNSS NTP time server
• 16-pin terminal block
• QSG (Quick Start Guide)
• Packaging box
