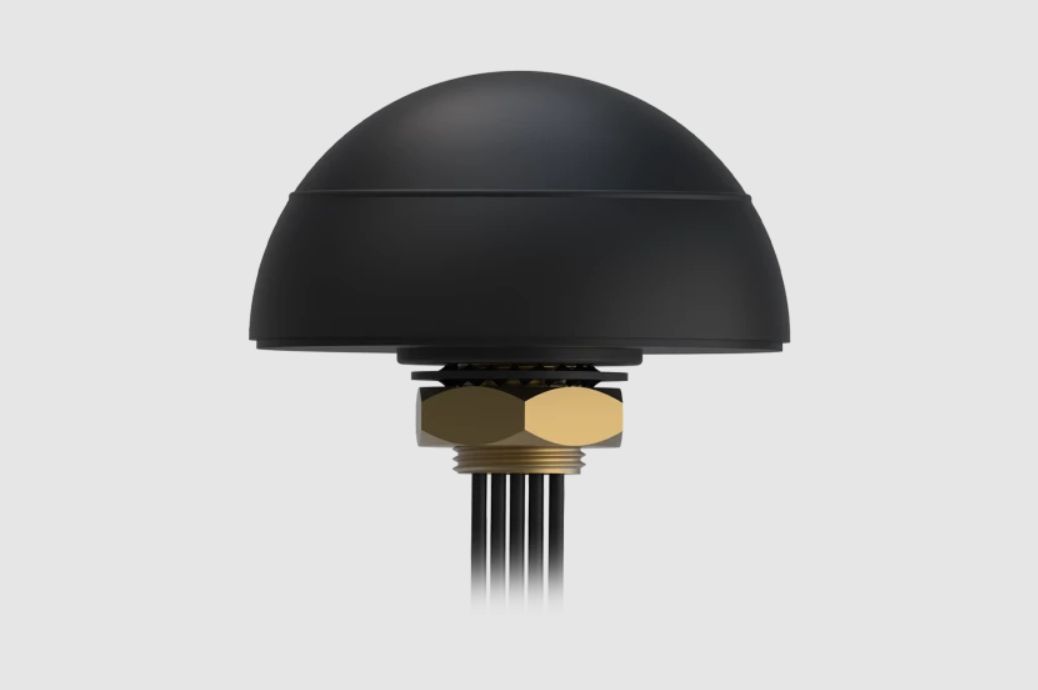

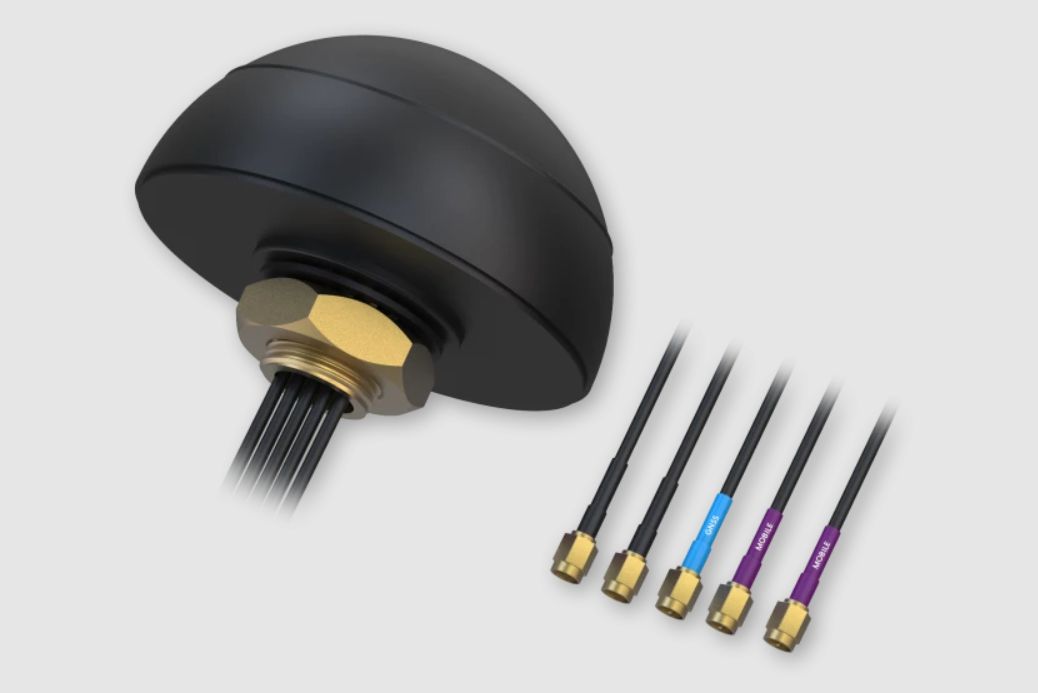

Teltonika Networks Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna is a multi-function antenna that combines several functions into a single device. It is designed to be mounted on the roof of a vehicle or other outdoor installation and can provide high-quality reception for multiple wireless communication technologies.

This antenna has three separate antenna elements: two MIMO (Multiple Input Multiple Output) for cellular communication, one GNSS (Global Navigation Satellite System) for positioning, and one for Wi-Fi communication. The MIMO antennas are designed to operate in 4G LTE and 5G cellular networks and can support multiple frequency bands, including 698-960 MHz, 1710-2700 MHz and 3400-3800 MHz. The GNSS antenna can receive signals from GPS, GLONASS, Galileo, and BeiDou satellites, providing accurate positioning data. Finally, the Wi-Fi antenna supports the 2.4 GHz and 5 GHz frequency bands, enabling use with many different Wi-Fi devices.

Overall, this antenna is designed to provide reliable wireless communication and positioning features for vehicles and other outdoor installations. Its compact size and durable construction make it suitable for a variety of environments, and its ability to support multiple communication technologies makes it a versatile solution for many different applications.

Antenna technical specifications

GNSS Antenna

• Frequency range: 1575 ~ 1610 MHz
• Polarization: RHCP
• Impedance: 50 Ω
• LNA gain: 28 ± 2 dB
• LNA noise: 1.5 dB
• Supply voltage: 3.0 – 5.0 VDC
• Current consumption: 15 mA
• LNA VSWR: 2.0
• Connector type: SMA male

LTE MIMO Antenna

• Frequency range: 698 ~ 960, 1710 ~ 2690 MHz
• Polarization: Linear
• Gain: 3.0 dBi
• VSWR: 3.0
• Impedance: 50 Ω
• Connector type: 2x SMA male

WIFI MIMO Antenna

• Frequency range: 2400 ~ 2483, 4900 ~ 5825 MHz
• Polarization: Linear
• Gain: 2.0 dBi
• VSWR: 2.5
• Impedance: 50 Ω
• Connector type: 2x RP-SMA male

Mechanical details

• Mounting method: Screw
• Radome protection rating: IP65
• Radome material: Black ABS plastic
• Housing dimensions: Ø 110 x 55 mm

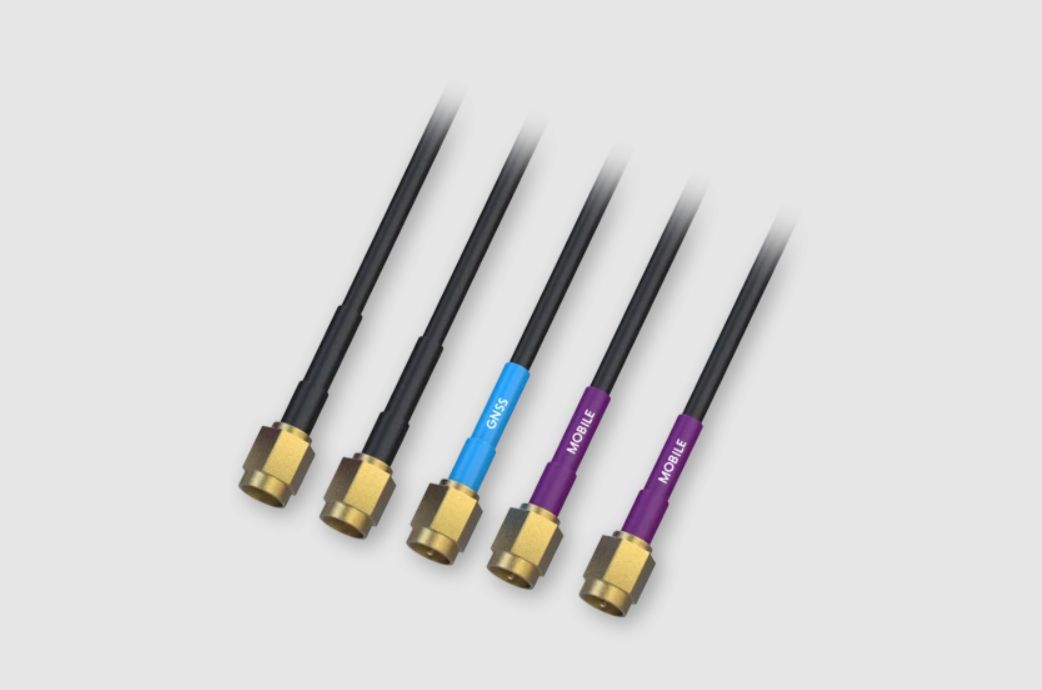

• Cable: 5x RG174, 3000 mm
• RoHS compliant: Yes
• Weight: 550 g

Fits e.g. the following Teltonika routers such as:

• RUT200
• RUT241
• RUT901
• RUT951
• RUT956
• RUT360
• RUTX09
• RUTX10
• RUTX11
• RUTX12
• RUTX14
• RUTXR1
