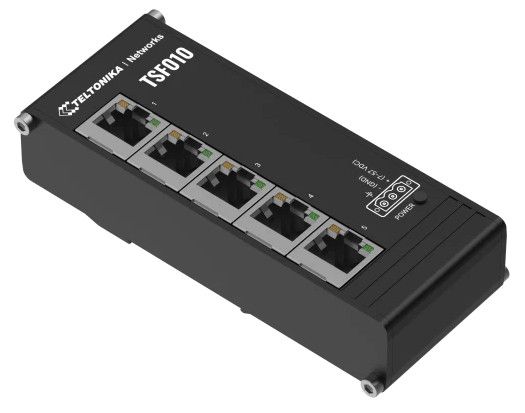

Teltonika TSF010 is a very compact unmanaged Ethernet switch that offers excellent connectivity and reliability for network and IoT applications. TSF010 supports DIN-rail mounting and operates without a separate fan, ensuring quiet and long-lasting operation even in demanding environments. Thanks to its small size, TSW030 is easy to fit into tight installation spaces.

Features

• DIN-rail mounting
• Compact and durable metal housing
• Low profile
• 2-pin power input
• Wide operating voltage range 7-57 V DC

Technical specifications

• Ethernet ports: 5 x 10/100 Mbps RJ45
• Power supply: 7-57 VDC
• Mounting: DIN-rail
• Operating temperature: -40°C ... +75°C
• Protection class: IP30
• Dimensions: 113 mm x 28 mm x 50 mm
• Weight: 142 g
• Enclosure: Metal
