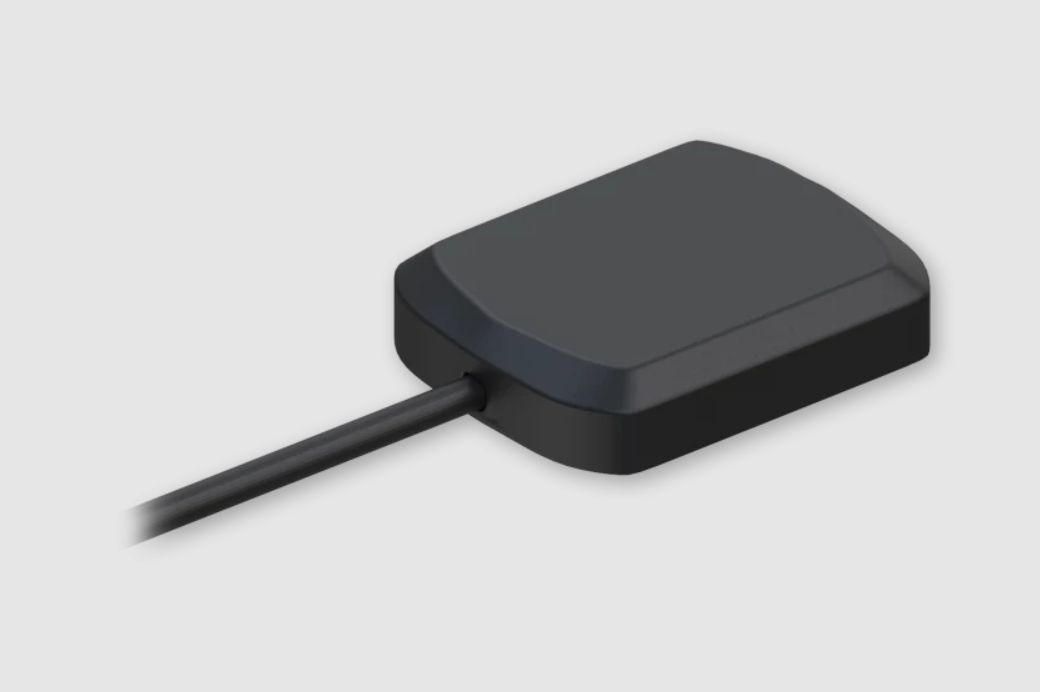

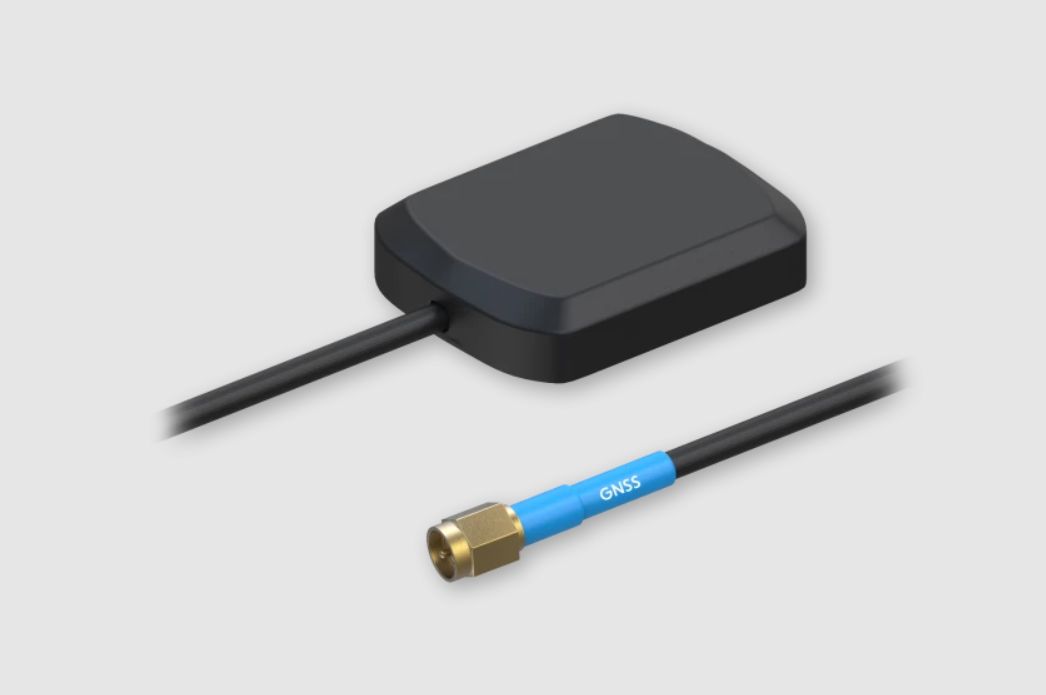

The antenna is very easy to install as it comes with adhesive mounting, allowing it to be attached directly to the device surface. The antenna has an SMA connector, which enables connection to many different devices.

Antenna technical specifications

• Frequency range: 1575 ~ 1602 MHz
• Polarization: RHCP
• Gain: 2.0 dBi
• VSWR: 1.5
• Impedance: 50 Ω
• Axial ratio: 3 dB
• LNA gain: 26 ± 2 dB
• LNA noise: 1.5 dB
• Voltage: 2.2 - 5.0 VDC
• Current consumption: 5 - 15 mA
• LNA VSWR: 2.0
• Cable: RG174, 3000 mm

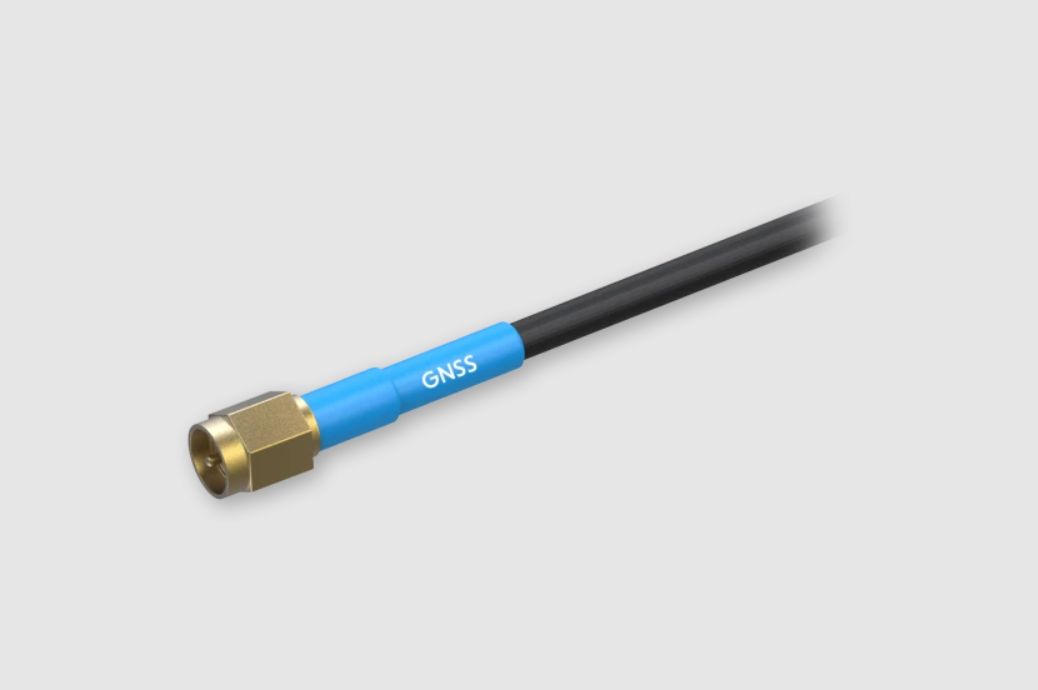

• Connector type: SMA male
• Mounting method: Adhesive mounting
• Operating temperature: -40 ~ +85
• Operating relative humidity: 95 %
• RoHS directive compliant: ✓

Works with the following Teltonika routers, among others:

• RUTX09
• RUTX11
• RUTX12
• RUTX14
• RUTX50
• TRB245
• TRB255
