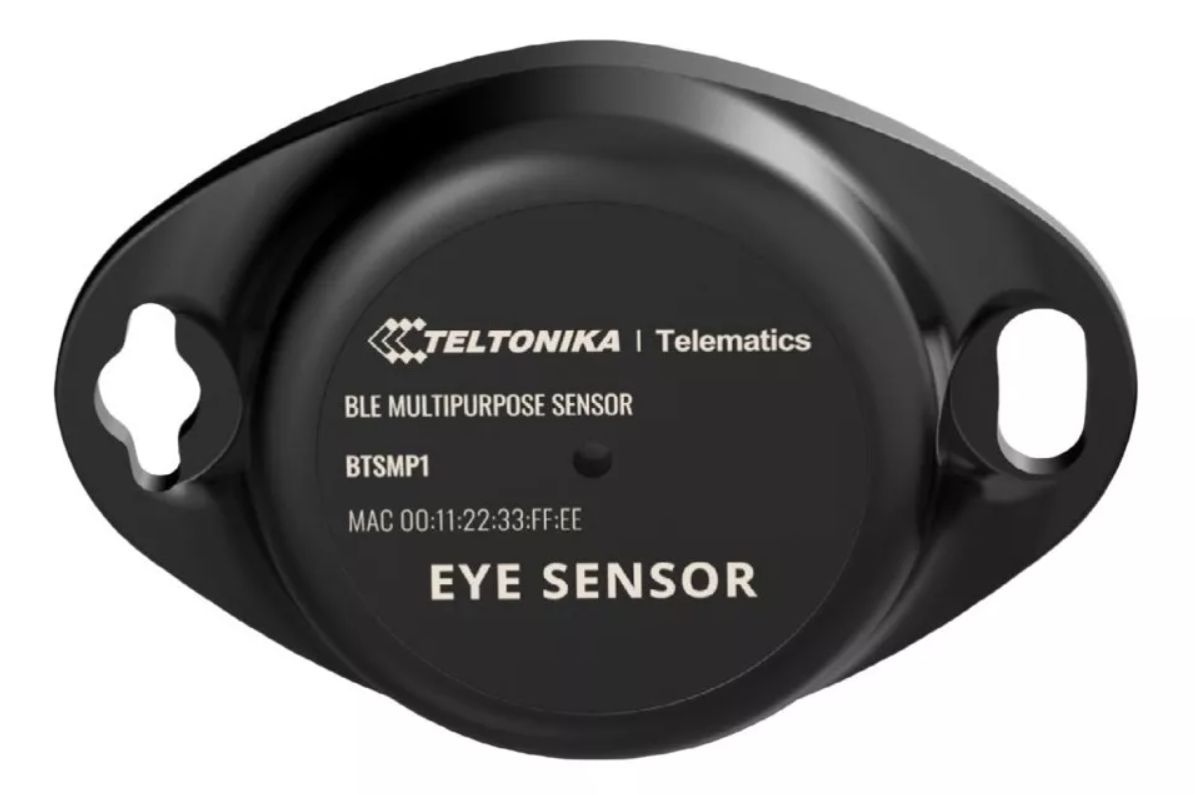

Teltonika BTSMP1 - Ideal for tracking applications, monitoring deliveries, tracking various moving logistics items (trailers, containers), in agriculture (tractor attachments) and in construction (tools and inventory). Includes four different sensors.
Perfect for tracking use, monitoring various moving objects in logistics (trailers, containers), agriculture (tractor attachments) and construction (tools and inventory). Thanks to sensor data, it is especially suitable for refrigerated equipment use cases in the cold chain.
The built-in accelerometer can detect object movement, tilt and rotation. Magnetic detection can be used for wireless open/closed detection and alerts, for example in events related to a truck trailer door. The EYE sensor supports iBeacon and Eddystone protocols. The device is fully compatible with the Teltonika firmware platform, which provides extended features. Configure, scan and update anytime and anywhere with Teltonika’s own mobile app

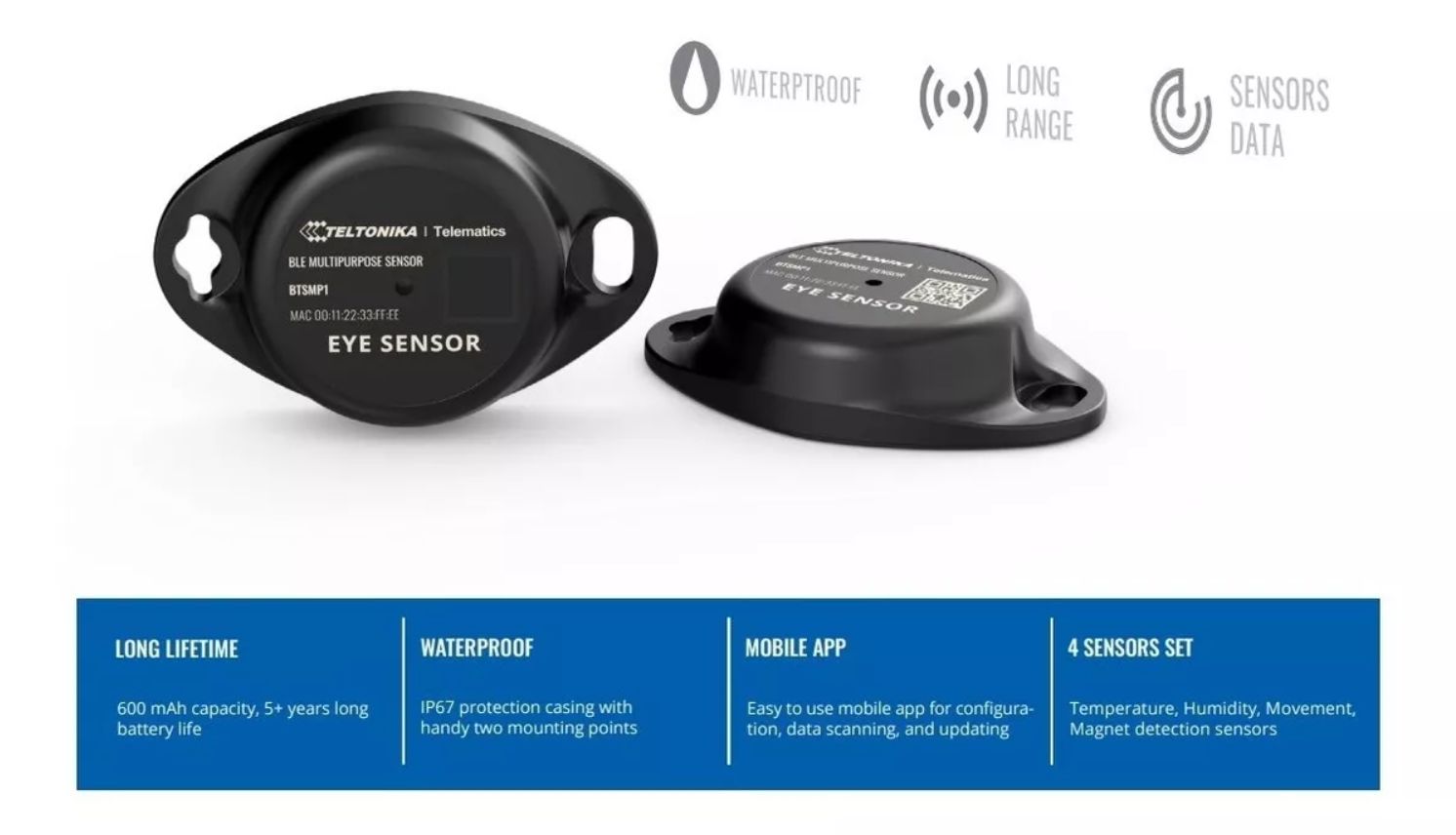

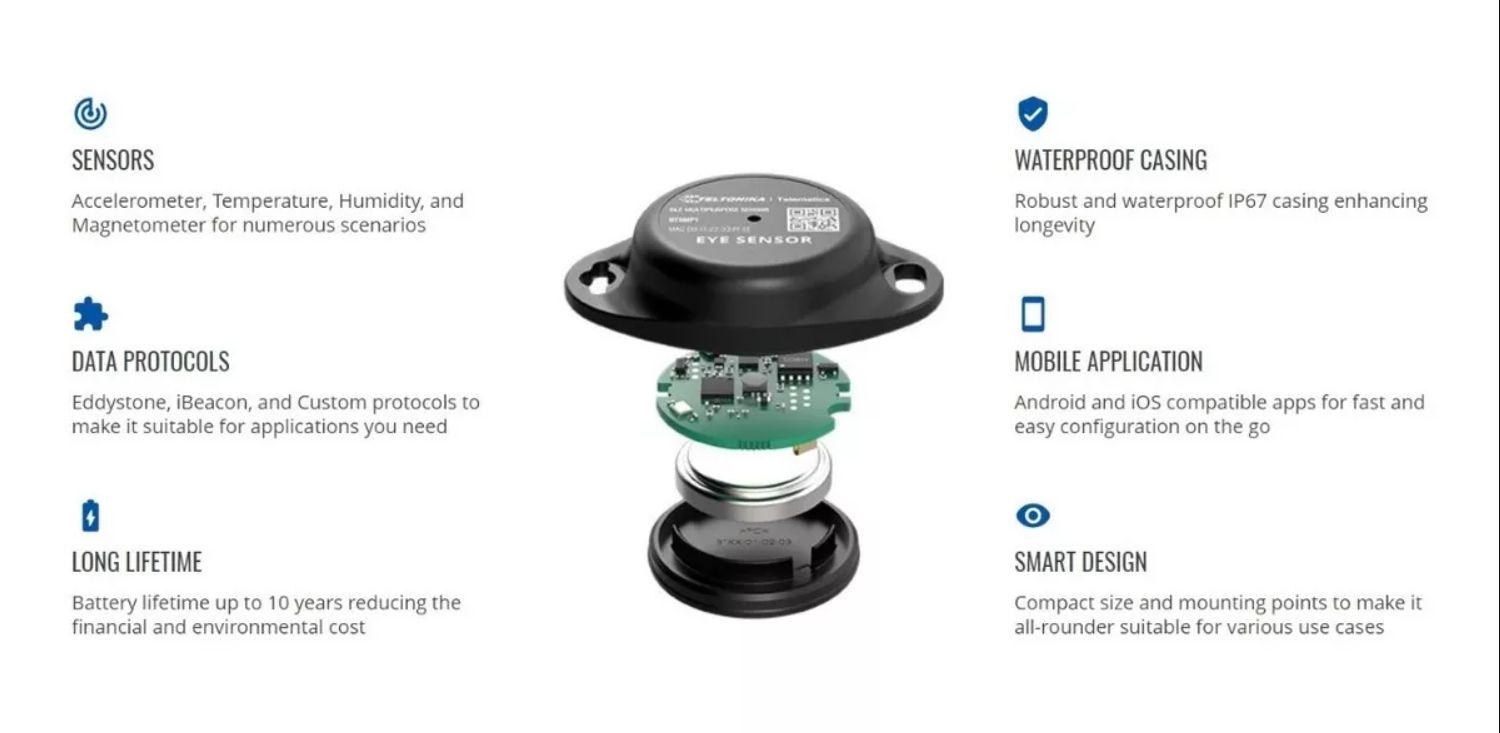

Features
SENSORS: Accelerometer, temperature and humidity sensors, and a magnet sensor for various situations
DATA PROTOCOLS: Eddystone, iBeacon and custom protocols, making it suitable for the applications you need
LONG BATTERY LIFE: Battery life up to 10 years, reducing financial and environmental impact
WATERPROOF HOUSING: Durable and waterproof EYE Beacon (IP67) and EYE Sensor (IP67) housing to extend service life
EYE APP: Intuitive Teltonika mobile app for quick configuration and data scanning
SMART DESIGN: Compact size and mounting points make it versatile and suitable for different use cases
Technical specifications
Technical specifications
Dimensions and weight
Dimensions
56,6 mm x 38 mm x 13 mm
Weight
18 g
Connectivity
Bluetooth
Compliant with Bluetooth 4.2 standard, Bluetooth 5.2 certified
Range
80 m
Available transmit powers
Up to 8 dBm
Sensitivity
-88 dBm
Battery and power
Model
CR2450
Type
Lithium, Manganese Dioxide (Li/MnO2)
Total capacity
600 mAh
Replaceable
No
Battery life (Tx=2 dBm; interval: 3 s)
2.5+ years
Battery life (Tx=2 dBm; interval: 5 s)
4+ years (default setting)
Battery life (Tx=2 dBm; interval: 10 s)
5+ years
Electronics
Microcontroller
ST Microelectronics BlueNRG-2
Quartz crystals
32.768 kHz, 16 MHz
Bluetooth operating frequency
2.402 - 2.480 GHz
Bluetooth antenna gain (peak)
1.2dBi
Functions
Beacon identifier, LED, temperature, humidity, accelerometer, magnetic detection
Housing
Protection
IP67
Mounting
Two holes for screwing/tying/cable tie mounting, adhesive tape
