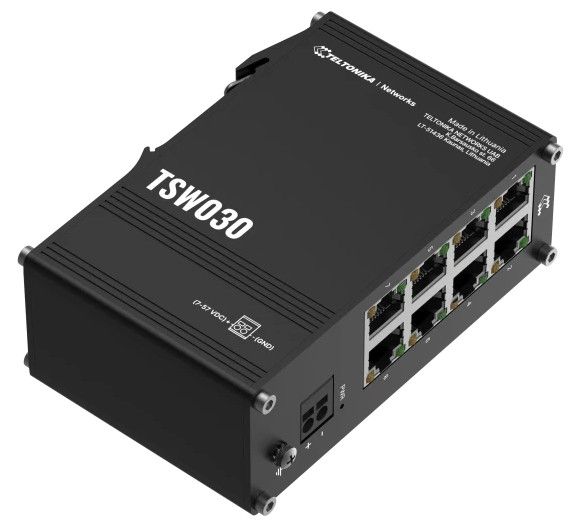

Teltonika TSW030 is an industrial-grade unmanaged Ethernet switch that provides excellent connectivity and reliability for network and IoT applications. TSW030 supports DIN-rail mounting and operates without a separate fan, ensuring quiet and long-lasting operation even in demanding environments. The power consumption of the TSW030 is very low, up to 1.5W in use and 0.5W in standby.

Features

• DIN-rail mounting
• Compact and durable metal construction
• 2-pin power input
• Wide operating voltage range 7-57 V DC

Technical specifications

• Ethernet ports: 8 x 10/100 Mbps RJ45
• Power supply: 7-57 VDC
• Mounting: DIN-rail
• Operating temperature: -40°C ... +75°C
• Enclosure rating: IP30
• Dimensions: 113.1 mm x 41.2 mm x 74.6 mm
• Weight: 256 g
• Enclosure: Metal
