Description

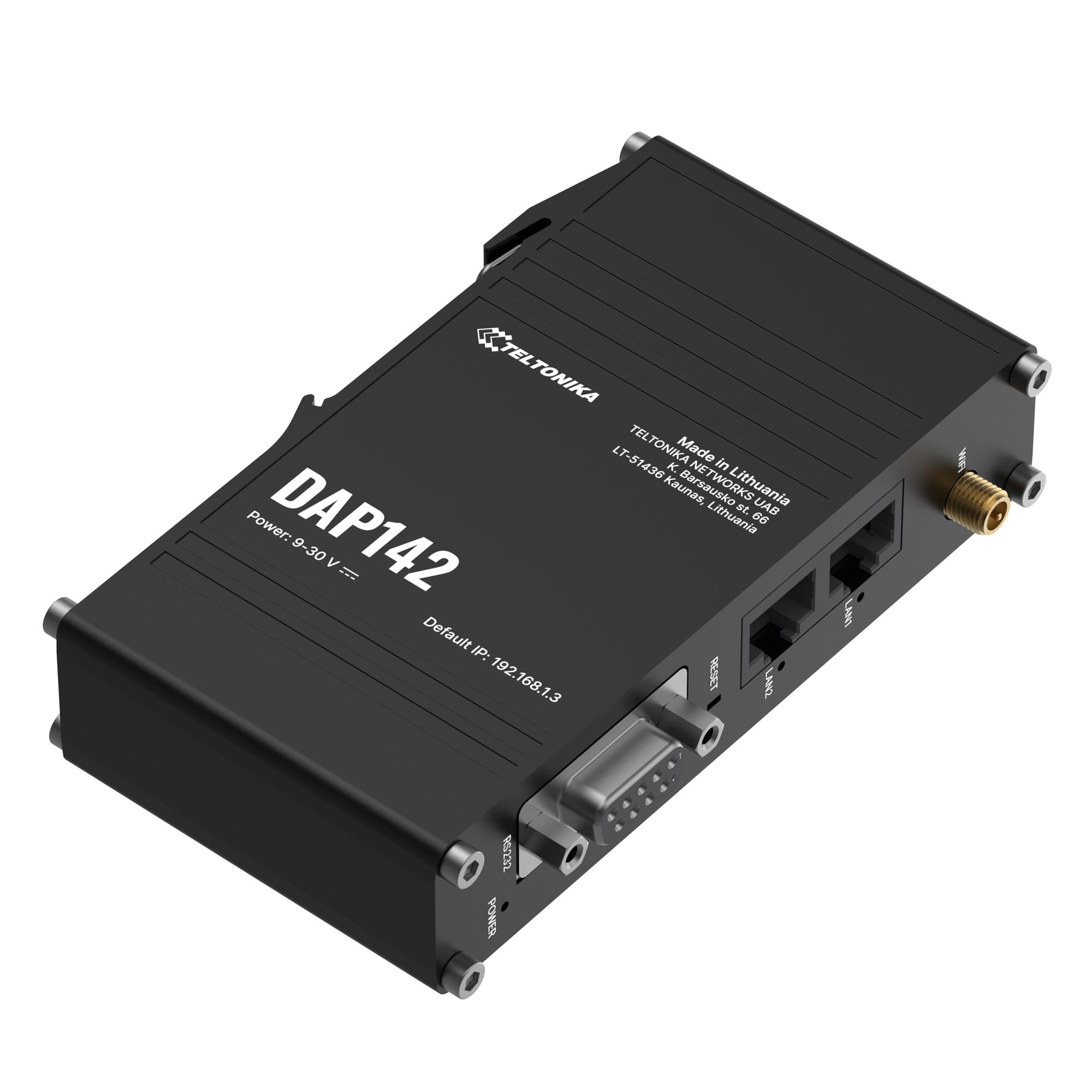

The DAP142 is a Teltonika industrial-grade wireless access point that supports passive PoE and is designed to improve Wi‑Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and it is powered by a 3‑pin power connector, making it ideal for specialized industrial applications. In addition to Wi‑Fi 4 features, the DAP142 supports Wi‑Fi mesh networks, Fast Roaming, and up to 50 simultaneous clients. An integrated DIN‑rail mount, rugged aluminum enclosure, and plug‑and‑play functionality make this wireless access point a simple-to-install and configure solution.

Key features

• Easy installation with plug‑and‑play operation

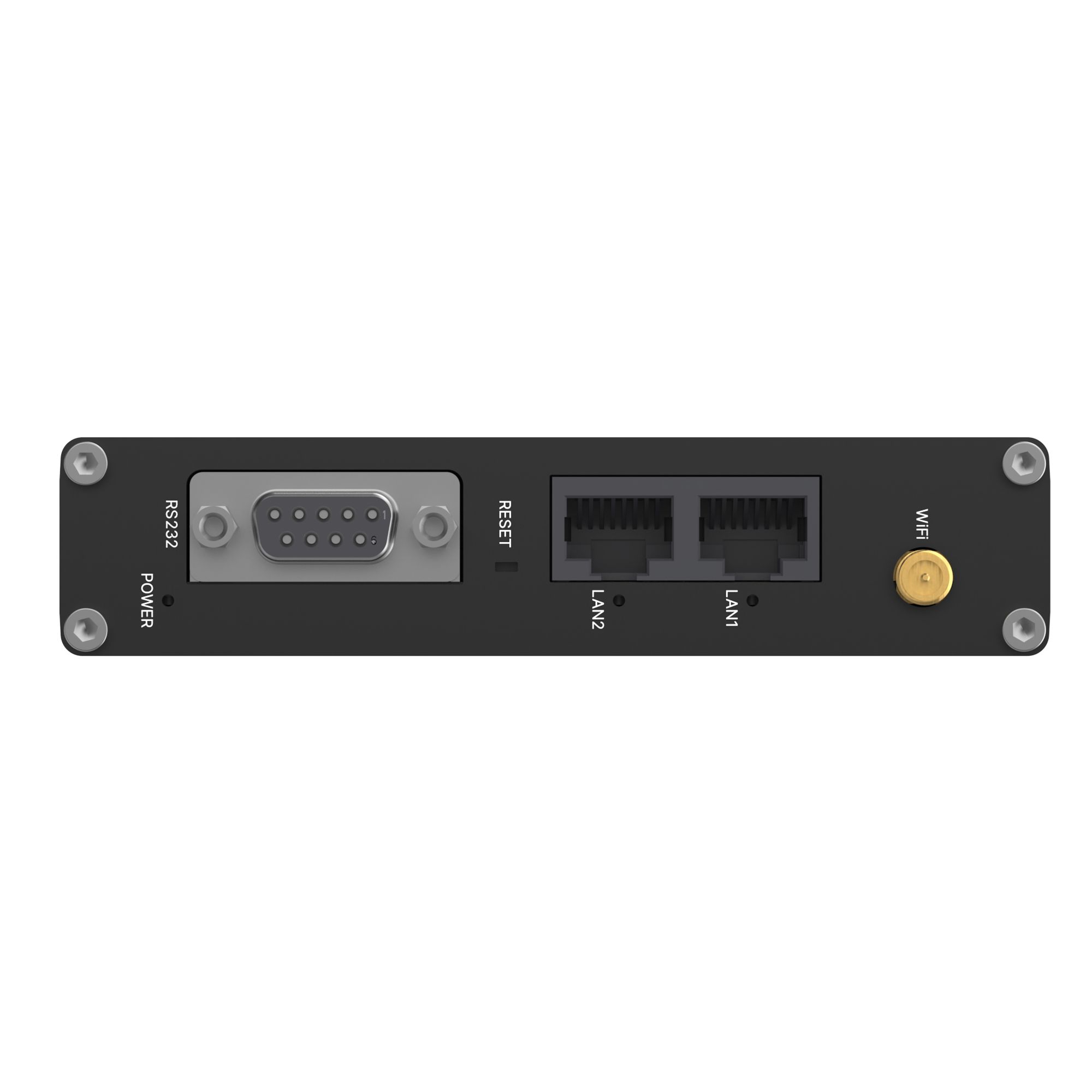

• 2 x 10/100 RJ45 Ethernet ports & 1 x RS232 port
• Seamless Wi‑Fi 4 operation with Wi‑Fi mesh networks and Fast Roaming
• 1 x 3‑pin power connector for industrial use

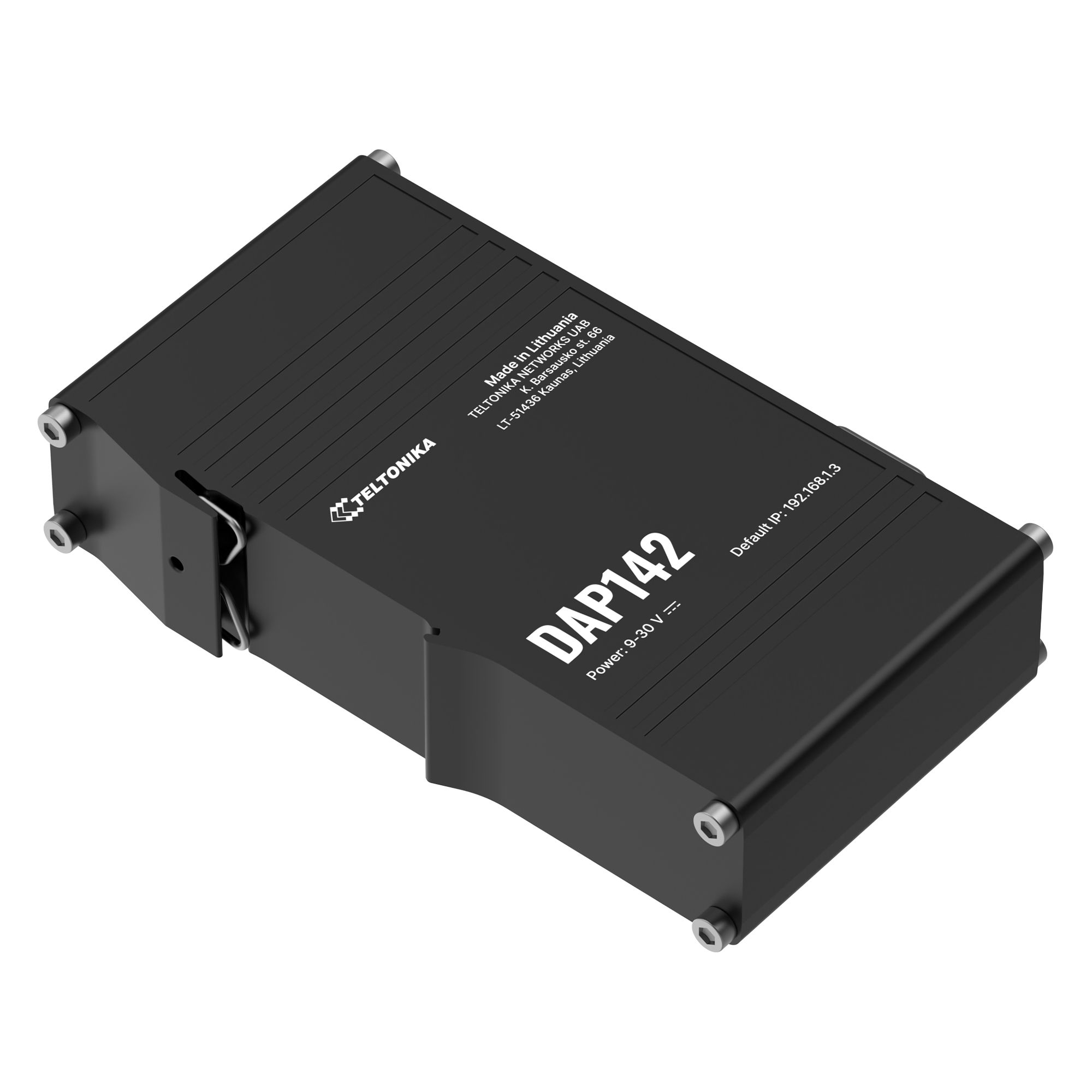

• Integrated DIN‑rail mount

Hardware

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Storage: 16 MB, NOR Flash

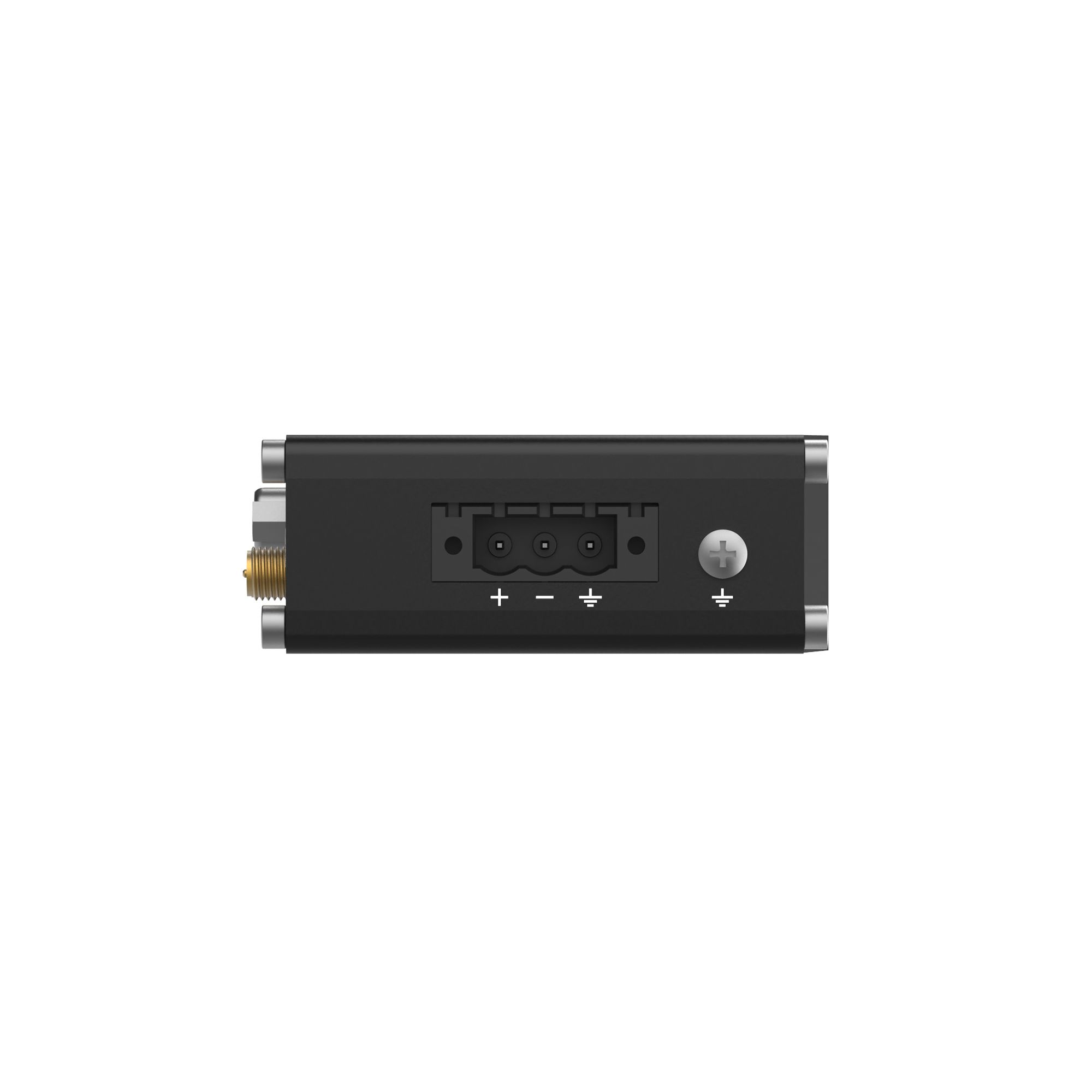

• Power options: 3‑position pluggable terminal block, 9‑30 VDC
• Antenna connectors: 1 x RP‑SMA for Wi‑Fi
• Ethernet: 2 x RJ45 ports, 10/100 Mbps (2 x LAN)
• Wi‑Fi: IEEE 802.11b/g/n (Wi‑Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
• Serial interface: RS232
• Grounding: 1 x grounding screw
• Status LEDs: 2 x LAN status LEDs, 1 x Power LED
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum enclosure
• Dimensions (L x H x W): 113.10 x 25 x 68.6 mm
• Weight: 149.2 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Wireless features: Wi‑Fi security, SSID/ESSID, Wi‑Fi users, Wireless connection features, Wireless MAC filter, Wireless QR code generator, TravelMate
• Network features: VoIP passthrough, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support, Traffic shaping
• Security: Authentication, Firewall, Intrusion prevention, VLAN, WEB filtering, Access control, SSL certificate generation
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
• Monitoring and management: WEB interface, FOTA, SSH, Email, TR‑069, MQTT, SNMP, JSON‑RPC, MODBUS, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub
• Services: BacNET, OPC UA, Modbus, Data to server, Modbus MQTT GATEWAY, DNP3, DLMS

Package contents

• Industrial access point DAP142
• 3‑pin power connector
• 1 x Wi‑Fi antenna (magnetic mount, RP‑SMA male)
• QSG (Quick Start Guide)
• Packaging box
