Description

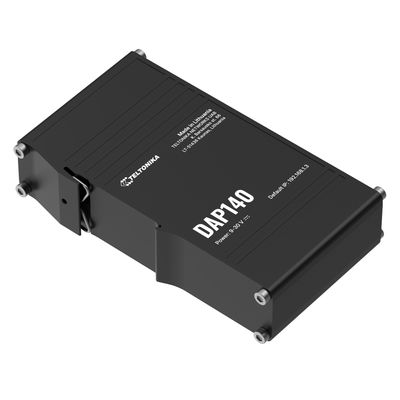

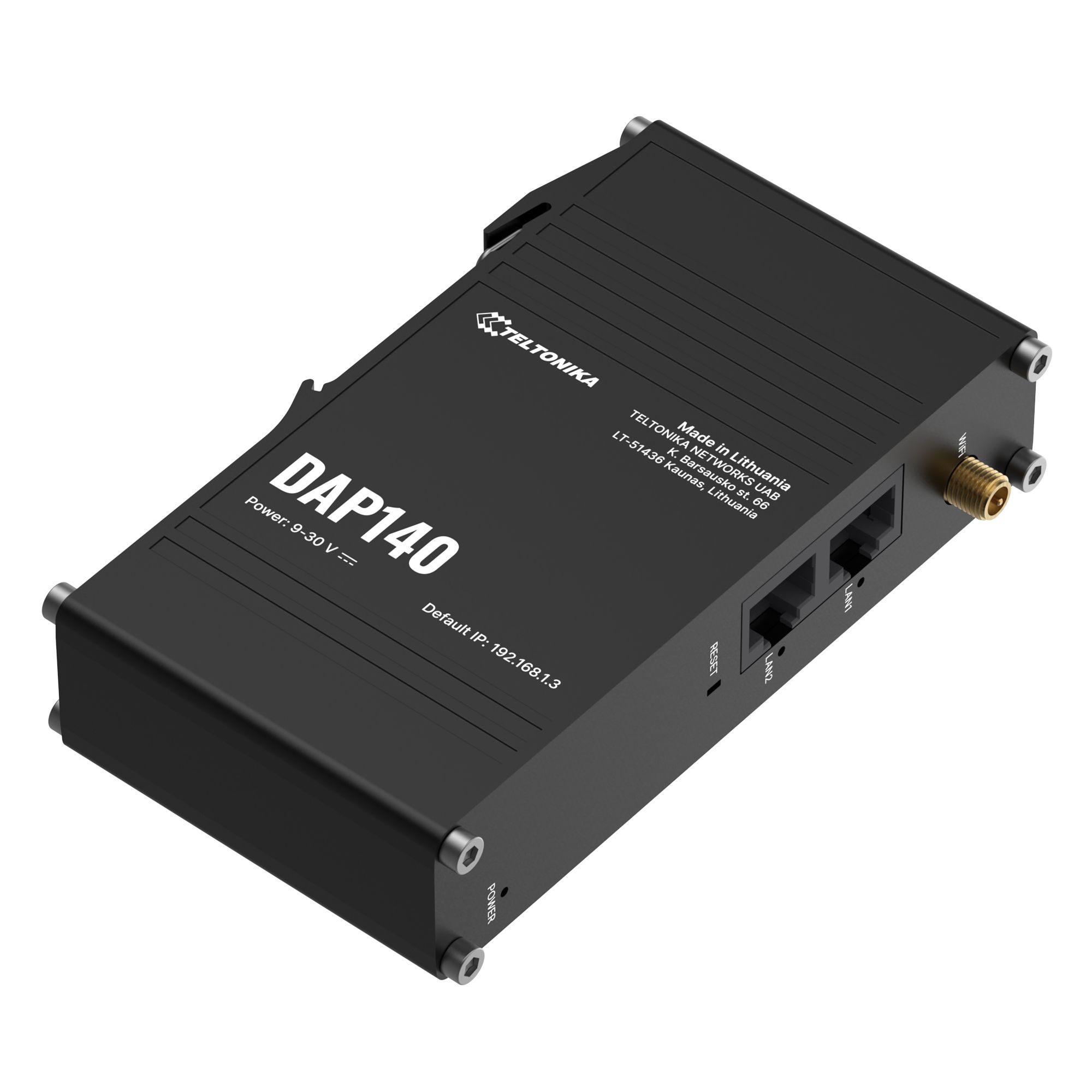

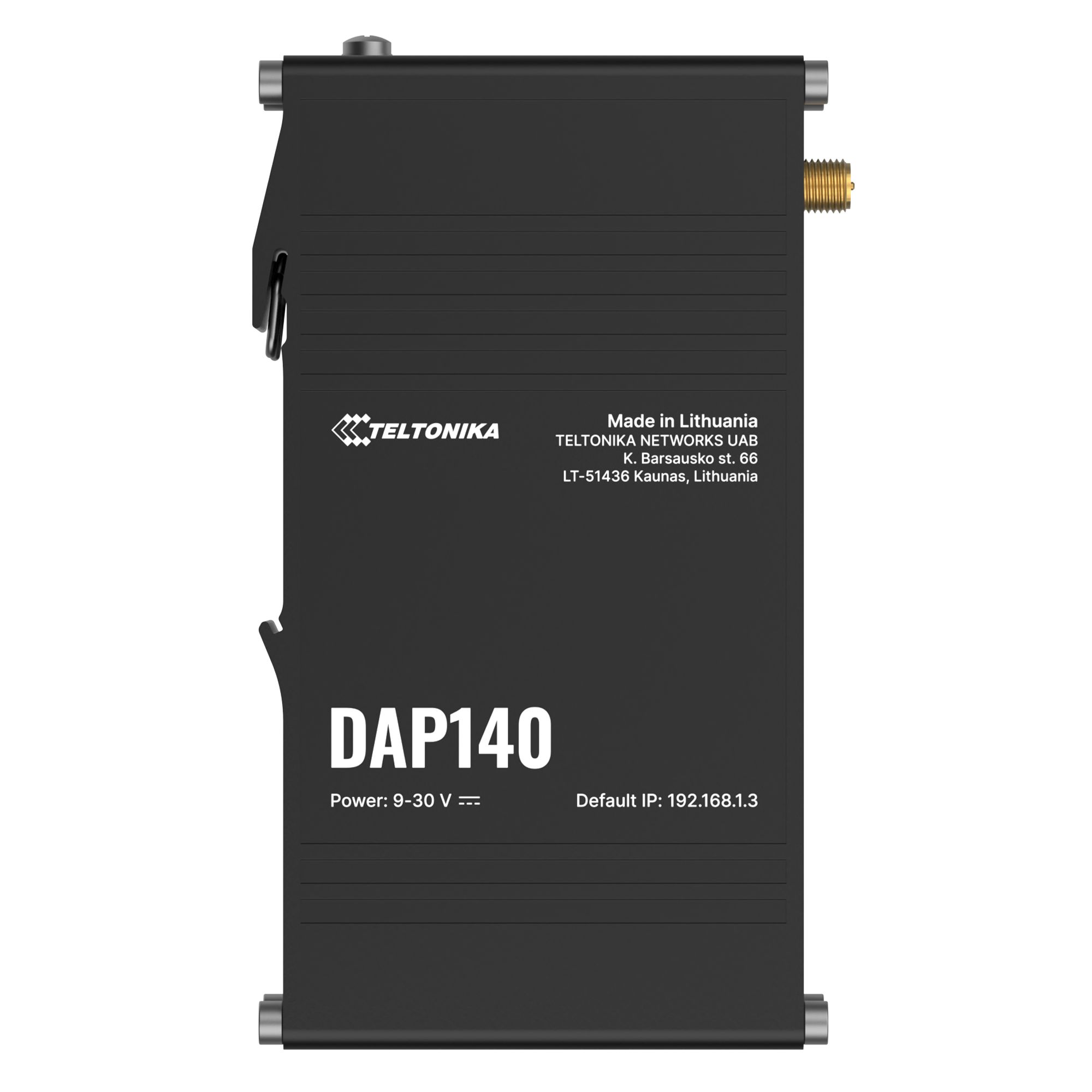

The DAP140 is a Teltonika industrial-grade wireless access point that supports passive PoE-in power and is designed to improve Wi-Fi coverage and performance in industrial environments. It supports Wi-Fi 4 technology, Wi-Fi mesh networks and Fast Roaming, and enables up to 50 simultaneous connections via two RJ45 ports. This wireless access point is essential for maintaining a reliable connection. An integrated DIN-rail mount, 3-pin power connector and industrial-grade aluminum enclosure make the DAP140 an ideal access point for industrial use.

Key features

• Easy installation and deployment with plug-and-play operation
• 2 x 10/100 RJ45 Ethernet ports
• Seamless Wi-Fi 4 with Wi-Fi mesh and Fast Roaming support
• 1 x 3-pin industrial power connector

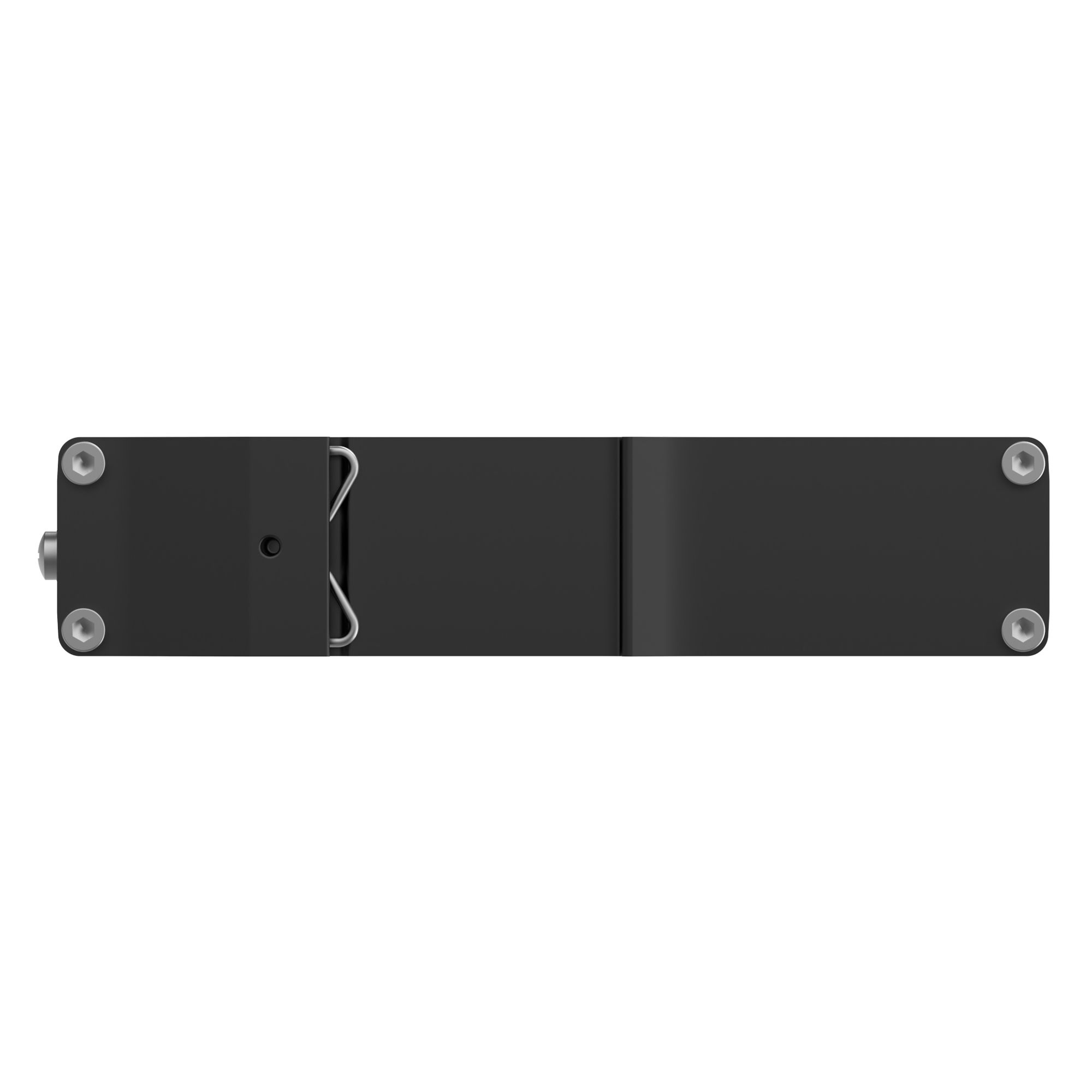

• Integrated DIN-rail mount

Hardware

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Storage: 16 MB, NOR Flash

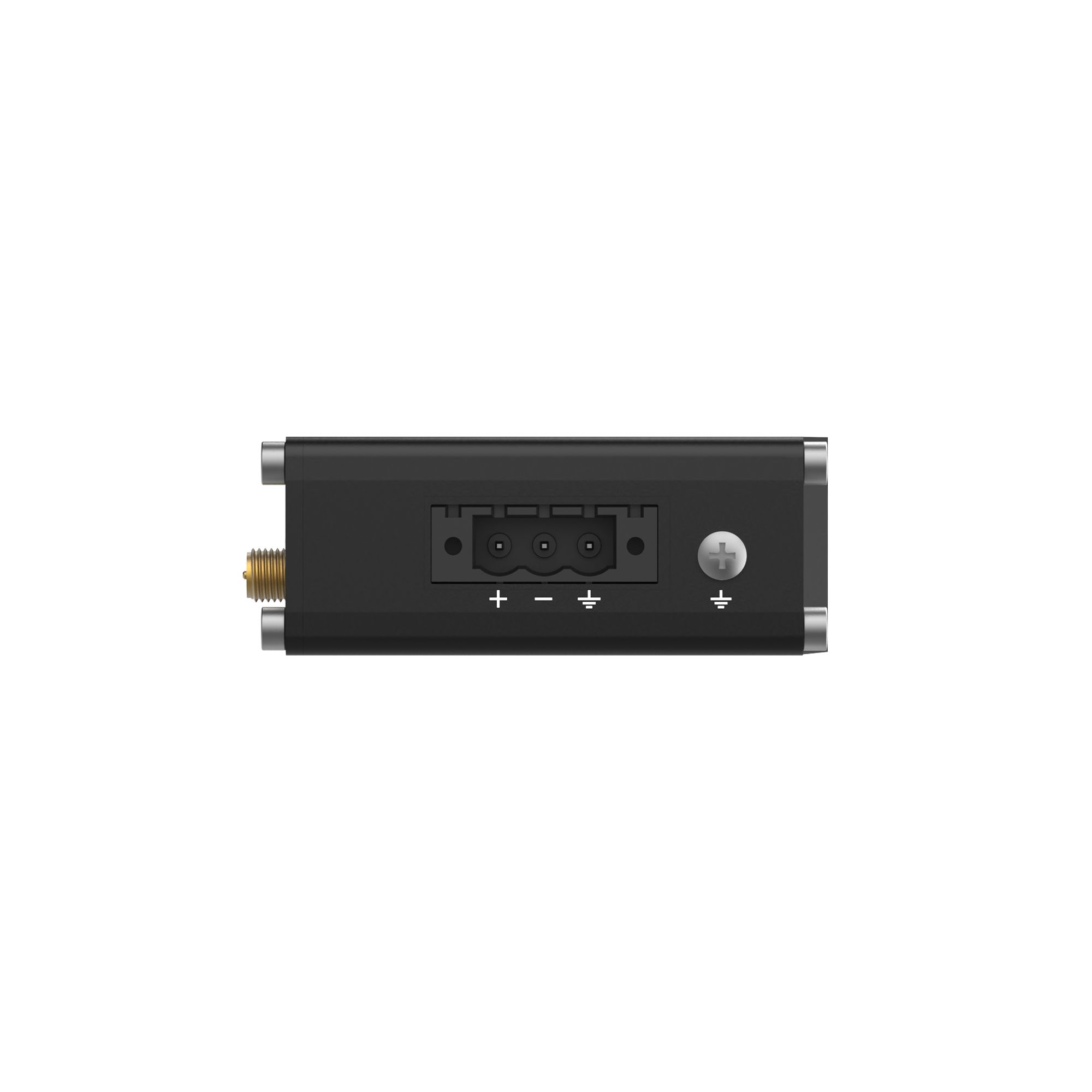

• Power options: 3-position removable terminal block, 9-30 VDC
• Antenna connectors: 1 x RP-SMA for Wi-Fi

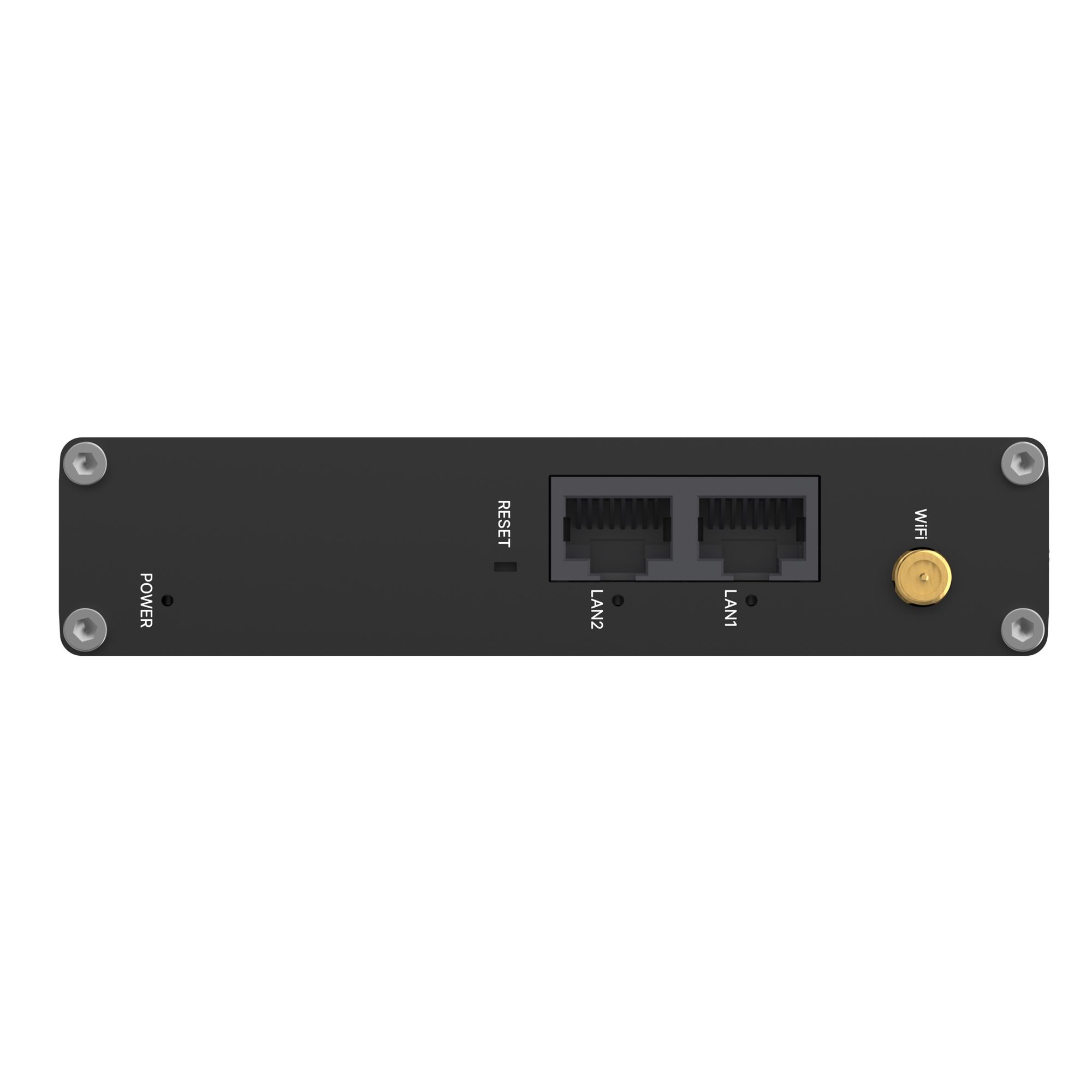

• Ethernet: 2 x RJ45 ports, 10/100 Mbps
• Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA), Mesh (802.11s), Multi AP
• Grounding: 1 x grounding screw
• Status LEDs: 2 x LAN LEDs, 1 x Power LED
• Operating temperature: -40 °C - 75 °C
• Enclosure: Aluminum enclosure
• Dimensions (L x H x W): 113.10 x 25 x 68.6 mm
• Weight: 149.2 g

Software

• Operating system: RutOS (OpenWrt-based Linux OS)
• Wireless features: Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless connection features, Wireless MAC filter, Wireless QR code generator, TravelMate
• Network features: VoIP passthrough, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, Hotspot, DHCP, QoS / Smart queue management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support, Traffic shaping
• Security: Authentication, Firewall, Intrusion prevention, VLAN, WEB filtering, Access control, SSL certificate generation
• VPN and tunneling: OpenVPN, OpenVPN encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
• Monitoring and management: WEB interface, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub
• Services: OPC UA, Modbus, Data to server, Modbus MQTT BRIDGE, DNP3, DLMS, API

Package contents

• Industrial access point DAP140
• 3-pin power connector
• 1 x Wi-Fi antenna (magnetic mount, RP-SMA male)
• QSG (Quick Start Guide)
• Packaging box

Links

• DAP140 product page
• DAP140 Wiki
