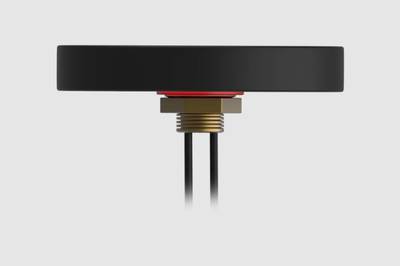

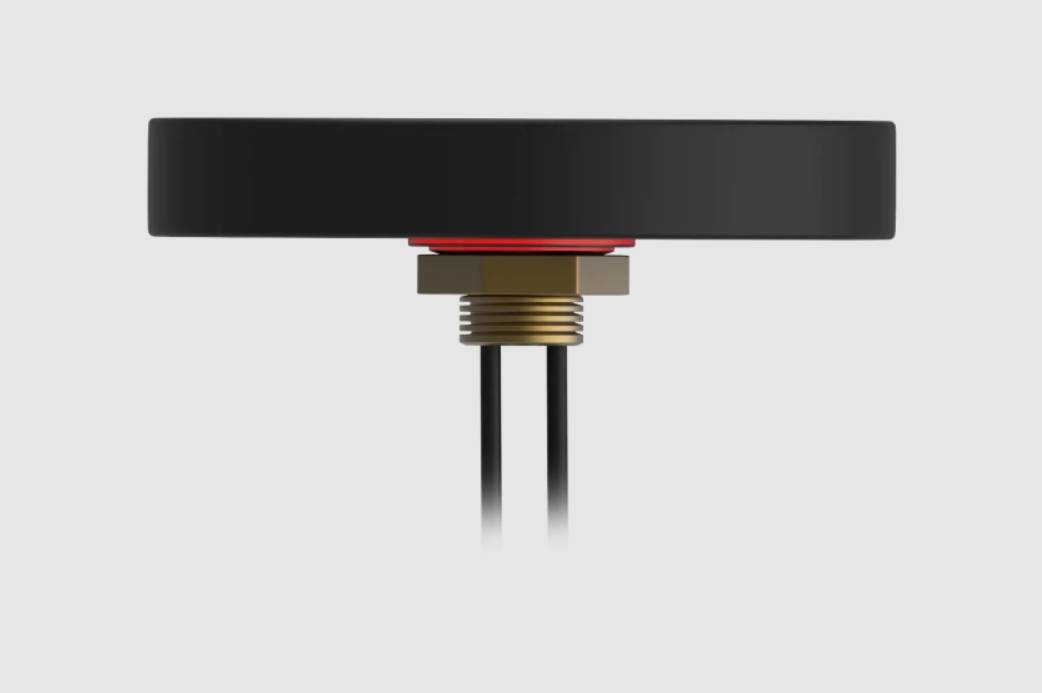

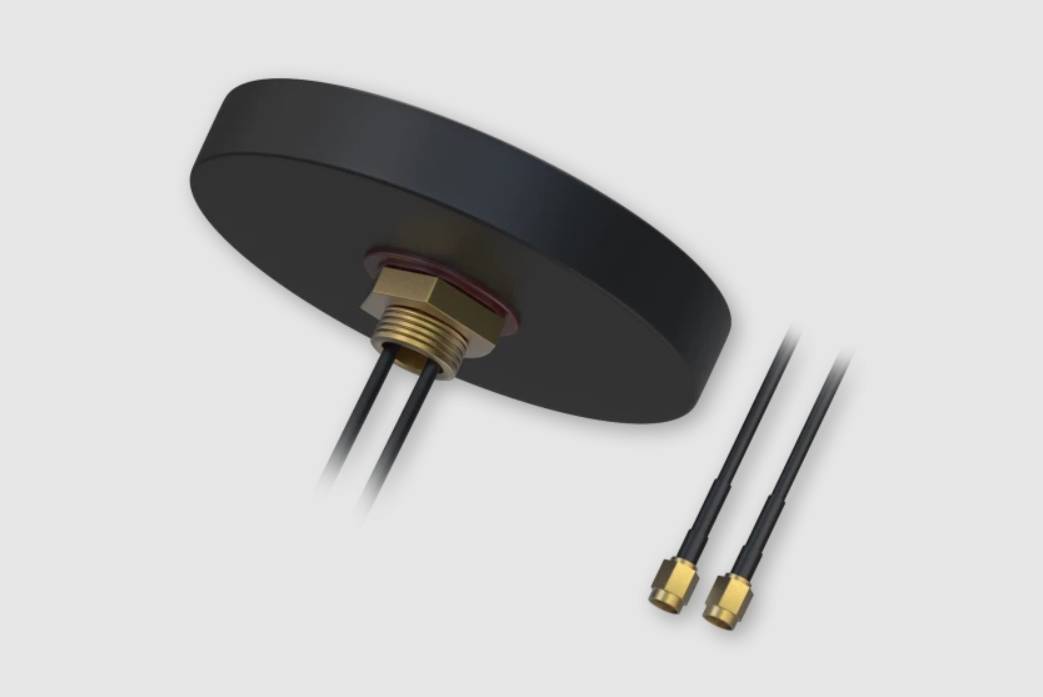

COMBO MIMO MOBILE ROOF SMA ANTENNA is designed for use in 2G, 3G and 4G networks, and it provides two multi-band antennas in one package. The antenna is intended for roof mounting, and it is delivered with all necessary brackets and installation accessories.

The antenna is specifically designed for Teltonika routers. The antenna is built to withstand external weather conditions and is made from high-quality materials to ensure long life and reliability.

Antenna specifications

• Frequency range: 698 ~ 960 / 1710 ~ 2690 MHz
• Polarization: Linear
• Main antenna gain: 2,5 dBi
• Auxiliary antenna gain: 2,0 dBi
• VSWR: 3,0
• Impedance: 50 Ω
• Connector type: SMA male

Mechanical details

• Mounting method: Screw
• Radome protection rating: IP65
• Radome material: Black ABS
• Enclosure dimensions: Ø 80 x 15 mm

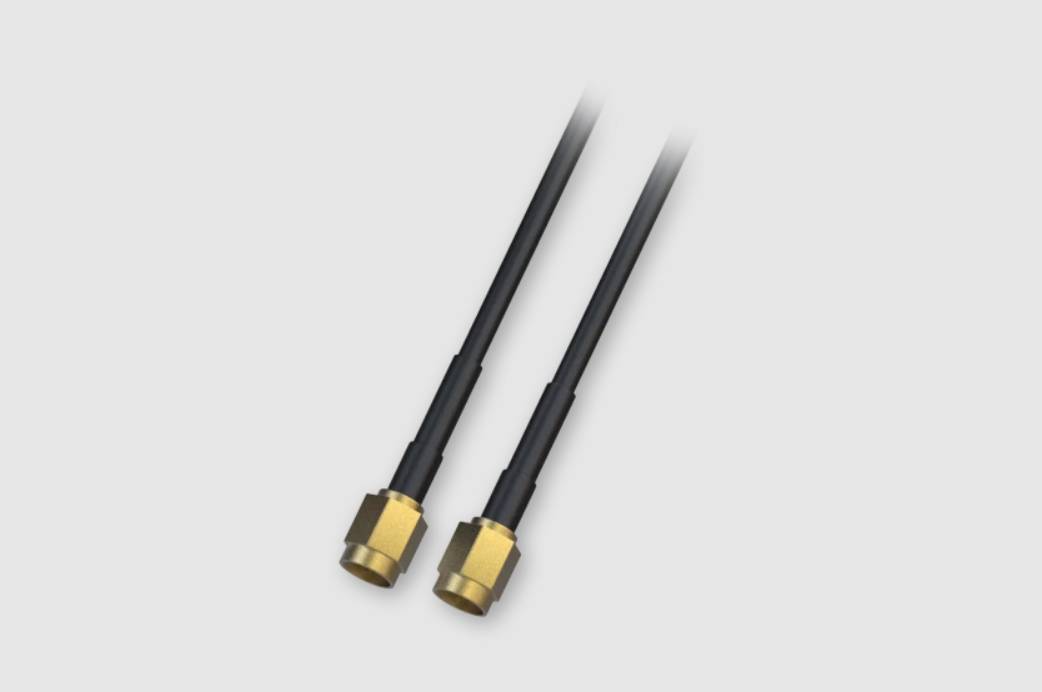

• Cable: 2x RG174, 3000 mm
• RoHS compliant: ✓
• Weight: 250 g

Compatible with, among others, the following Teltonika routers:

• RUT200
• RUT241
• RUT901
• RUT951
• RUT956
• TCR100
• RUT360
• RUTX09
• RUTX11
• RUTX12
• RUTX14
• RUTXR1
