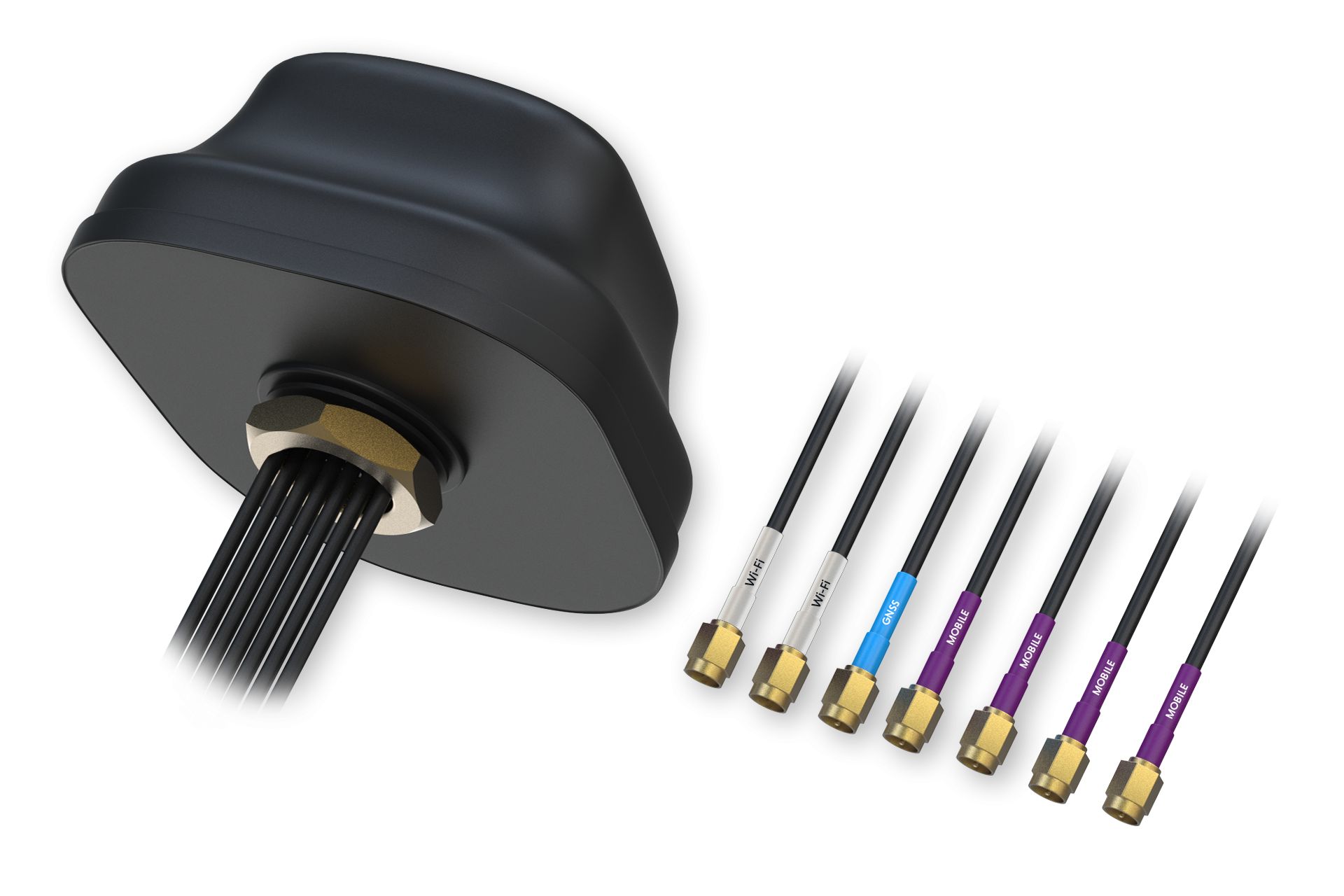

Technical specifications

• Frequency range: 617-960 / 1710-2690 / 2900-4200 MHz
• Polarization: linear
• V.S.W.R.: ≤3.0
• Impedance: 50 Ohm
• Connector: 4 x SMA male

• Frequency range: 1164-1300 / 1559-1610 MHz
• Polarization: RHCP
• Supply voltage: 3-12 VDC
• LNA gain: 40 ± 2 dB
• V.S.W.R.: ≤2.0
• Impedance: 50 Ohm
• Current consumption: ≤60 mA
• Connector: SMA male

• Frequency range: 2400-2483.5 / 4900-5925 MHz
• Polarization: linear
• Gain: 4.0 dBi
• V.S.W.R.: ≤2.5
• Impedance: 50 Ohm
• Connector: 2 x RP SMA male

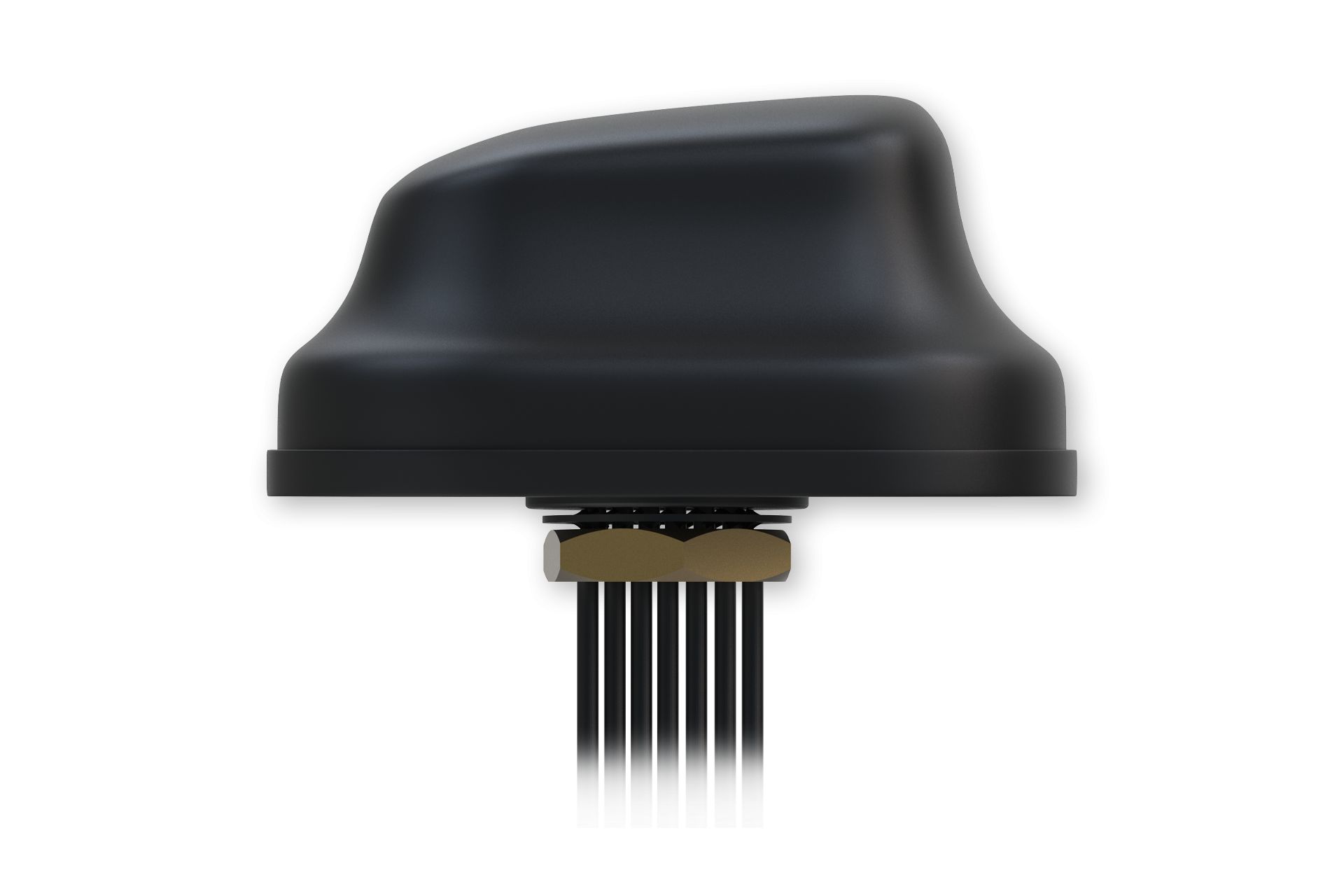

• Mounting method: screw-mounted
• IP67 rated (excluding cable outlet)
• Radome material: UV-resistant ABS/PC
• Weight: approx. 960 g
• Dimensions: 189 x 182 x 85 mm

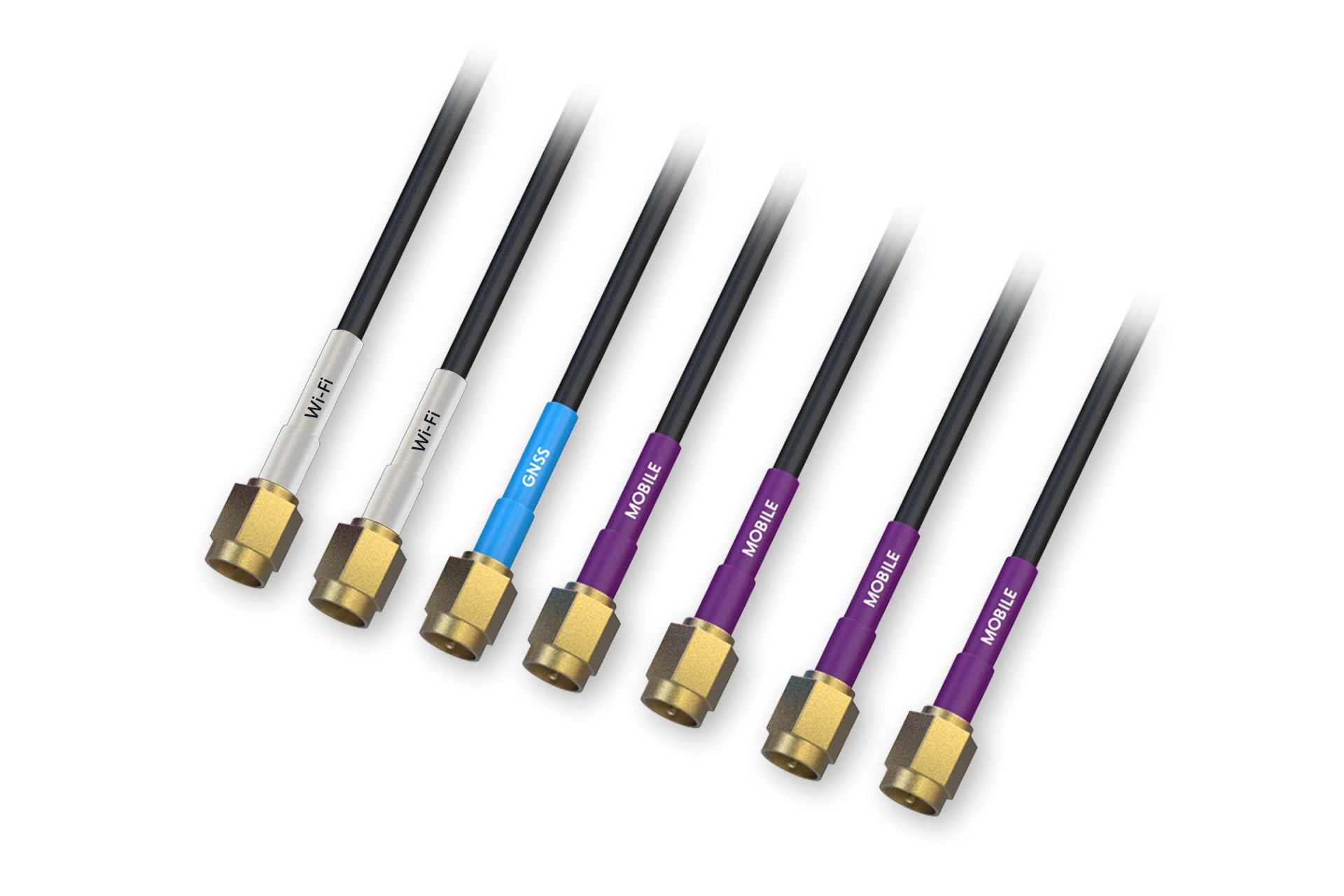

• Cable: 7 x LMR100, 3 metres
• Recommended mounting hole diameter 28 mm
• Operating temperature: -40...+85° C
• RoHS compliant

Compatible with the following Teltonika routers, e.g.:

• RUTX50
• TRB500
