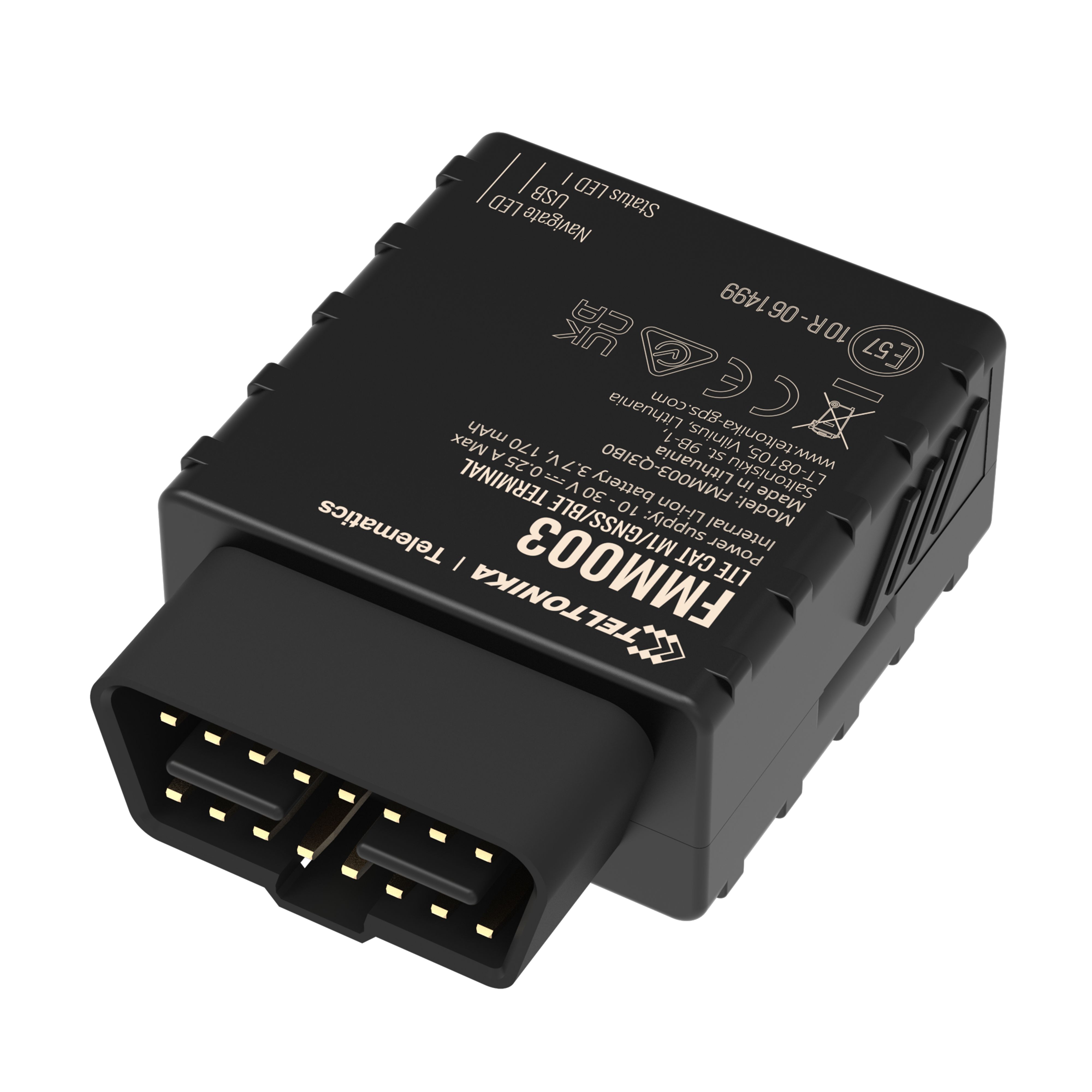

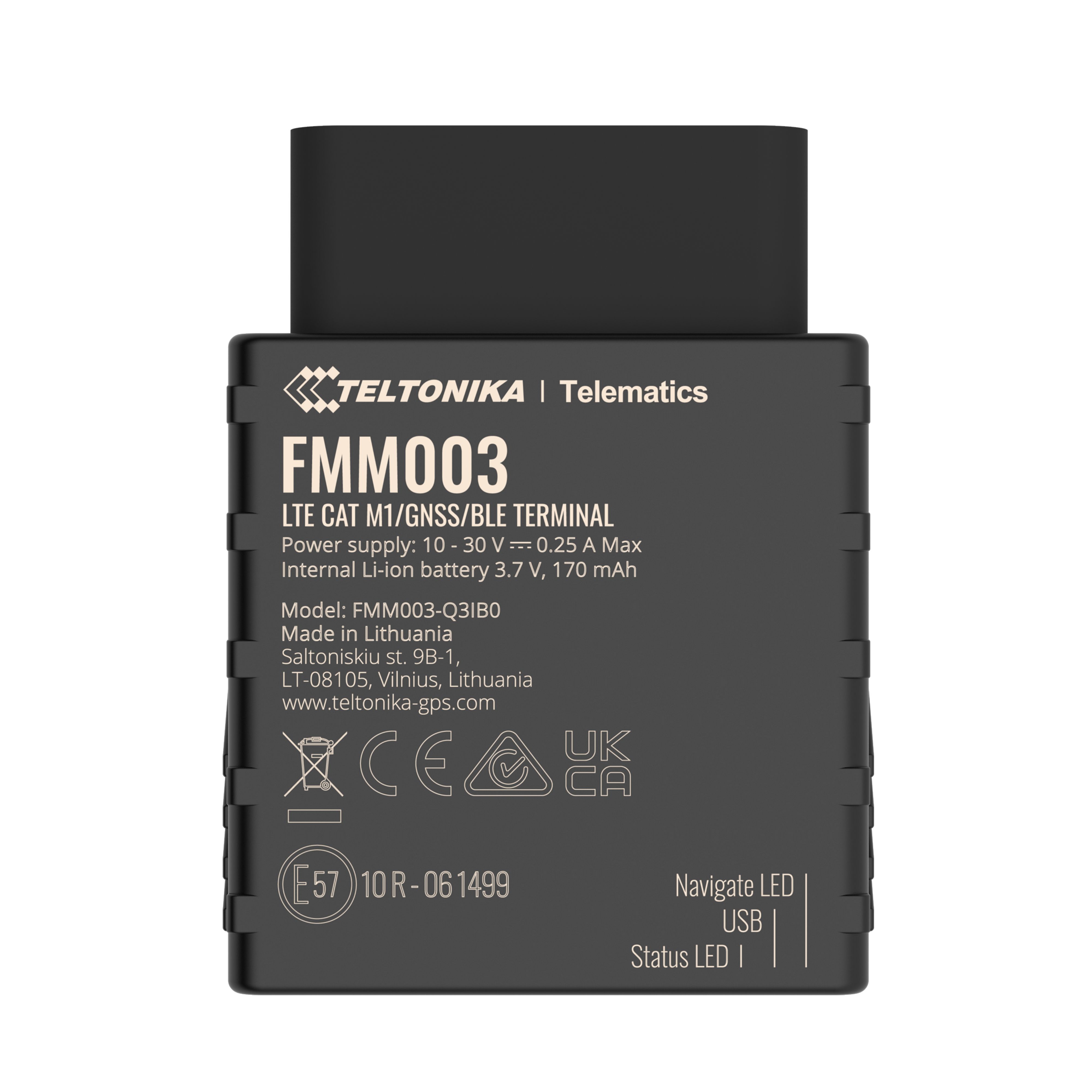

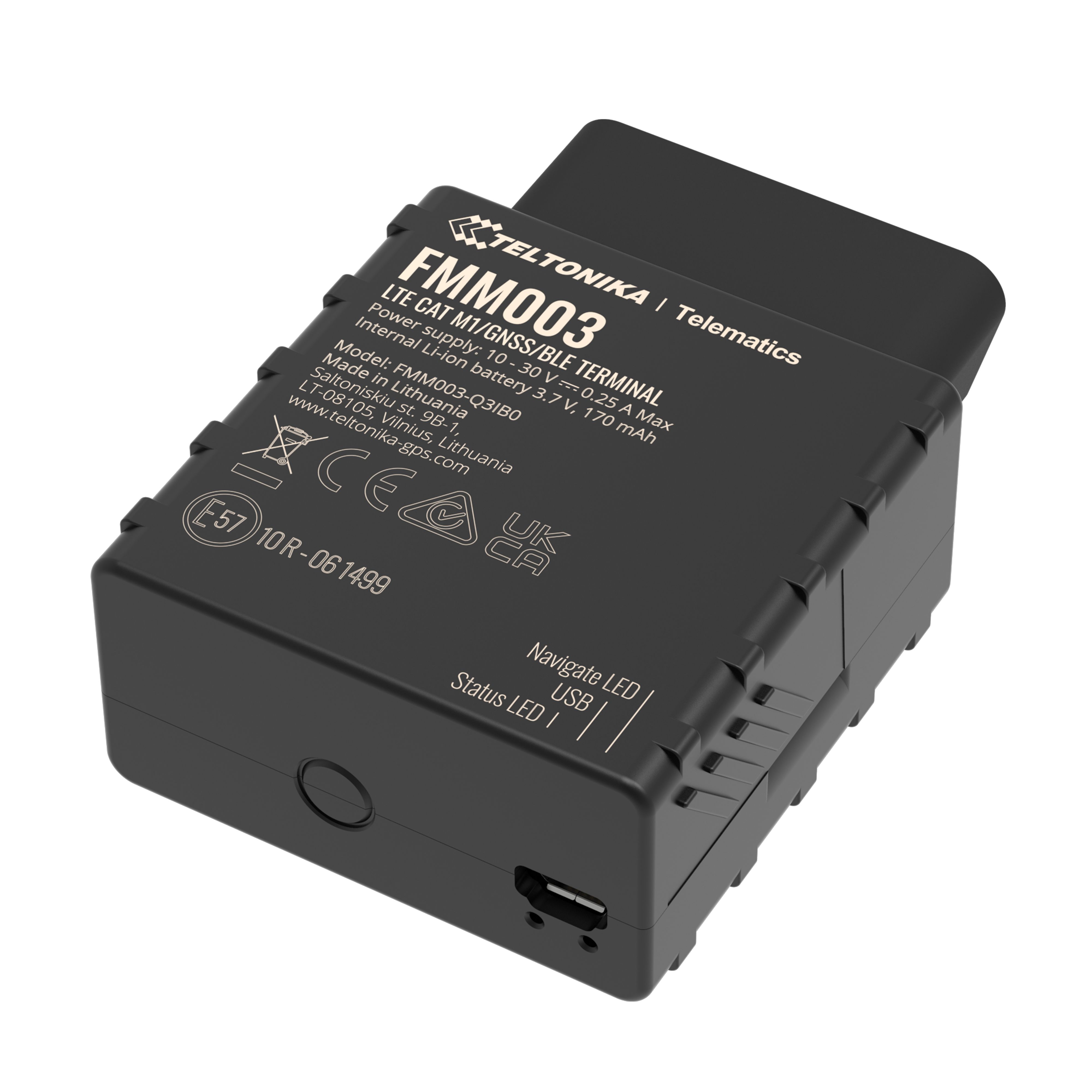

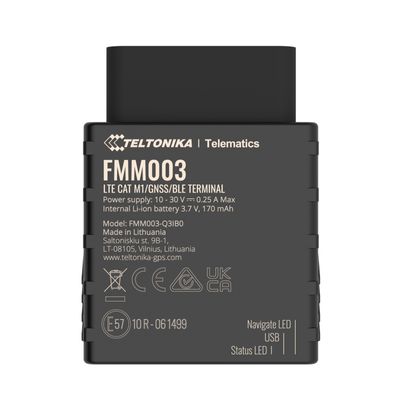

FMM003 is a tracking device equipped with GNSS and GSM connectivity, capable of collecting the device coordinates and transmitting them to a server via the GSM network. The device is ideal for applications that require locating remote assets. FMM003 is an advanced plug and play LTE CAT1 device designed for next-generation OBD applications.

The main feature of the FMM003 is its ability to read OEM parameters (PIDs) via the OBD port. With this device you can read information about the actual odometer and actual fuel level. In addition, the device is delivered with (see the list below!) supported vehicles and a data list, so you no longer have to guess — now you know which data you can read from a specific vehicle. It is a perfect tracking device for a variety of use cases — such as light commercial vehicle fleet management, driver logbooks, insurance telematics (UBI), car rental and leasing, etc.

Technical specifications

Module

• Name: Quectel BG95-M3, Teltonika TM2500
• Technology: LTE Cat M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: 33-channel
• Tracking sensitivity: -165 dBM
• Accuracy: < 2.5 m CEP
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s
• Speed accuracy: < 0.1 m/s (maximum +/- 15% error)

Cellular network

• 2G frequencies: BG95: B2/B3/B5/B8
• 4G LTE CAT M1 frequencies: BG95: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85 LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• Data transfer: BG95: LTE: Max. 588 Kbps (DL)/Max. 1119 Kbps (UL) GPRS: Max. 107 Kbps (DL)/Max. 85.6 Kbps (UL)
• Supported data format: SMS (text/data)

Power

• Supply voltage range: 10 - 30 V DC with overvoltage protection
• Backup battery: 170 mAh lithium-ion battery (0.63 Wh)

Bluetooth

• Specification: 4.0 + LE
• Supported devices: Temperature and humidity sensor, Inateck barcode scanner, general BLE sensor support

Interfaces

• Connection: OBDII connector
• GNSS antenna: Internal high-gain antenna
• Cellular network antenna: Internal high-gain GSM antenna
• USB: 2.0 Micro-USB
• LED indicator: 2 state LED lights
• SIM card: Micro-SIM
• Memory: 128 MB internal flash memory

Physical characteristics

• Dimensions: 67.2 x 49.6 x 25 mm (W x L x H)
• Weight: 63 g

Operating environment

• Operating temperature (with battery): -40 °C - +85 °C
• Storage temperature (without battery): -40 °C - +85 °C
• Operating humidity: 5% - 95%, non-condensing
• Ingress protection: IP41
• Battery charging temperature: 0 °C - +45 °C
• Battery discharging temperature: -20 °C - +60 °C
• Battery storage temperature: -20 °C - +35 °C for 1 month; -20 °C - +30 °C for 6 months

Features

• Sensors: Accelerometer
• Scenarios: Eco driving, Overspeed detection, Tamper detection, GNSS fuel gauge, Excessive idling detection, Disconnection detection, Towing detection, Shock/impact detection, Automatic geofence, Manual geofence, Trip
• Power modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile app (configuration)
• SMS: Configuration, Events, Diagnostics
• GPRS commands: Configuration, Diagnostics
• Time synchronization: GPS, NITZ, NTP
• Fuel monitoring: OBD II
• Engine start detection: Accelerometer, External power voltage
