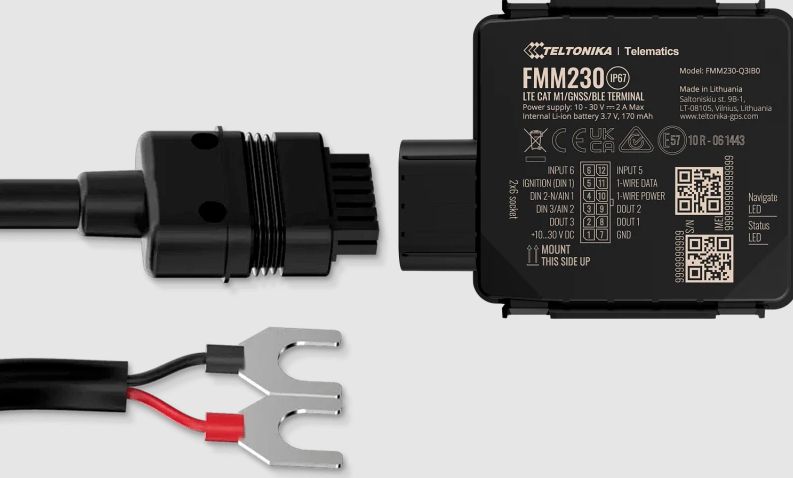

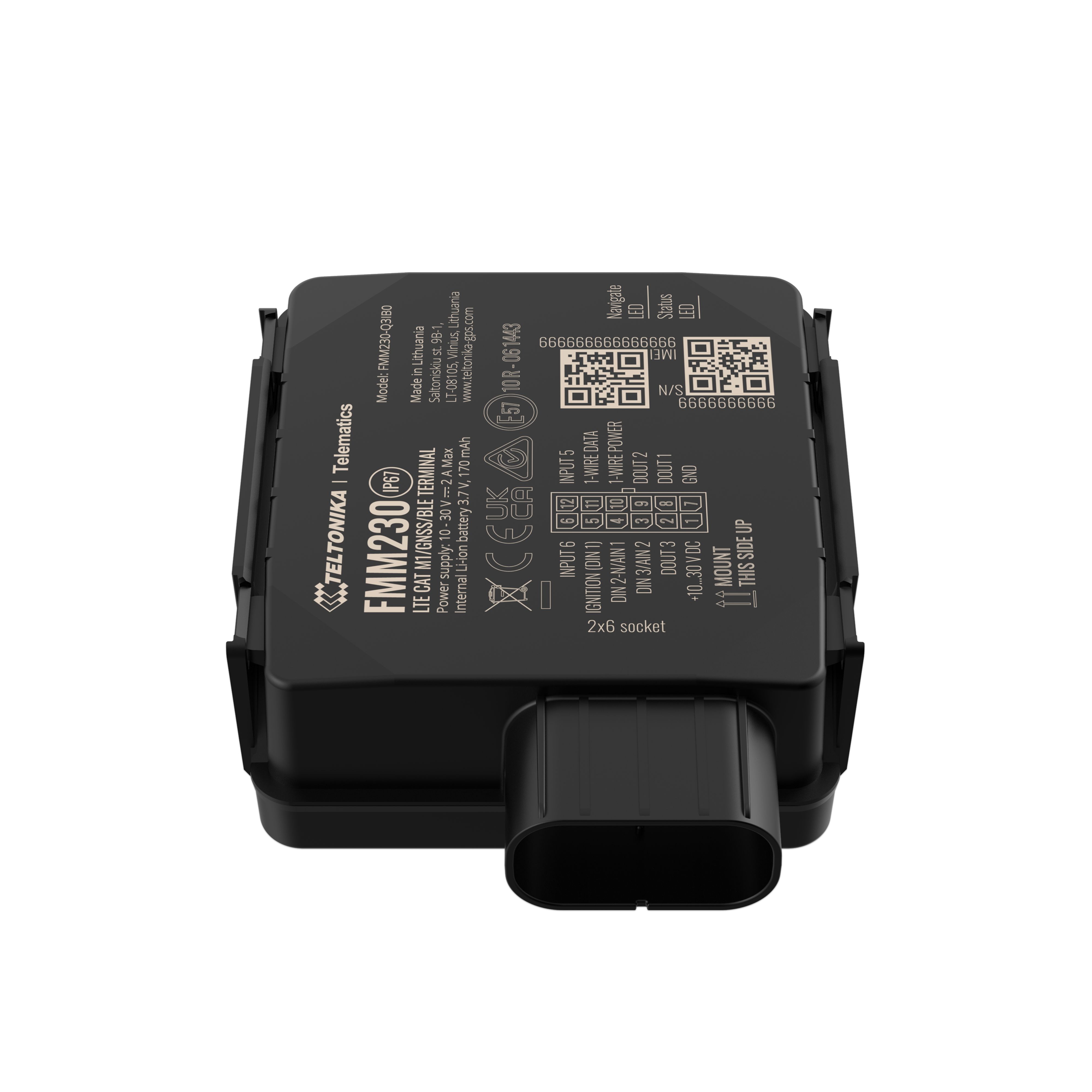

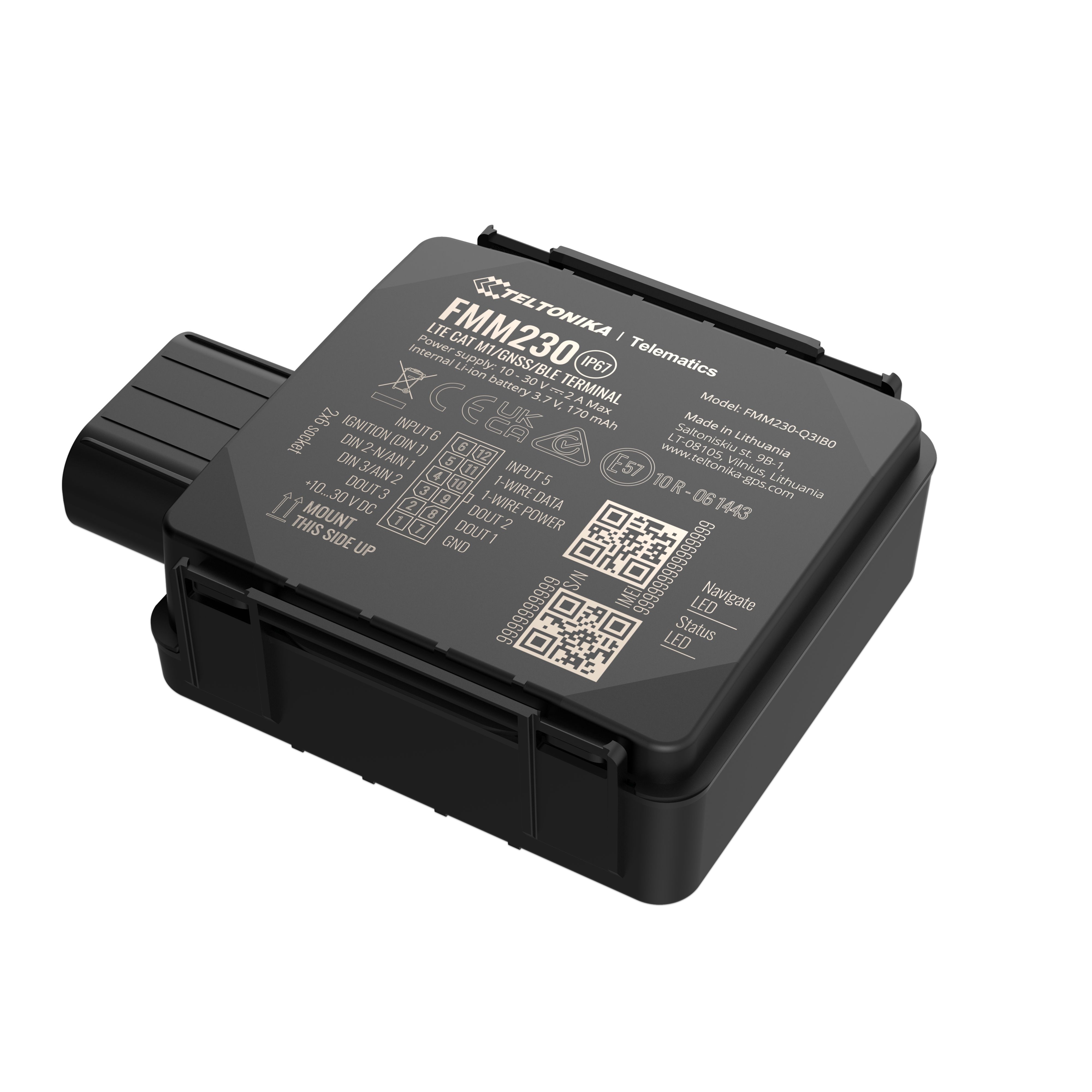

Teltonika FMM230 is a waterproof LTE and NB-IoT GPS tracker with a flexible input configuration. The device features eco driving, overspeed detection, excessive idling detection, immobilizer, iButton read notification, tamper detection, towing detection, crash detection, automatic geofencing, manual geofencing and other scenarios, configurable DIN/AIN/NIN for flexible remote monitoring and control, pulse inputs for reading fuel flow meter data, Bluetooth 4.0 + LE, IP67 enclosure, 170 mAh Li-Ion battery and much more.

Well suited for motorcycles, snowmobiles, ATVs, boats and other motor vehicles.

Technical specifications

Module

• Name: FMM230-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
• Technology: LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: 33-channel
• Tracking sensitivity: -165 dBM
• Accuracy: < 2.5 m CEP
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s

Cellular network

• 2G frequencies: BG95-M3: B2/B3/B5/B8
• 4G LTE CAT M1 frequencies: BG95: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85 LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• Data transfer: BG95: LTE: up to 588 Kbps (DL)/up to 1119 Kbps (UL) GPRS: up to 107 Kbps (DL)/up to 85.6 Kbps (UL)
• Data support: SMS (text/data)

Power

• Input voltage range: 10 - 30 V DC with surge protection
• Backup battery: 170 mAh lithium-ion battery (0.63 Wh)
• Internal fuse: 3A, 125V

Bluetooth

• Specification: 4.0 + LE
• Supported devices: Temperature and humidity sensor, Inateck barcode scanner, general BLE sensors support

Connections

• GNSS antenna: Internal high-gain antenna
• Cellular antenna: Internal high-gain GSM antenna
• Digital inputs: 3
• Negative inputs: 1 (digital input 2)
• Pulse inputs: 2 (digital input 1, digital input 2)
• USB: 2.0 Micro-USB
• LED indicators: 2 status LEDs
• SIM card: Micro-SIM or eSIM
• Memory: 128 MB internal flash memory

Physical characteristics

• Dimensions: 70.5 x 67.0 x 25.6 mm (L x W x H)
• Weight: 75 g

Operating environment

• Operating temperature (with battery): -20 °C - +40 °C
• Storage temperature (without battery): -20 °C - +85 °C
• IP rating: IP67
• Battery charge temperature: 0 °C - +45 °C
• Battery discharge temperature: -20 °C - +60 °C

Features

• Sensors: Accelerometer
• Scenarios: Eco driving, Overspeed detection, GNSS fuel meter, DOUT control via call, Excessive idling detection, Immobilizer, iButton read notification, Tamper detection, Towing detection, Crash detection, Automatic geofence, Manual geofence, Trip
• Sleep modes: GPS sleep, Online deep sleep, Deep sleep, Ultra deep sleep
• Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile app (configuration)
• SMS: Configuration, Events, DOUT control, Troubleshooting
• GPRS commands: Configuration, DOUT control, Troubleshooting
• Time synchronization: GPS, NITZ, NTP
• Ignition detection: Digital input 1, Accelerometer, External power voltage, Engine RPM (CAN adapters, OBDII dongle)
