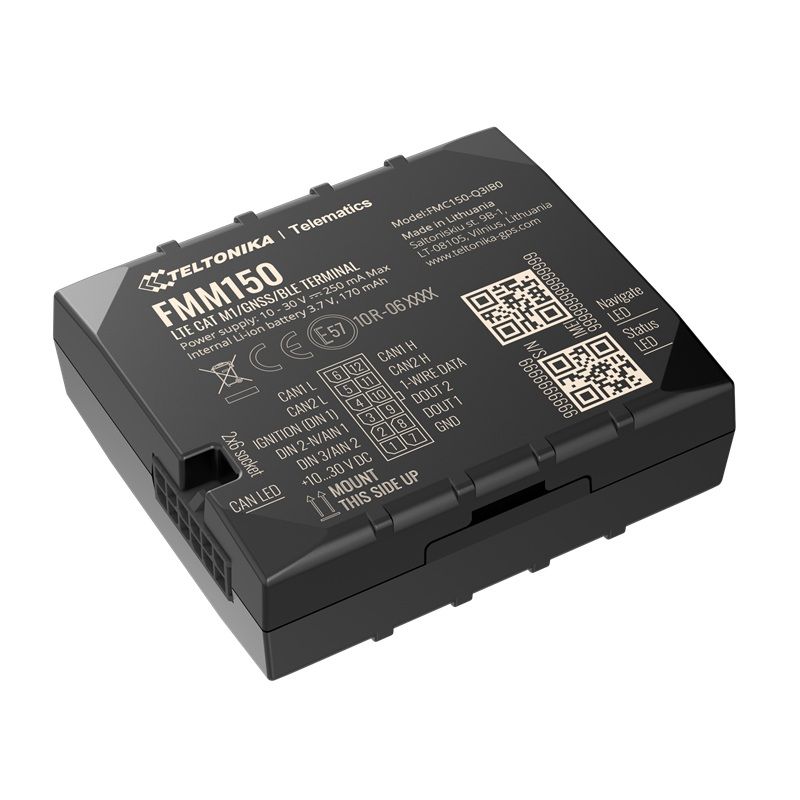

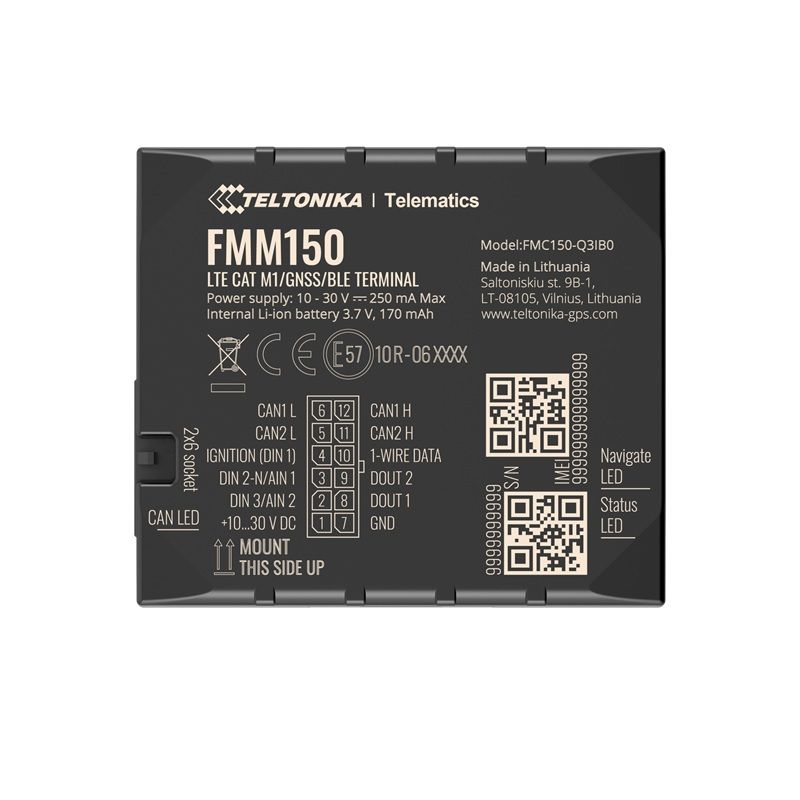

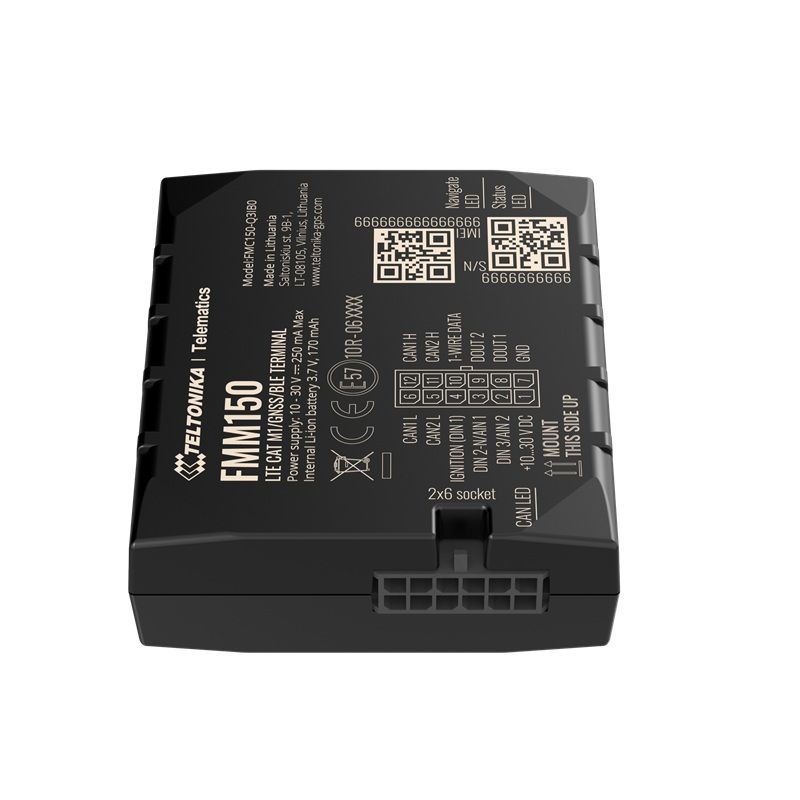

Teltonika FMM150 is an advanced 4G Cat M1 GNSS/GSM/Bluetooth GPS tracker with an integrated CAN data processor. The device supports CAN data reading for passenger cars, buses and trucks, CAN data reading for electric vehicles, Bluetooth 4.0 + LE for external devices and Low Energy sensors, configurable DIN/AIN for flexible remote monitoring and control, a 170 mAh Li-Ion battery and much more.

Technical specifications

Module

• Name: Quectel BG95-M3, Teltonika TM2500
• Technology: LTE CAT M1/CAT NB1/EGPRS/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: L1 and L5 dual-band GNSS receiver
• Tracking sensitivity: -165 dBM
• Position accuracy: under 2.5 meters CEP
• Hot start: under 1 second
• Warm start: under 25 seconds
• Cold start: under 35 seconds

Mobile network

• 2G frequencies: BG95: B2/B3/B5/B8
• 4G LTE CAT M1 frequencies: BG95: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85 LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• Data transfer: BG95: LTE: up to 588 Kbps (DL)/up to 1119 Kbps (UL) GPRS: up to 107 Kbps (DL)/up to 85.6 Kbps (UL)
• Supported data transfer: SMS (text/data)

Power supply

• Input voltage range: 10–30 V DC with overvoltage protection and reverse polarity protection
• Internal backup battery: 170 mAh lithium-ion battery, 3.7 V (0.63 Wh)

Physical characteristics

• Dimensions: 104.1 x 76.8 x 31.5 mm (L x W x H)
• Weight: 197 g

Connections

• Digital inputs: 3
• Negative inputs: 1 (Digital input 2)
• Pulse inputs: 2 (Digital input 1, Digital input 2)
• Digital outputs: 2
• Analog inputs: 2
• CAN connectors: 2
• 1-Wire: 1 (1-Wire data)
• GNSS antenna: Internal high-gain antenna
• Cellular antenna: Internal GSM high-gain antenna
• USB: 2.0 Micro-USB
• LED indicators: 3
• SIM card: Micro-SIM or eSIM
• Memory: 128 MB internal flash memory
