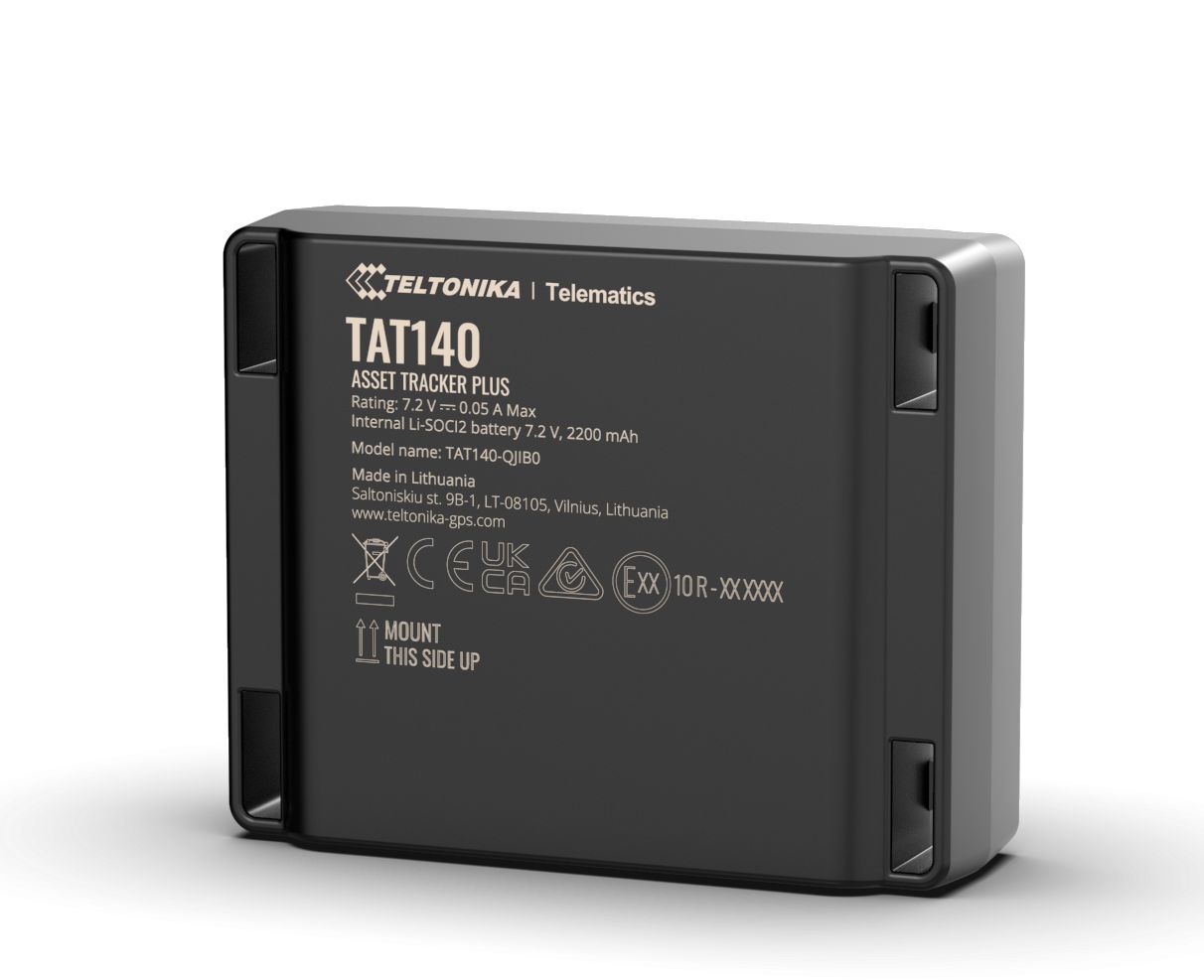

Teltonika TAT140 is a rugged tracking device that is compact and easy to install and has up to 3 years of battery life. The device features improved tamper detection, accelerometer sensing, GNSS and LBS positioning, recovery mode, movement detection tracking for stop / start events, backup tracking, static navigation, BLE 5.0, IP68 enclosure, 2200 mAh Li-SOCl2 battery, 4 mounting options and much more.

Technical specifications

Module

• Name: TAT140-QJIBO: Quectel EG915U-EU with Teltonika TM2500; TAT140-QKIB0: Quectel EG915U-LA with Teltonika TM2500
• Technology: LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU
• Receiver: 33-channel
• Tracking sensitivity: -165 dBM
• Location accuracy: less than 2.5 meters CEP

Mobile network

• 2G frequencies: TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8; TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8
• 4G LTE CAT M1 frequencies: TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28; TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer: LTE: LTE FDD: up to 10 Mbps (download)/up to 5 Mbps (upload) GSM: GPRS: up to 85.6 Kbps (download)/up to 85.6 Kbps (upload)
• Data support: SMS (text/data)

Power supply

• Internal backup power: Very low self-discharge Li-SOCl2 battery type, replaceable, non-rechargeable battery, 7.2V 2200mAh

Bluetooth

• Specification: 4.2 + LE
• Supported devices: EYE sensors, Beacons, general BLE sensor support

Physical characteristics

• Dimensions: 78 x 63 x 28 mm (L x W x H)
• Weight: 115 g (when using 2 cell batteries)

Connections

• GNSS antenna: Internal high gain antenna
• Cellular antenna: Internal high gain GSM antenna
• USB: 2.0 Micro-USB
• LED indicator: 1 status LED
• SIM card: Micro-SIM
• Memory: 128 MB internal flash memory

Operating environment

• Operating temperature (without battery): -20 °C - +60 °C
• Storage temperature: Recommended up to 30 °C
• Ingress protection: IP68
• Battery discharge temperature: -60 °C - +85 °C
