UPS devices protect against the most common power grid disturbances such as power outages and short- and long-term under- and overvoltages. They are ideal for protecting modems, routers, switches, PCs, workstations and small servers in home and office environments, as well as for protecting POS, automation, alarm and video surveillance systems in various applications.

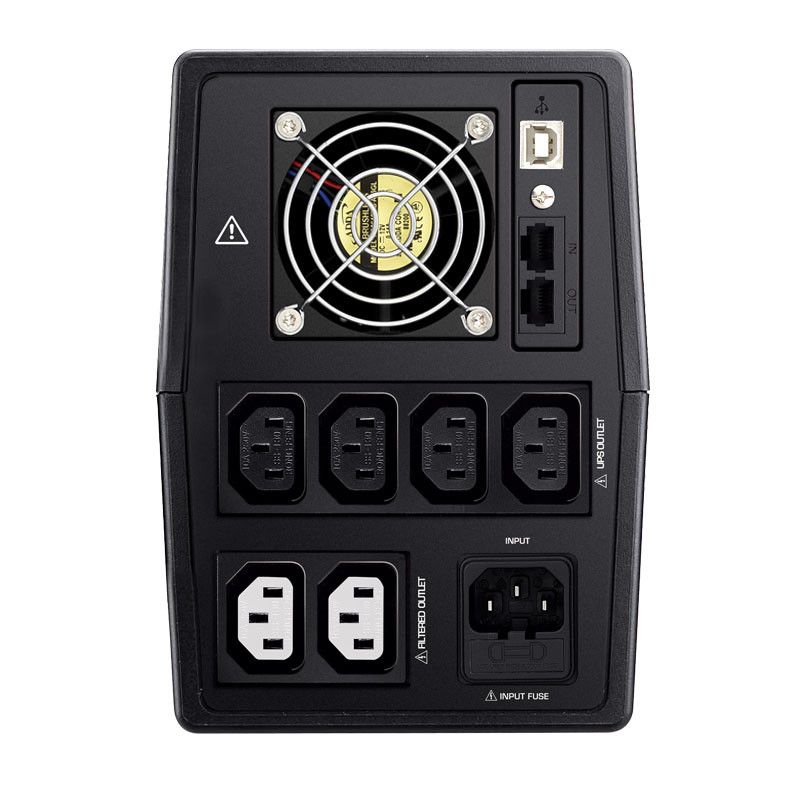

FGCERAPL2602IEC is equipped with four battery-backed IEC320-C13 outputs and two filtered outputs. In addition, it has an RJ11/45 connection for tele/data line protection and a USB port for data transfer between the UPS and a computer with management software. TecnoManager management software is available for free download. The device uses an IEC320-C14 mains inlet as the input connector. The device includes 2 pcs power cords with IEC320 appliance connectors for the protected equipment.

Features

• Input voltage 230 VAC
• Output voltage 230 VAC (modified sine wave)
• Load capacity 2600 VA (1820 W)
• Maintenance-free lead-acid batteries 2 pcs (12 V 11 Ah) backup time approx. 10–90 min
• IEC appliance inlet male C14 (input)
• 4 x IEC appliance outlet female C13 (UPS output)
• 2 x IEC appliance outlet female C13 (filtered output)
• 2 x RJ45 connector (surge protection for tele devices)
• USB-B connector (PC connection for management software)
